Maker Factory M5Stack GPS Module Bedienungsanleitung

Vorschau ausblenden Andere Handbücher für M5Stack GPS Module:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

BN 2108265
M5Stack GPS Module
EN
Quick Instructions
Version: 1
Delivery Content
Product
l
Grove cable
l
Development Resources
Development resources and additional product information are avail-
able from:
https://www.conrad.de/

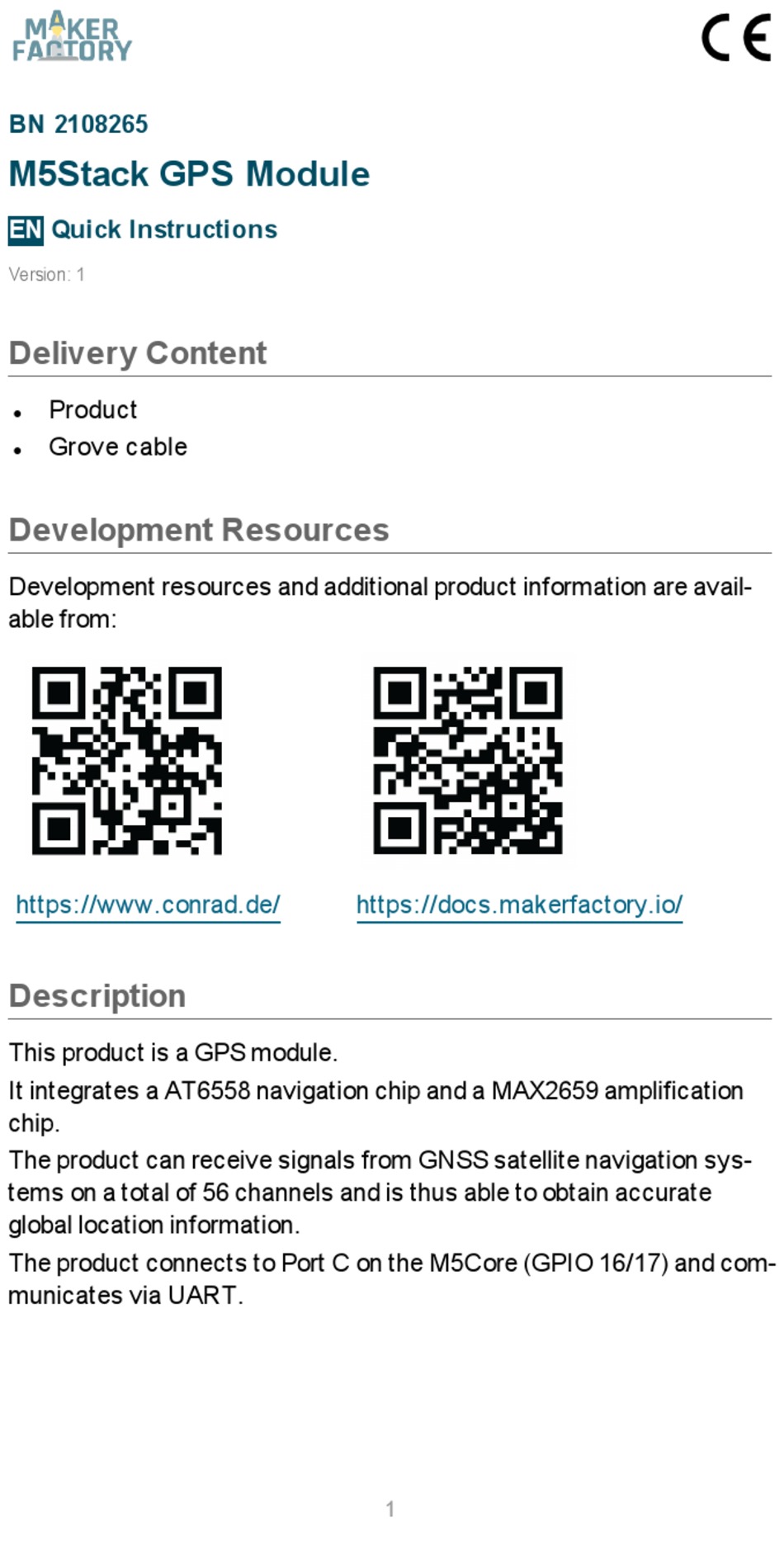

Description
This product is a GPS module.
It integrates a AT6558 navigation chip and a MAX2659 amplification
chip.
The product can receive signals from GNSS satellite navigation sys-
tems on a total of 56 channels and is thus able to obtain accurate
global location information.
The product connects to Port C on the M5Core (GPIO 16/17) and com-
municates via UART.
https://docs.makerfactory.io/
1

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Maker Factory M5Stack GPS Module

  • Seite 1 BN 2108265 M5Stack GPS Module Quick Instructions Version: 1 Delivery Content Product Grove cable Development Resources Development resources and additional product information are avail- able from: https://www.conrad.de/ https://docs.makerfactory.io/ Description This product is a GPS module. It integrates a AT6558 navigation chip and a MAX2659 amplification chip.
  • Seite 2: Specifications

    Features Channels: 56 Positioning accuracy: 2.5 meters (CEP50, open space) Update frequency: 1 - 10 Hz Supports Arduino® Two Lego compatible holes Pinout / Pin Map M5Core U2RXD (GPIO16) U2TXD (GPIO17) Signal Transmitter Signal Receiver Product (TXD) (RXD) Specifications Input Voltage 5 V/DC BDS/GPS dual mode con- tinuous operation: <23 mA (at...
  • Seite 3: Declaration Of Conformity (Doc)

    Supports D-GNSS differential positioning. Channels Position Accuracy 2.5 m (CEP50, open space) Update Frequency 1 - 10 Hz Altitude (max.) 1800 m Speed (max.) 515 m/s Acceleration ≤ 4G Tracking: -162 dBm Sensitivity Capture: -148 dBm Cold start: -146 dBm Cold start: 35 s Start Time Warm start: 32 s...
  • Seite 4: Legal Notice

    Disposal Electronic devices are recyclable waste and must not be dis- posed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines. You thus fulfill your statutory obligations and contribute to the pro- tection of the environment.
  • Seite 5: Ressourcen Für Entwickler

    BN 2108265 M5Stack GPS-Modul Kurzanleitung Version: 1 Lieferumfang Produkt Grove Kabel Ressourcen für Entwickler Ressourcen für Entwickler und zusätzliche Informationen zum Pro- dukt sind verfügbar über: https://www.conrad.de/ https://docs.makerfactory.io/ Beschreibung Dieses Produkt ist ein GPS-Modul. Es integriert einen AT6558 Navigationschip und einen MAX2659 Ver- stärker.
  • Seite 6: Technische Daten

    Produktmerkmale Kanäle: 56 Positionsgenauigkeit: 2,5 Meter (CEP50, Freifläche) Aktualisierung: 1 - 10 Hz Unterstützt Arduino® Zwei Lego kompatible Löcher Pinout / Pin Map M5Core U2RXD (GPIO16) U2TXD (GPIO17) Produkt Sender (TXD) Empfänger (RXD) Technische Daten Eingangsspannung 5 V/DC BDS/GPS Dual-Modus Dau- erbetrieb: <23 mA (bei 3.3 V) Stromaufnahme Standby: <10 uA (bei 3.3 V)
  • Seite 7: Konformitätserklärung (Doc)

    ferentielle Positionierung. Kanäle Genauigkeit 2,5 Meter (CEP50, Freifläche) Aktualisierung 1 - 10 Hz Höhenlage (max.) 1800 m Geschwindigkeit (max.) 515 m/s Beschleunigung ≤ 4G Tracking: -162 dBm Empfindlichkeit Capture: -148 dBm Kaltstart: -146 dBm Kaltstart: 35 s Startzeit Warmstart: 32 s Heißstart: 1 s Betriebstemperatur -40 bis +85 °C...
  • Seite 8 Entsorgung Elektronische Geräte sind Wertstoffe und gehören nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß den geltenden gesetzlichen Bestimmungen. Sie erfüllen damit die gesetzlichen Verpflichtungen und leisten Ihren Beitrag zum Umweltschutz. Impressum Dies ist eine Publikation der Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
