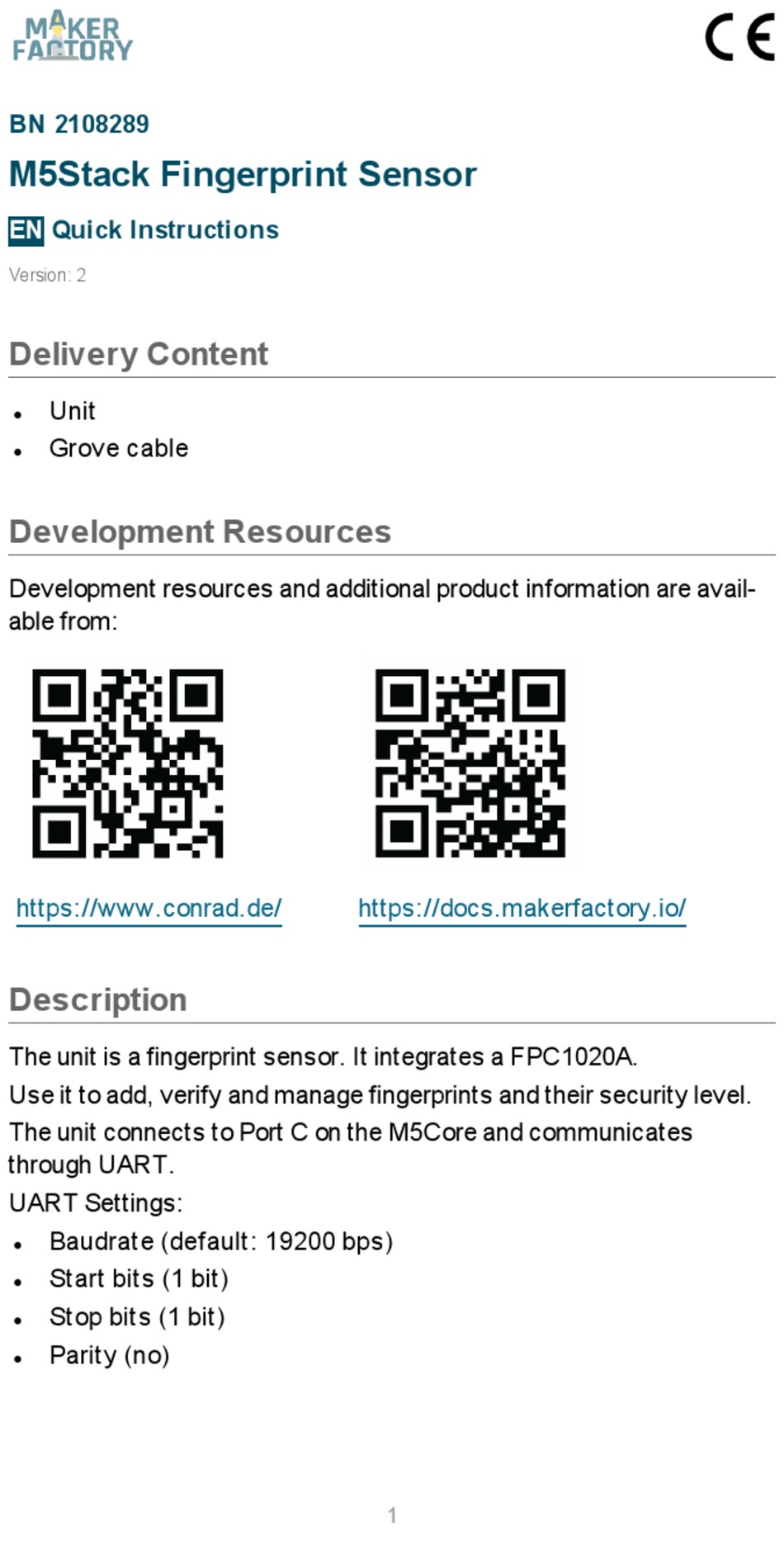

M5Stack Fingerprint Sensor
EN
Quick Instructions
Version: 2
Delivery Content
Unit
l
Grove cable
l
Development Resources
Development resources and additional product information are avail-
able from:
https://www.conrad.de/
Description
The unit is a fingerprint sensor. It integrates a FPC1020A.
Use it to add, verify and manage fingerprints and their security level.
The unit connects to Port C on the M5Core and communicates
through UART.
UART Settings:
Baudrate (default: 19200 bps)
l
Start bits (1 bit)
l
Stop bits (1 bit)
l
Parity (no)
l
https://docs.makerfactory.io/
1

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Maker Factory M5Stack

  • Seite 1 BN 2108289 M5Stack Fingerprint Sensor Quick Instructions Version: 2 Delivery Content Unit Grove cable Development Resources Development resources and additional product information are avail- able from: https://www.conrad.de/ https://docs.makerfactory.io/ Description The unit is a fingerprint sensor. It integrates a FPC1020A. Use it to add, verify and manage fingerprints and their security level.
  • Seite 2: Specifications

    Applications Attendance Recording Fingerprint Locker Pinout / Pin Map M5Core U2RXD U2TXD Unit Specifications Input Voltage 5 V/DC Protocol UART Finger print capacity <0.001 % False acceptance rate (Security Level: 3) <0.1 % False rejection rate (Security Level: 3) 1:1 Verification Comparison mode 1:N Identification Security level...
  • Seite 3: Legal Notice

    Operating humidity 20 - 80 % RH 48 x 24 x 8 mm Dimensions (approx.) (W x D x H ) Weight (approx.) 7.2 g Disposal Electronic devices are recyclable waste and must not be dis- posed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines.
  • Seite 4: Ressourcen Für Entwickler

    BN 2108289 M5Stack Fingerabdrucksensor Kurzanleitung Version: 2 Lieferumfang Produkt Grove Kabel Ressourcen für Entwickler Ressourcen für Entwickler und zusätzliche Informationen zum Pro- dukt sind verfügbar über: https://www.conrad.de/ https://docs.makerfactory.io/ Beschreibung Das Produkt ist ein Fingerabdrucksensor. Es integriert einen FPC1020A. Benutzen Sie es, um Fingerabdrücke und deren Sicherheitsstufe hin- zuzufügen, zu überprüfen und zu verwalten.
  • Seite 5: Technische Daten

    Anwendungen Anwesenheitserfassung Schließfach mit Fingerabdruck Pinout / Pin Map M5Core U2RXD U2TXD Produkt Technische Daten Eingangsspannung 5 V/DC Protokoll UART Fingerprint Kapazität <0.001 % Falschakzeptanzrate (Sicherheitsstufe: 3) <0.1 % Falschrückweisungsrate (Sicherheitsstufe: 3) 1:1 Verifikation Vergleichsmodus 1:N Identifikation Sicherheitsstufe 1 - 5 (Grundeinstellung: 3) Ruhestrom <...
  • Seite 6 Betriebsfeuchtigkeit 20 - 80 % rF 48 x 24 x 8 mm Abmessungen (ca.) (B x T x H) Gewicht (ca.) 7,2 g Entsorgung Elektronische Geräte sind Wertstoffe und gehören nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß...
