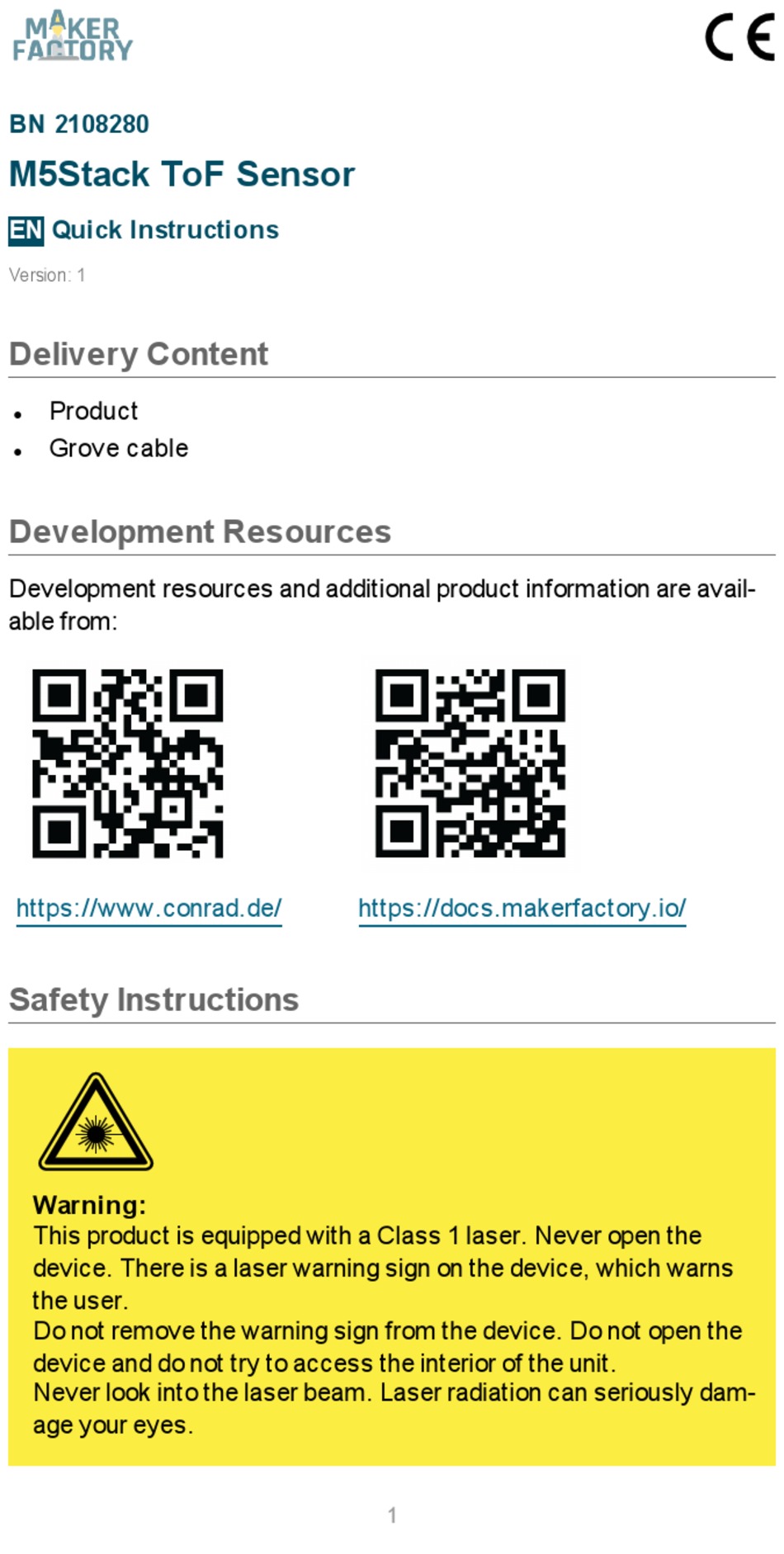

BN 2108280 M5Stack ToF Sensor Quick Instructions Version: 1 Delivery Content Product Grove cable Development Resources Development resources and additional product information are avail- able from: https://www.conrad.de/ https://docs.makerfactory.io/ Safety Instructions Warning: This product is equipped with a Class 1 laser. Never open the device.
Description This product is a distance sensor using TOF (time-of-flight) tech- niques to resolve the distance between two points. It integrates a VL53L0x providing accurate distance measurement. It employs a laser (invisible to the human eye). The product can measure absolute distances up to 2 m in less than 30 The product communicates with the M5Core via I2C (Address: 0x29).
Protocol I2C (Address: 0x29) 32.2 x 24.2 x 8.1 mm Dimensions (approx.) (W x D x H ) Weight (approx.) Disposal Electronic devices are recyclable waste and must not be dis- posed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines.
BN 2108280 M5Stack ToF Sensor Kurzanleitung Version: 1 Lieferumfang Produkt Grove Kabel Ressourcen für Entwickler Ressourcen für Entwickler und zusätzliche Informationen zum Pro- dukt sind verfügbar über: https://www.conrad.de/ https://docs.makerfactory.io/ Sicherheitshinweise Achtung: Dieses Produkt ist mit einem Laser der Klasse 1 ausgerüstet. Öff- nen Sie das Gerät niemals.
Blicken Sie nie in den Laserstrahl. Laserstrahlung kann zu Augen- verletzungen führen. Beschreibung Bei diesem Produkt handelt es sich um einen Abstandssensor, der TOF-Techniken (Time-of-Flight) verwendet, um den Abstand zwi- schen zwei Punkten zu bestimmen. Es integriert ein VL53L0x für genaue Entfernungsmessung. Es ver- wendet einen Laser (für das menschliche Auge unsichtbar).
Seite 6
Laserklasse Wellenlänge 941.5 nm Reichweite ≤ 2 m Ansprechzeit ≤ 30 ms Protokoll I2C (Adresse: 0x29) 32,2 x 24,2 x 8,1 mm Abmessungen (ca.) (B x T x H) Gewicht (ca.) Entsorgung Elektronische Geräte sind Wertstoffe und gehören nicht in den Hausmüll.
