BN 2108263

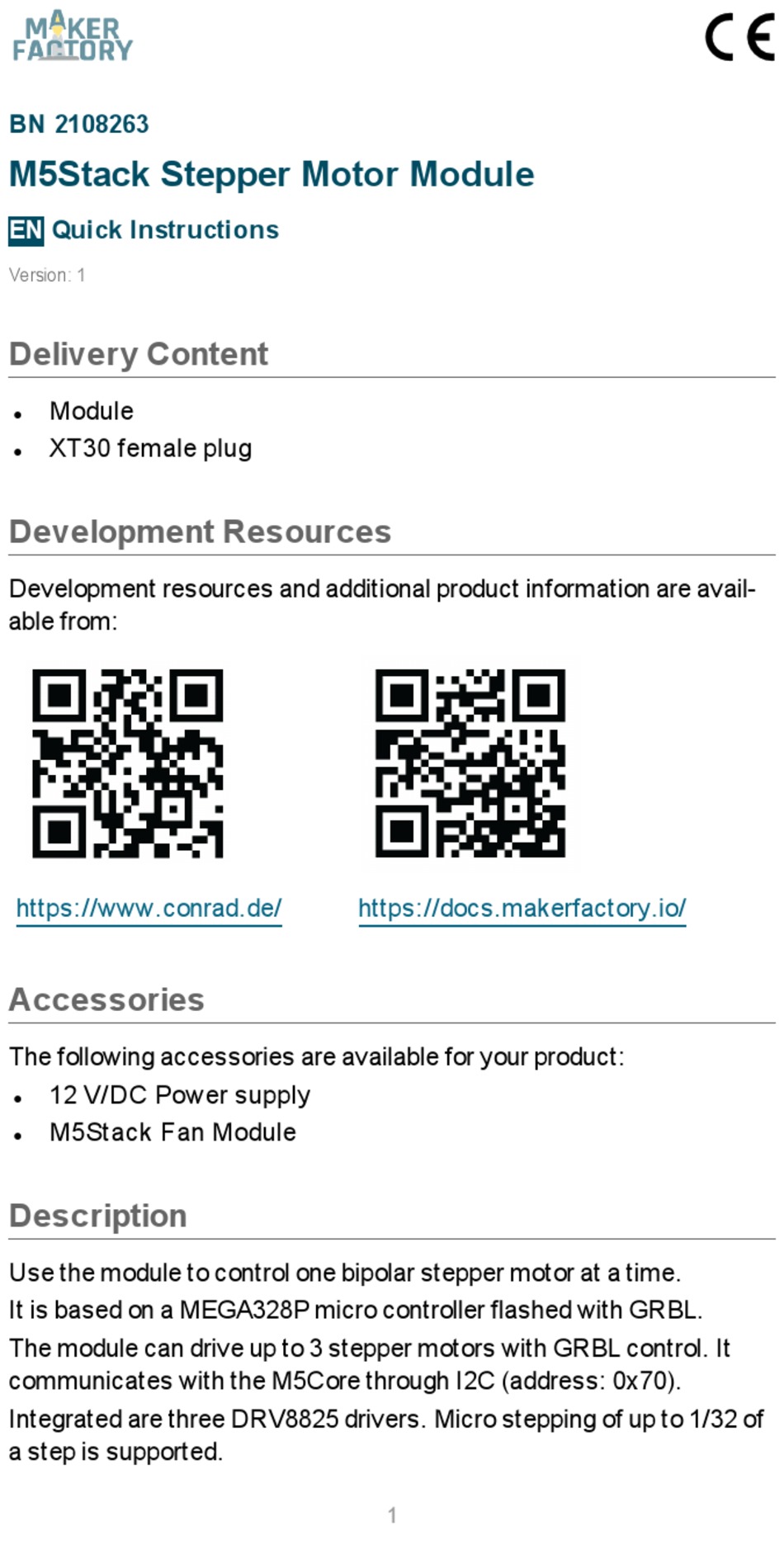

M5Stack Stepper Motor Module
EN
Quick Instructions
Version: 1
Delivery Content
Module
l
XT30 female plug
l
Development Resources
Development resources and additional product information are avail-
able from:
https://www.conrad.de/
Accessories
The following accessories are available for your product:
12 V/DC Power supply
l
M5Stack Fan Module
l
Description
Use the module to control one bipolar stepper motor at a time.
It is based on a MEGA328P micro controller flashed with GRBL.
The module can drive up to 3 stepper motors with GRBL control. It
communicates with the M5Core through I2C (address: 0x70).
Integrated are three DRV8825 drivers. Micro stepping of up to 1/32 of
a step is supported.
https://docs.makerfactory.io/
1

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Maker Factory M5Stack

  • Seite 1 BN 2108263 M5Stack Stepper Motor Module Quick Instructions Version: 1 Delivery Content Module XT30 female plug Development Resources Development resources and additional product information are avail- able from: https://www.conrad.de/ https://docs.makerfactory.io/ Accessories The following accessories are available for your product: 12 V/DC Power supply...
  • Seite 2: Specifications

    Applications DIY 3D Printer Simple Robot Arm Pinout / Pin Map Description Signal Pin Power supply Specifications Micro controller MEGA328P with GRBL Power input 9 - 24 V/DC, XT30 connector Drivers 3x DRV8825 Micro stepping 1/32 Protocol I2C (Address: 0x70) Dimensions (approx.) 54 x 54 x 13 mm (W x D x H ) Weight (approx.)
  • Seite 3: Legal Notice

    Legal Notice This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D- 92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data pro- cessing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
  • Seite 4: Ressourcen Für Entwickler

    BN 2108263 M5Stack Schrittmotor-Modul Kurzanleitung Version: 1 Lieferumfang Modul XT30 Stecker (weiblich) Ressourcen für Entwickler Ressourcen für Entwickler und zusätzliche Informationen zum Pro- dukt sind verfügbar über: https://www.conrad.de/ https://docs.makerfactory.io/ Zubehör Folgendes Zubehör steht für Ihr Produkt zur Verfügung. 12 V/DC Spannungsversorgung M5Stack Lüfter-Modul...
  • Seite 5: Technische Daten

    Integriert sind drei DRV8825-Treiber. Mikroschritte von bis zu 1/32 eines Schrittes sind möglich. Anwendungen DIY 3D Drucker Einfacher Roboterarm Pinout / Pin Map Beschreibung Signal Pin Stromversorgung Technische Daten Micro-Controller MEGA328P mit GRBL Eingangsspannung 9 - 24 V/DC, XT30 Anschluss Treiber 3x DRV8825 Mikro-Schritte...
  • Seite 6 Impressum Dies ist eine Publikation der Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). Alle Rechte einschließlich Übersetzung vorbehalten. Reproduktionen jeder Art, z. B. Fotokopie, Mikroverfilmung, oder die Erfassung in elek- tronischen Datenverarbeitungsanlagen, bedürfen der schriftlichen Genehmigung des Herausgebers. Nachdruck, auch auszugsweise, verboten.
