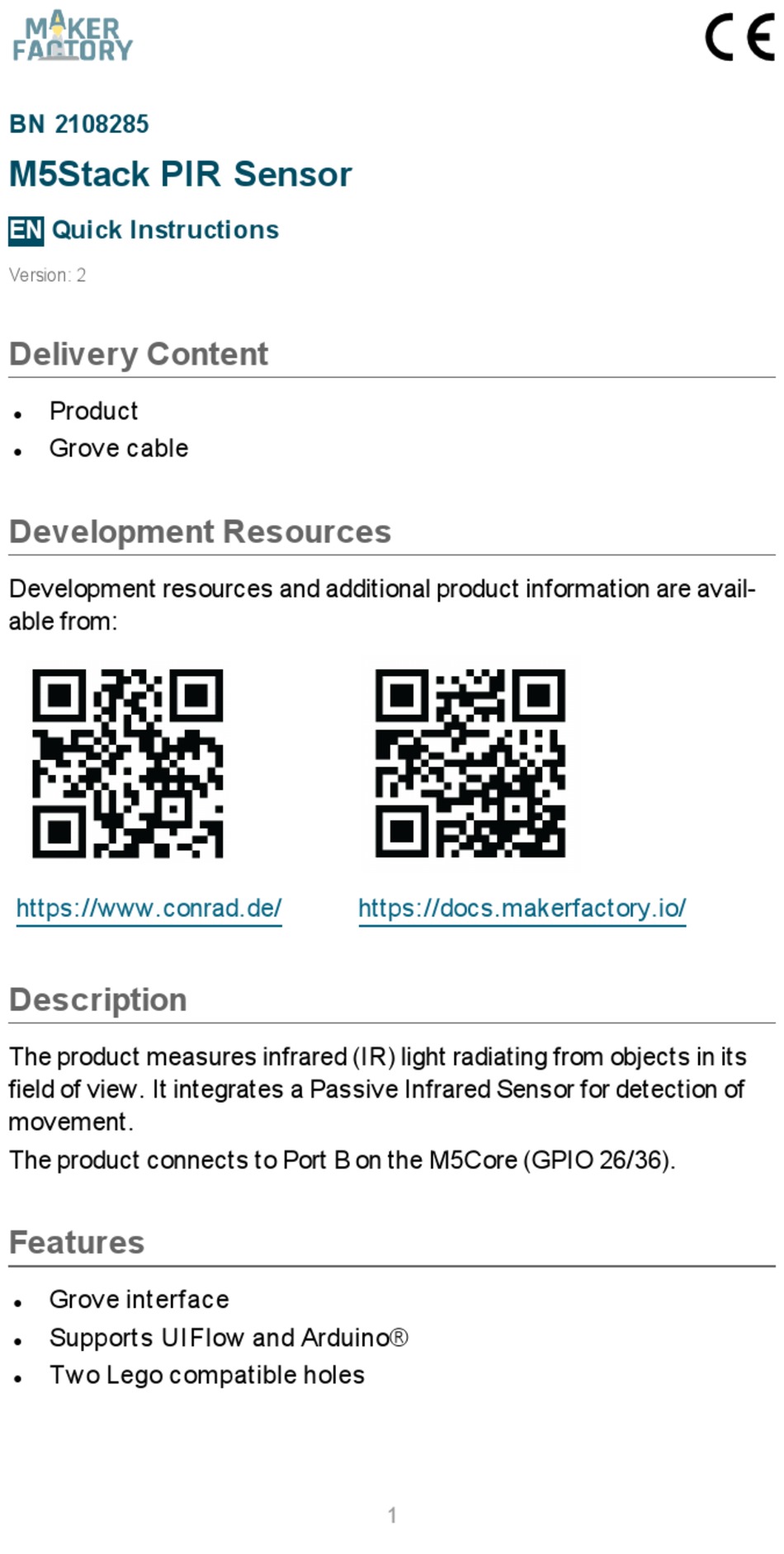

BN 2108285 M5Stack PIR Sensor Quick Instructions Version: 2 Delivery Content Product Grove cable Development Resources Development resources and additional product information are avail- able from: https://www.conrad.de/ https://docs.makerfactory.io/ Description The product measures infrared (IR) light radiating from objects in its field of view.
Applications Security Products Pinout / Pin Map M5Core GPIO36 GPIO26 Product Sensor Pin Specifications Input Voltage 5 V/DC Range max. 500 cm Delay Detection angle <100° Quiescent current <60 uA Operating temperature -20 to +80 °C 32.2 x 24.2 x 20 mm Dimensions (approx.) (W x D x H ) Weight (approx.)
Legal Notice This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D- 92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data pro- cessing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
BN 2108285 M5Stack Bewegungssensor Kurzanleitung Version: 2 Lieferumfang Produkt Grove Kabel Ressourcen für Entwickler Ressourcen für Entwickler und zusätzliche Informationen zum Pro- dukt sind verfügbar über: https://www.conrad.de/ https://docs.makerfactory.io/ Beschreibung Das Produkt misst Infrarotlicht im Sichtfeld. Das Produkt integriert einen passiven Infrarotsensor zur Bewegungserkennung.
Anwendungen Sicherheitsprodukte Pinout / Pin Map M5Core GPIO36 GPIO26 Produkt Sensorkontakt Technische Daten Eingangsspannung 5 V/DC Reichweite max. 500 cm Verzögerung Erfassungswinkel <100° Ruhestrom <60 uA Betriebstemperatur -20 bis +80 °C 32,2 x 24,2 x 20 mm Abmessungen (ca.) (B x T x H) Gewicht (ca.) 4,9 g Entsorgung...
Seite 6
Impressum Dies ist eine Publikation der Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). Alle Rechte einschließlich Übersetzung vorbehalten. Reproduktionen jeder Art, z. B. Fotokopie, Mikroverfilmung, oder die Erfassung in elek- tronischen Datenverarbeitungsanlagen, bedürfen der schriftlichen Genehmigung des Herausgebers. Nachdruck, auch auszugsweise, verboten.
