ECO-DIM.05
Input voltage:
Frequency:
Maximum wattage:
Minimum wattage:
Dimming technology:
Dimmable LED Bulbs:
Lamps with electronic transformers: 100W max. per group
Halogen and light bulbs:
Suitable brands of cover material:
√ Berker by Hager
√ Busch-Jaeger
√ GIRA
√ JUNG
√ Merten by Schneider
√ PEHA
*
Suitable for all brands of duo cover material with D-shaped hole. If existing
covermaterial does not have a D-shaped hole, EcoDim also offers dimmer rotary
buttons (incl. secondary plate and front panel) which are suitable for single and
multiple frames.
Suitable for:
- Suitable for new installations and retrofit bulbs.
- Two-wire connection - no neutral wire needed.
- Soft start system for longer lifespan of LED bulbs.
- Built-in protection against short circuits, overloads and extreme
temperatures.
220-240V AC
50Hz
2 x 100W LED per group
0W
{hase cut-off (R,C Trailing
edge)
2 x 0-100W
100W max. per group
:

Installation

1 2 3 4 5
N
1 2 3 4 5 1 2 3

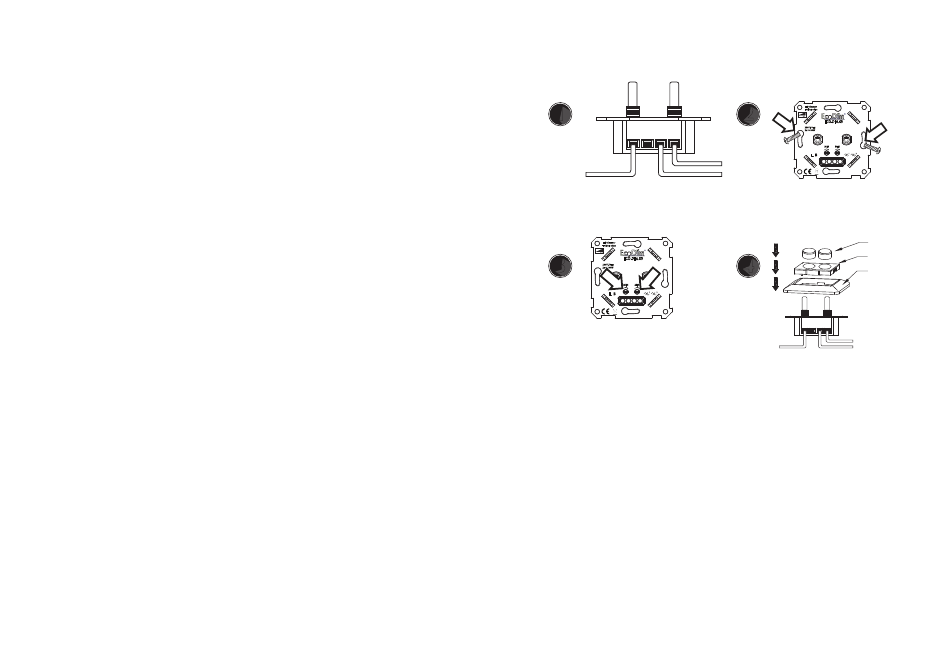

Step 1: Always make sure that the electricity is switched off
during installation. Then connect the power wires as shown in the
'Connection diagram' .
Step 2: Now install the dimmer in the flush-mounted box.
Step 3: Switch on the electricity again. Turn on the connected
lamps by pressing the dimmer button. Now turn the dimmer knob
all the way to the left and set the minimum light with the MIN.
adjust- ment options on the dimmer. You can adjust this with a
screwdriver. Adjust the lamps so that they remain steady.
Step 4: Replace the cover frame and the dimmer knob on the
dimmer.
1 2 3 4 5
L
1
L 2
Rotary Knobs
4 5 Secondary Plate
Front Panel
L 1
N
L 2
