ECO-DIM.09
Input voltage
Load wattage
Suitable for
Type of dimmer
Operation
Working temperature
Dimensions
Weight
√ 0-50W LED
√ Phase cut (R, C)
√ Optimal dimmability and light stability
√ MIN. and MAX. adjustment
√ Protection against interference signals
√ Noiseless dimming
√ Soft start system
√ Press / rotary knob
Floor dimmer with rotary knob and both MIN and MAX adjustment. This
allows you to get the best dimmability from every LED lamp. In addition, you
can simply use the well-known push / turn knob (instead of a push button).
Much more user-friendly to operate!
√ Overload Protection
√ Short Circuit Protection
√ Over Temperature Protection
220-240V, 50Hz
0-50W LED 10-100W halogen lamps/
light bulbs
LEDs, halogen lamps, light bulbs
R,C Phase cut
Push-turn button
max. 35°C
80.5mm, H 34.1mm
46,49gr.

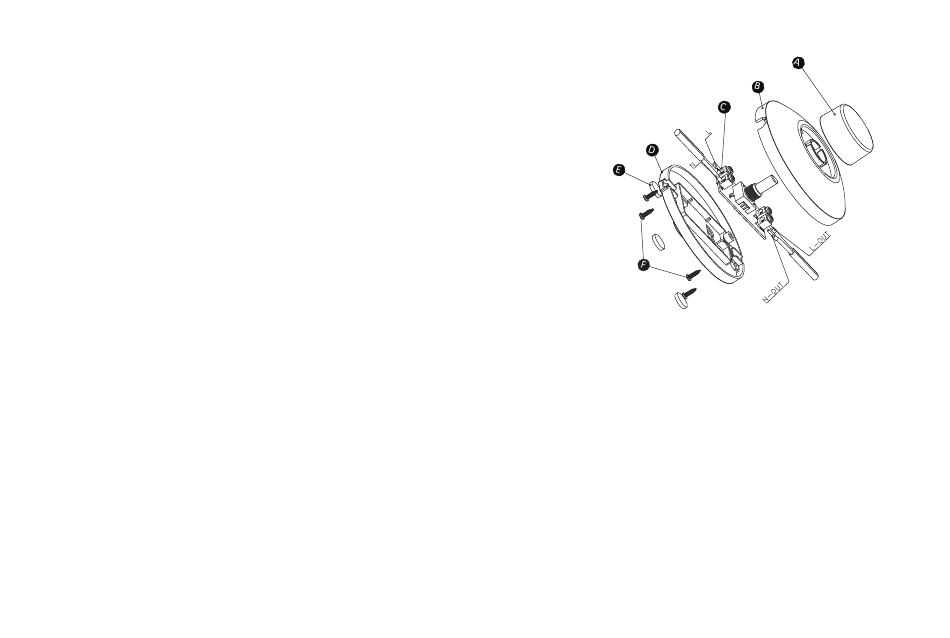

Installation

Step 1: Loosen the screws in the bottom of the floor dimmer (F)
Step 2: Remove the dimmer button and the top of the floor dimmer
(A, B)
Step 3: Loosen the screws (input side) to be able to attach the
installation wire later (C)
Step 4: Strip the wires to provide good contacts
Step 5: Place wires L (brown) and N (blue) in the connections (C)
Step 6: Screw the wires into the connections (C)
Step 7: Now repeat steps 3 to 6 for the output side (connection of
the cord to the lamp)
Step 8 Check if the wires are securely tightened
Step 9: Put part D (bottom) and part B (top) together again
Step 10: Tighten the screws in the bottom (F)
Step 11: Place the dimmer knob back on to dimmer pin (A)
