4.14 Installation of unlocking wire rope

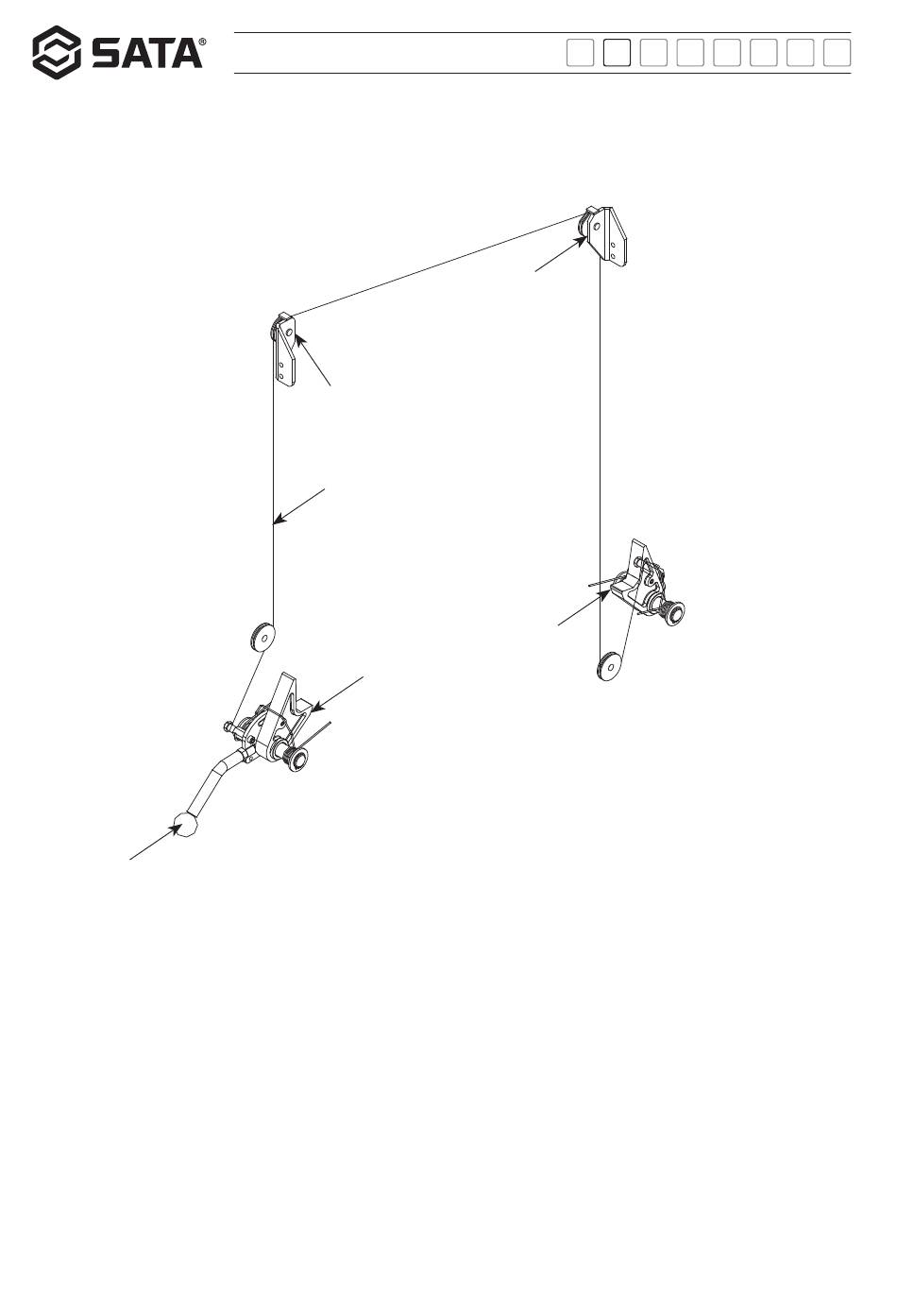

The installation diagram of the unlocking wire rope is shown below:
Safety handle
Attention:
a. Adjust the wire rope until the locking status of the safety locks on the main and auxiliary posts are consistent.
b. Add general lithium base grease (GB7324-87) to the gap between the safety lock and the shaft. Ensure that the safety lock is safe
and reliable during normal use. If the safety lock cannot be reset, stop the machine immediately and resume operation after
troubleshooting.
c. The safety wire rope shall not be brought into contact with any stationary or moving parts in the post, except for the two fixed ends and
the rope sheave.
30
AE5101/AE5101-3
Safety rope sheave to frame A
Safety wire rope
Main post safety lock
中文
EN
Safety rope sheave to
frame B
Auxiliary post safety lock
