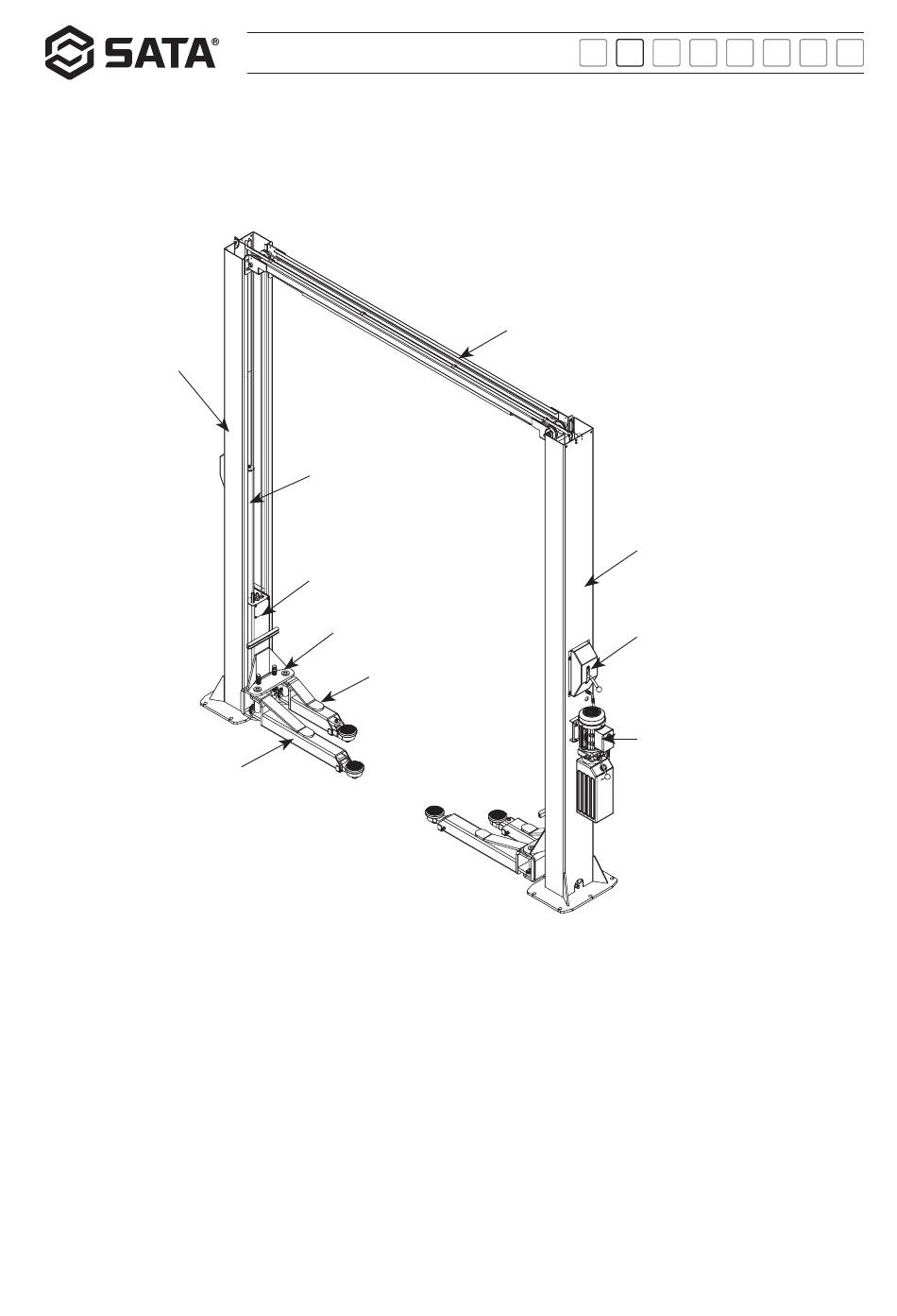

2.3 Description of main components
This machine mainly consists of the main post, auxiliary post, sliding table, bracket arm, arm lock, bracket arm lock, mechanical lock,
cylinder, power unit, gantry, etc. (See the figure below)
Auxiliary post
2-section bracket arm
Post: Basic component, carrying sliding table, cylinder and other drive devices;
Sliding table: Lifting component, installed inside the post, sliding up and down;
Bracket arm: Lifting component, installed together with the sliding table, having contact with the support point of the vehicle to lift the vehicle;
Arm lock: Safety component, locking the bracket arm to prevent it from rotation;
Mechanical lock: Safety component. When the hydraulic oil is drained, the safety block pushes the safety strip up to keep the sliding table
still;
Cylinder: Drive component. When the hydraulic station pumps the high pressure oil into the lower chamber of the cylinder, the
piston rod rises and drives the sliding table to rise via the chain;
Power unit: Power component. The motor drives the pump to suck oil via the filter strainer and pump high pressure oil;
Gantry: Bridging component. The balance wire rope, oil pipe, and safety rope are arranged from the main post to the auxiliary
post by way of the gantry, which also reduces the inward inclination of the two posts.
AE5101/AE5101-3
Oil cylinder
Sliding table
Arm lock
3-section bracket arm
中文
EN DE
Gantry
Main post
Mechanical safety lock
Power unit
