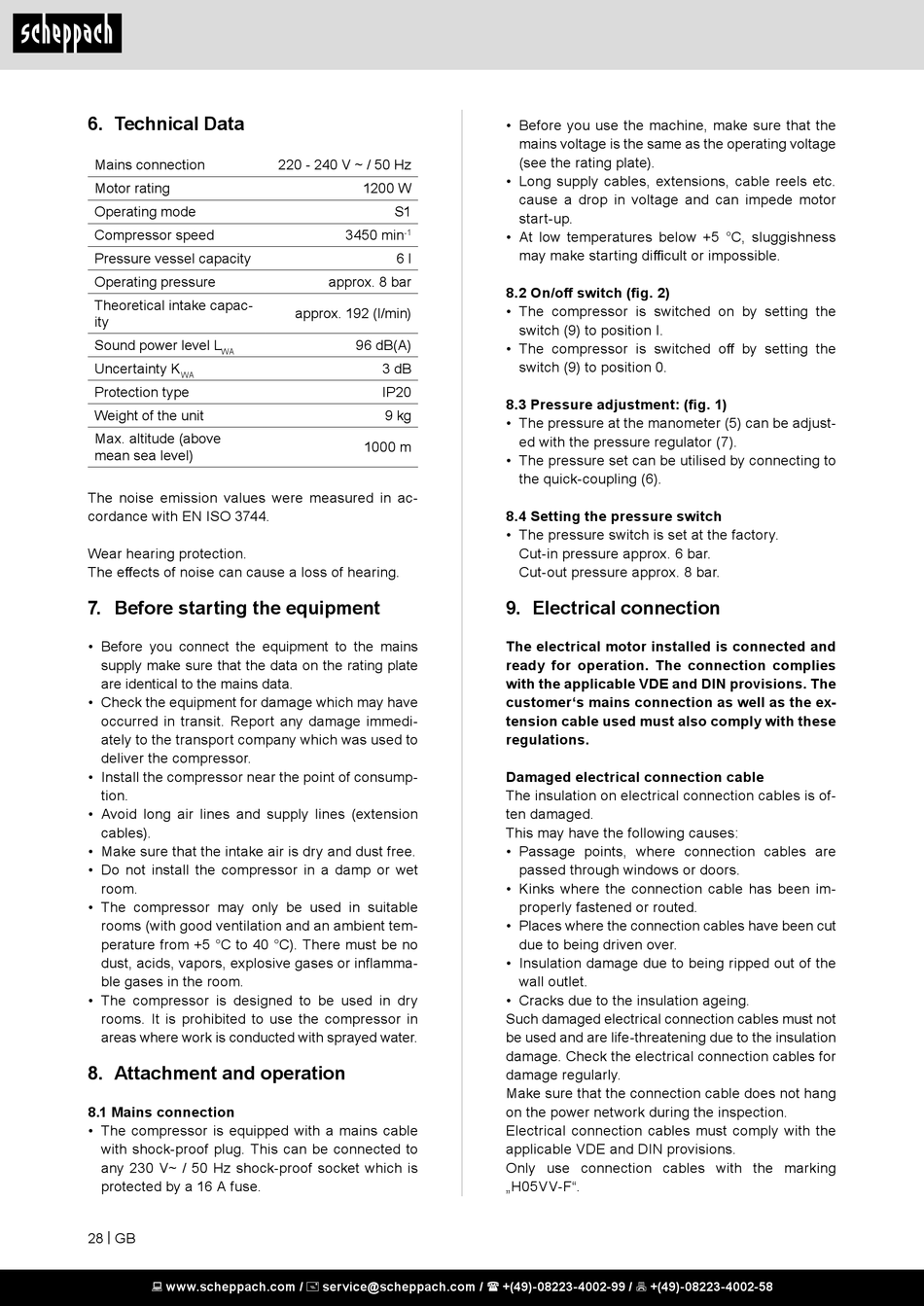

6. Technical Data

Mains connection

Motor rating
Operating mode
Compressor speed
Pressure vessel capacity
Operating pressure
Theoretical intake capac-
ity
Sound power level L
WA
Uncertainty K
WA
Protection type
Weight of the unit
Max. altitude (above
mean sea level)
The noise emission values were measured in ac-
cordance with EN ISO 3744.
Wear hearing protection.
The effects of noise can cause a loss of hearing.

7. Before starting the equipment

• Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
• Check the equipment for damage which may have
occurred in transit. Report any damage immedi-
ately to the transport company which was used to
deliver the compressor.
• Install the compressor near the point of consump-
tion.
• Avoid long air lines and supply lines (extension
cables).
• Make sure that the intake air is dry and dust free.
• Do not install the compressor in a damp or wet
room.
• The compressor may only be used in suitable
rooms (with good ventilation and an ambient tem-
perature from +5 °C to 40 °C). There must be no
dust, acids, vapors, explosive gases or inflamma-
ble gases in the room.
• The compressor is designed to be used in dry
rooms. It is prohibited to use the compressor in
areas where work is conducted with sprayed water.

8. Attachment and operation

8.1 Mains connection
• The compressor is equipped with a mains cable
with shock-proof plug. This can be connected to
any 230 V~ / 50 Hz shock-proof socket which is
protected by a 16 A fuse.
28 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
220 - 240 V ~ / 50 Hz
1200 W
S1
3450 min
-1
6 l
approx. 8 bar
approx. 192 (l/min)
96 dB(A)
3 dB
IP20
9 kg
1000 m
• Before you use the machine, make sure that the
mains voltage is the same as the operating voltage
(see the rating plate).
• Long supply cables, extensions, cable reels etc.
cause a drop in voltage and can impede motor
start-up.
• At low temperatures below +5 °C, sluggishness
may make starting difficult or impossible.
8.2 On/off switch (fig. 2)
• The compressor is switched on by setting the
switch (9) to position I.
• The compressor is switched off by setting the
switch (9) to position 0.
8.3 Pressure adjustment: (fig. 1)
• The pressure at the manometer (5) can be adjust-
ed with the pressure regulator (7).
• The pressure set can be utilised by connecting to
the quick-coupling (6).

8.4 Setting the pressure switch

• The pressure switch is set at the factory.
Cut-in pressure approx. 6 bar.
Cut-out pressure approx. 8 bar.

9. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions. The
customer's mains connection as well as the ex-
tension cable used must also comply with these
regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage. Check the electrical connection cables for
damage regularly.
Make sure that the connection cable does not hang
on the power network during the inspection.
Electrical connection cables must comply with the
applicable VDE and DIN provisions.
Only use connection cables with the marking
„H05VV-F".
