Connection sockets
14

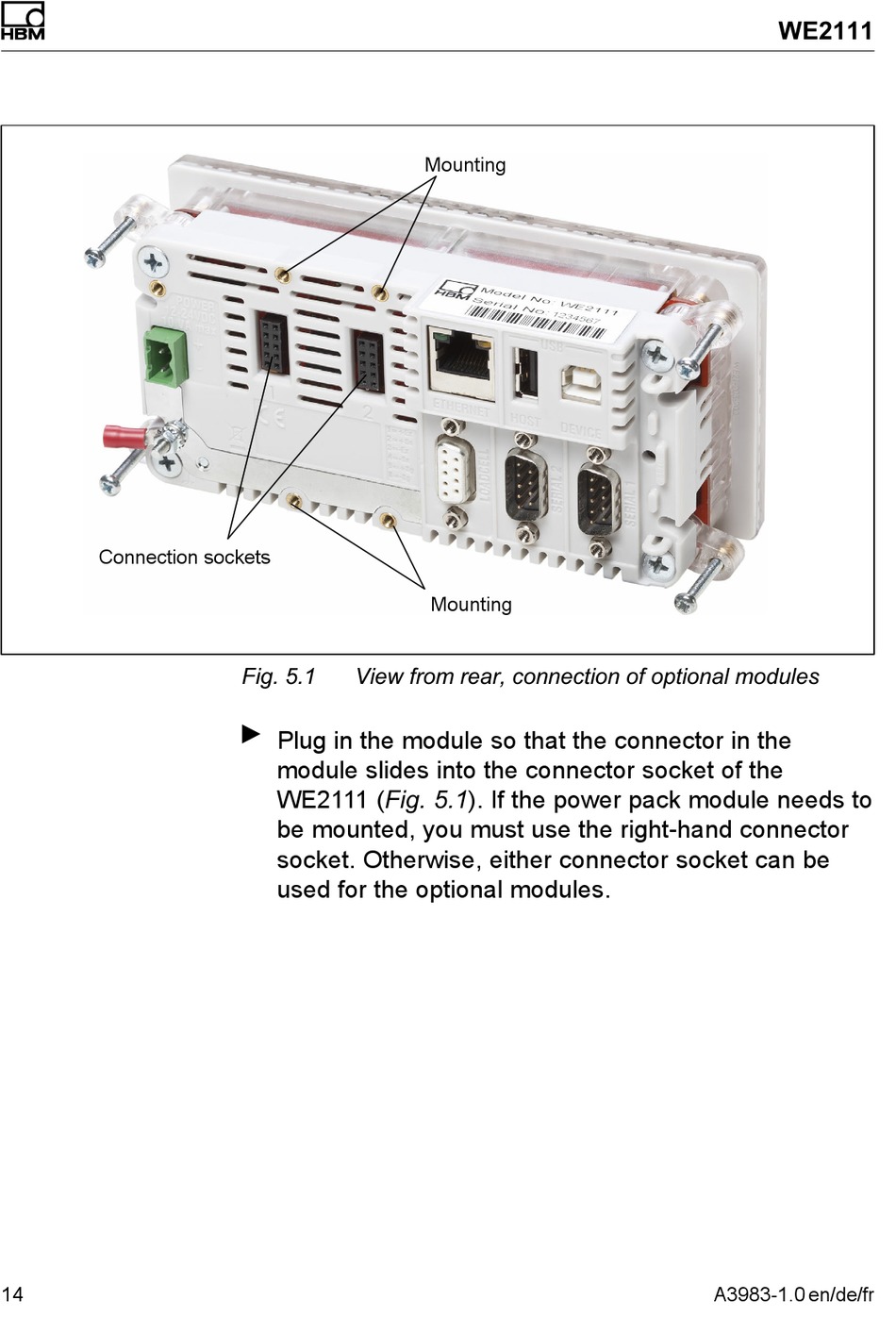

Fig. 5.1 View from rear, connection of optional modules
"
Plug in the module so that the connector in the
module slides into the connector socket of the
WE2111 (Fig. 5.1). If the power pack module needs to
be mounted, you must use the right-hand connector
socket. Otherwise, either connector socket can be
used for the optional modules.
