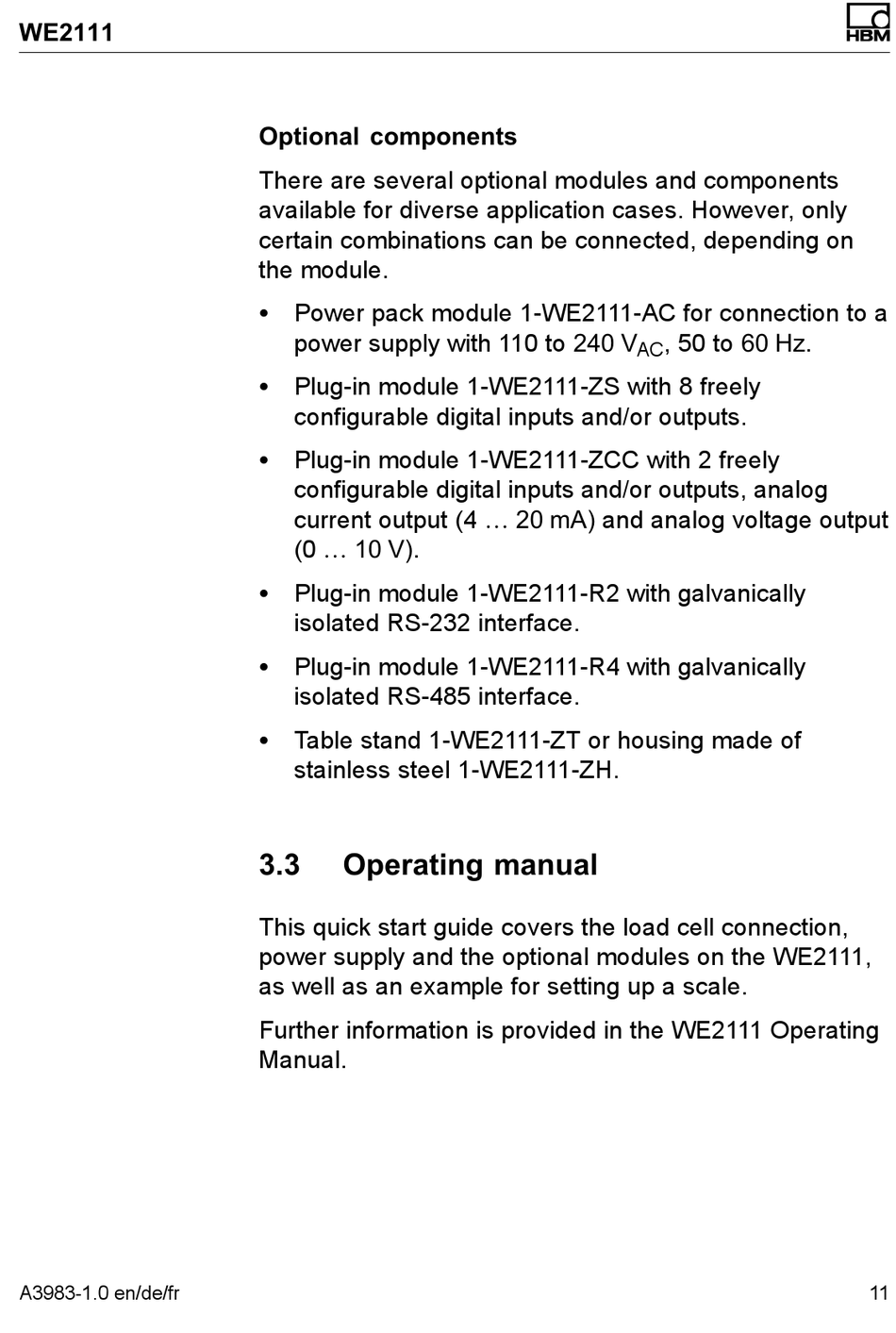

Optional components
There are several optional modules and components
available for diverse application cases. However, only
certain combinations can be connected, depending on
the module.
S Power pack module 1-WE2111-AC for connection to a
power supply with 110 to 240 V
S Plug-in module 1-WE2111-ZS with 8 freely
configurable digital inputs and/or outputs.
S Plug-in module 1-WE2111-ZCC with 2 freely
configurable digital inputs and/or outputs, analog
current output (4 ... 20 mA) and analog voltage output
(0 ... 10 V).
S Plug-in module 1-WE2111-R2 with galvanically
isolated RS-232 interface.
S Plug-in module 1-WE2111-R4 with galvanically
isolated RS-485 interface.
S Table stand 1-WE2111-ZT or housing made of
stainless steel 1-WE2111-ZH.
3.3

Operating manual

This quick start guide covers the load cell connection,
power supply and the optional modules on the WE2111,
as well as an example for setting up a scale.
Further information is provided in the WE2111 Operating
Manual.
, 50 to 60 Hz.
