Florenz 55 cm (21,5") LCD-TV

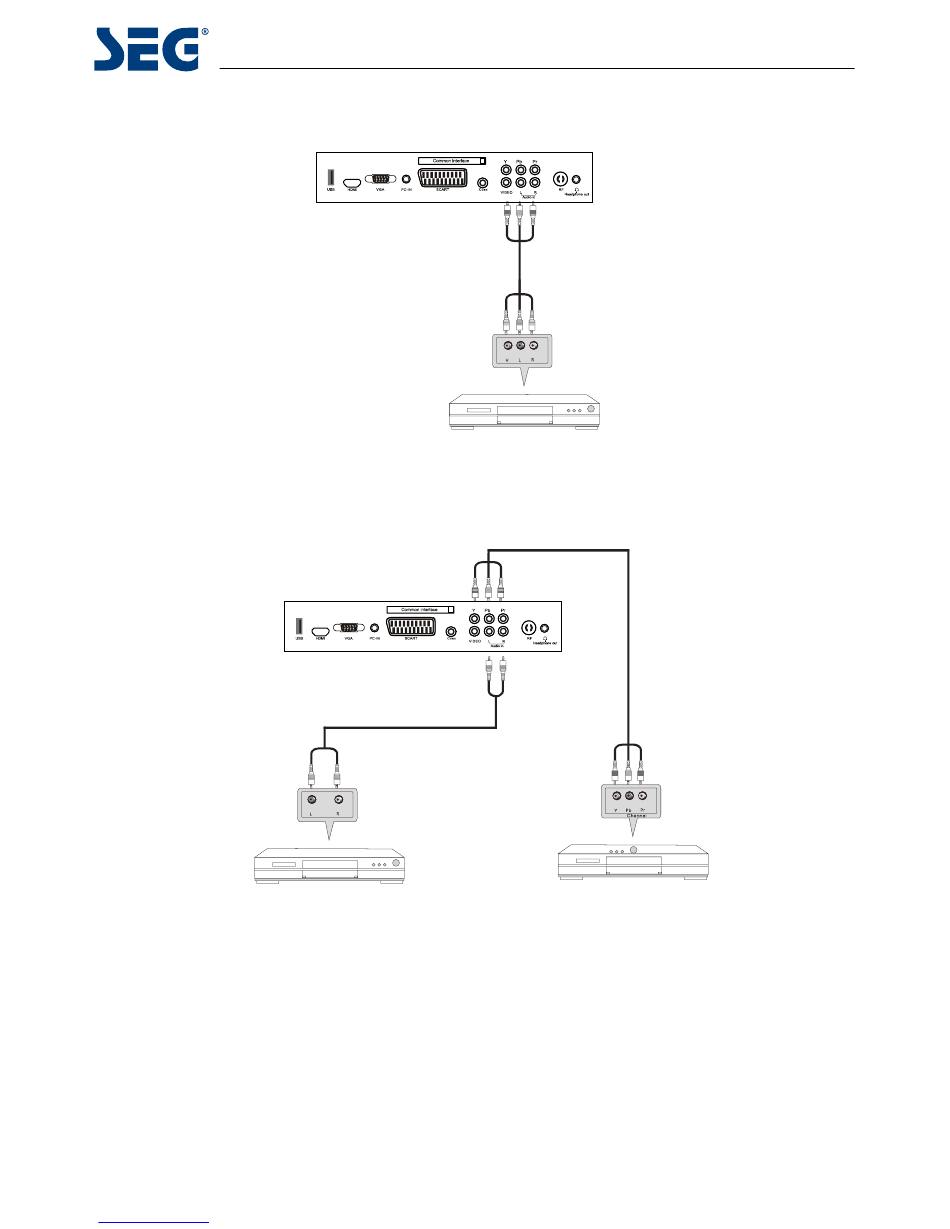

AV Connection

TV Back
DVD or VCR back
DVD or VCR
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the TV set using an RCA cable
(not supplied). Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Press the SOURCE
button on the remote control and select the AV input source.

YPbPr Connection

TV Back
YPbPr cable
Audio cable (RCA)
DVD or VCR back
DVD or VCR back
DVD or VCR
DVD or VCR
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the TV set. Connect the Audio output of the DVD or
VCR to the Audio input jacks on the TV set using a RCA audio cables and YPbPr cable together .
Match the jacks colors : Y is green, Pb is blue, Pr is red, Audio left is white, and Audio right is red. Press the SOURCE
button on the remote control and select the YPbPr input source.
