Florenz 55 cm (21,5") LCD-TV
Connecting external devices (continued)

CONNECTIONS

Name
AC POWER IN
USB
HDMI
VGA
PC-IN
SCART
CI
Coax
YpbPr
Video
(Audio) L/R IN
RF
Headphone
Caution:
Before connecting external devices:
Makes sure to disconnect the appliances from the
power supply in order to avoid any potential damage
from occurring.
Make sure to establish the required connection.
Make sure that the connectors are properly and cor-
rectly attached before connecting the appliances to the
power supply.

PC connection

As PCs are sometimes still supplied with a 'conventional'
CRT monitor, you may need to adjust the display set-
tings of your PCs graphics card, otherwise the pictures
may not appear correctly. Switch on your PC (still with
your original monitor connected) now select the screen
resolution, and select 60Hz refresh rate. Switch off your
PC, then connect it to your TV while both appliances are
still switched off.
Downloaded from www.Manualslib.com
Function Description
Connect to power supply
Connect to USB device for multimedia
Connect to the HDMI socket of your
DVD or Satellite Box
Connect to the PC VGA output to dis-
play PC graphics
PC audio input
Connect to the Scart input / output of
external devices
CI slot (pay as you view card slot)
Output t
Connect to the YPbPr output on exter-
nal devices
Connect to video output on
external Devices
Audio input for external AV-Devices
Connect to antenna or cable source
Connect Headphone
manuals search engine

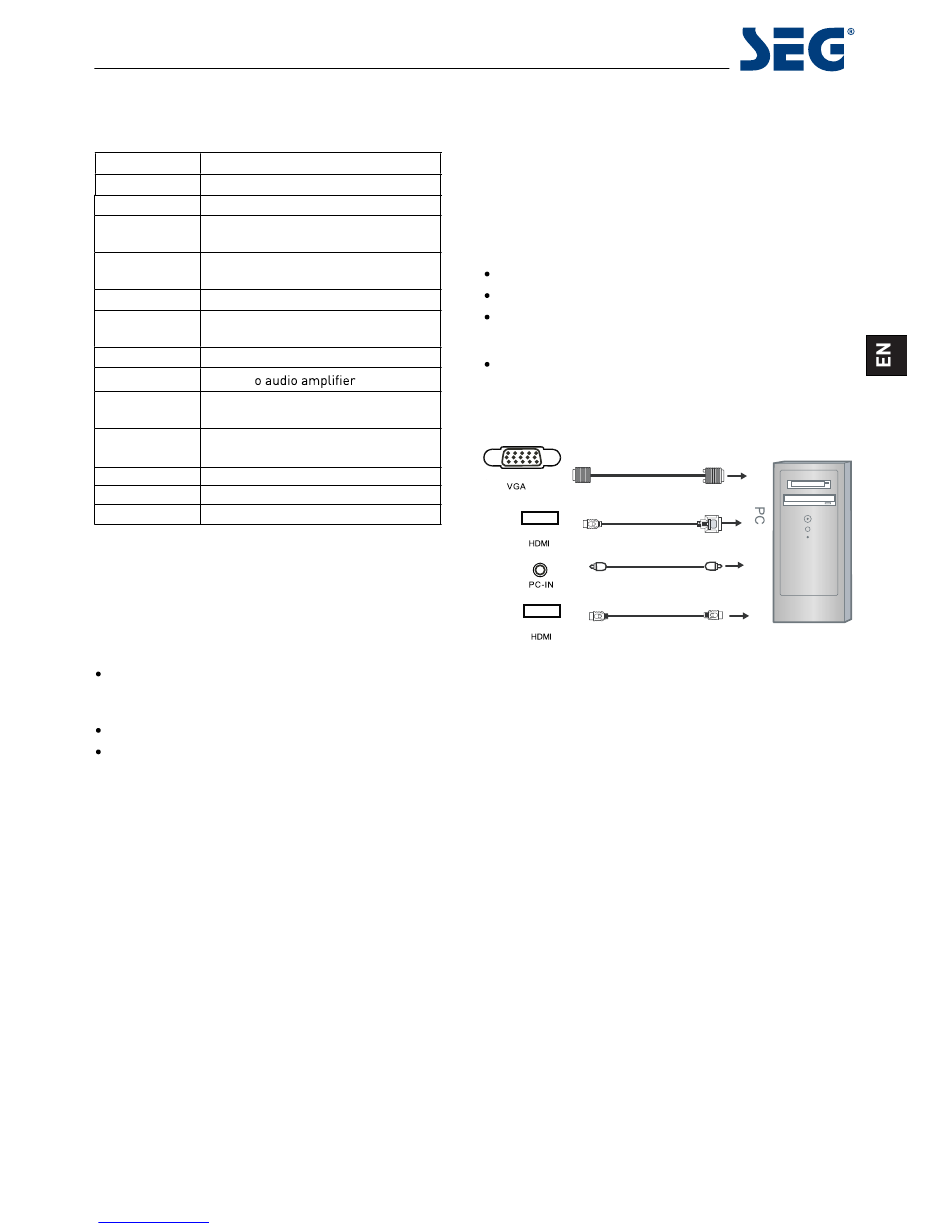

VGA, HDMI PC Connection

Use a PC-VGA cable (not supplied) to connect the TV to
your PC. You can also use an HDMI cable to connect to
your PC (if your PC Graphic card supports HDMI). When
the HDMI cable is used, the PC audio cable is no longer
required. If you use the HDMI to DVI cable, you will need
to use the PC audio cable. Connect all cables carefully
and do not bend or break the connector pins.
When using the VGA cable
Switch on the TV
Switch on the PC
Select PC/VGA as input source
When using the HDMI cable
Select HDMI as input source
VGA cable
HDMI to DVI cable
Audio cable
HDMI to HDMI
(All illustrated cables are not supplied)
