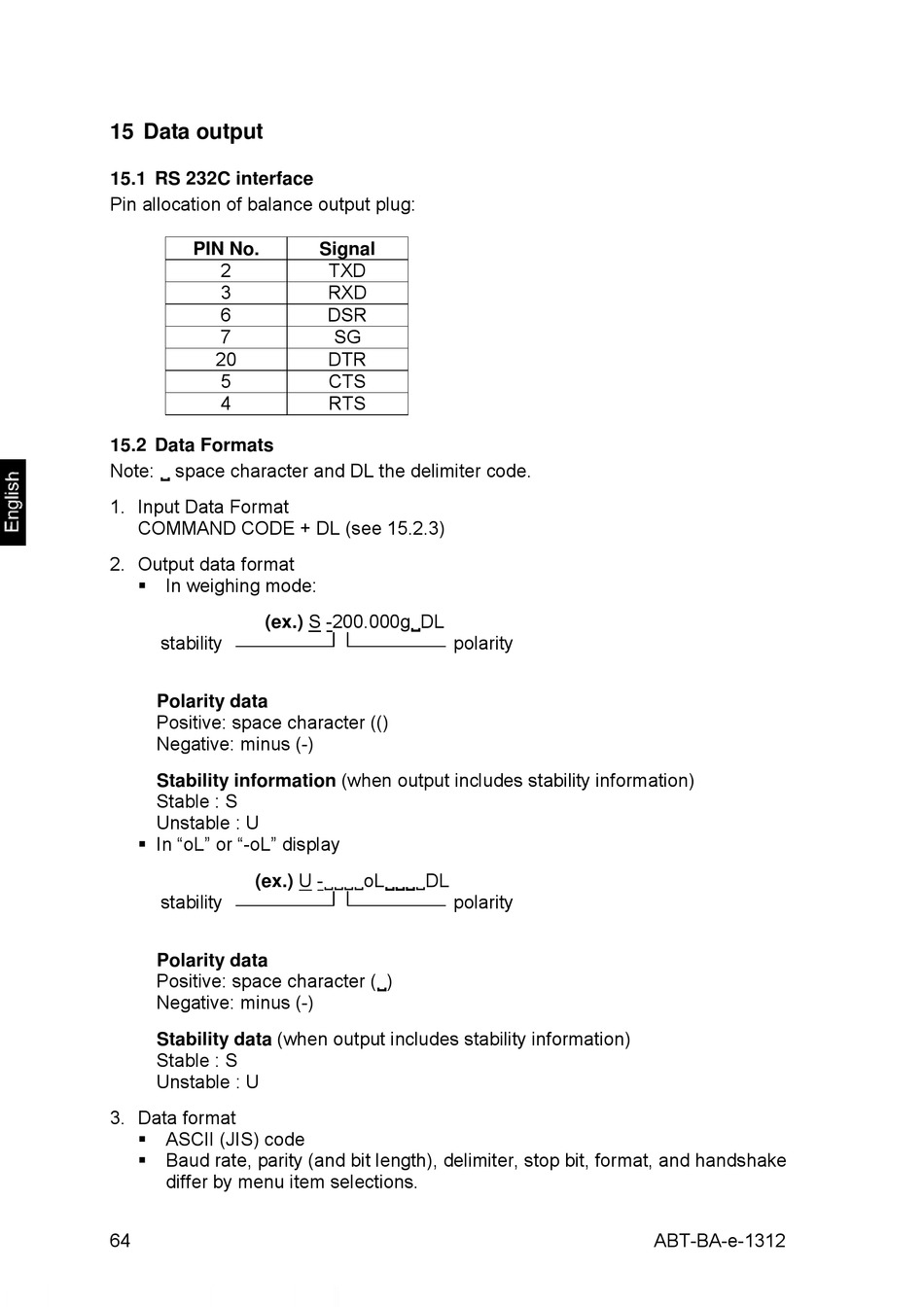

15 Data output

15.1 RS 232C interface

Pin allocation of balance output plug:
PIN No.
2
3
6
7
20
5
4

15.2 Data Formats

Note:  space character and DL the delimiter code.
1. Input Data Format
COMMAND CODE + DL (see 15.2.3)
2. Output data format
 In weighing mode:
(ex.) S -200.000gDL
stability
Polarity data
Positive: space character (()
Negative: minus (-)
Stability information (when output includes stability information)
Stable : S
Unstable : U
 In "oL" or "-oL" display
(ex.) U -oLDL
stability
Polarity data
Positive: space character ()
Negative: minus (-)
Stability data (when output includes stability information)
Stable : S
Unstable : U
3. Data format
 ASCII (JIS) code
 Baud rate, parity (and bit length), delimiter, stop bit, format, and handshake
differ by menu item selections.
64
Signal
TXD
RXD
DSR
SG
DTR
CTS
RTS
polarity
polarity
ABT-BA-e-1312
