Assembling
5EA23
1. Unscrew the lock ring of the back grille (9) of the motor shaft (4).
2. Insert the rear grille (10) on the motor shaft (4) making sure that the
handle on the back is facing upwards and the locking pins (A-B) are in
the vertical holes of the rear grille. Screw the locking ring (9) by turning
it clockwise.
3. Insert the fan (8) on the motor shaft (4).
4. Open the clips of the front grille (7) and place it on the back grille
(10) making sure that the logo on the central stud is placed horizontally,
parallel with the floor.
5. Find the proper position to lock the clips and insert the safety screw
of the grille (6).

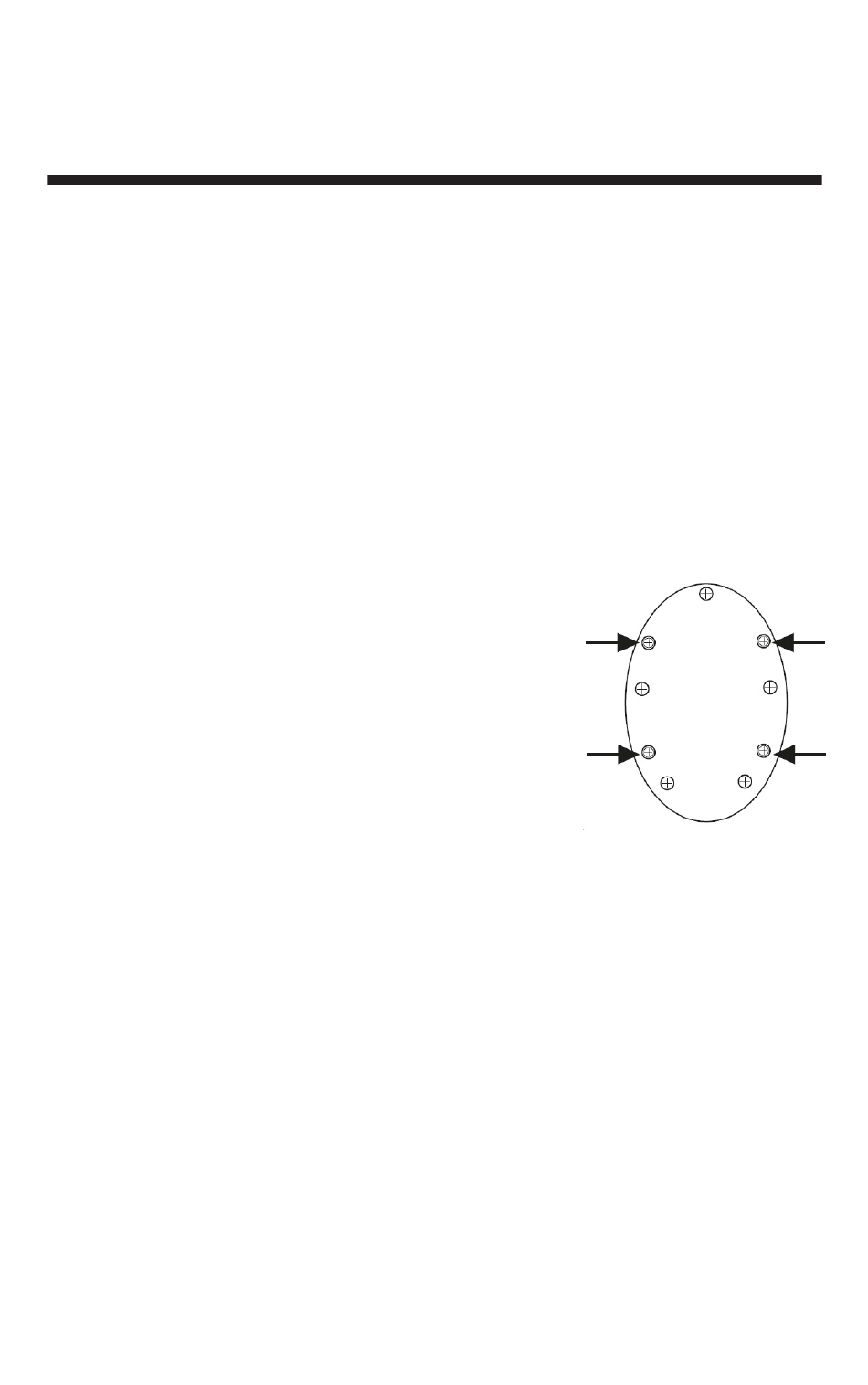

5EA30 / 5EA30W / 5EA40 / 5EA40W / 5AM30 / 5AM40
1. Mount the base on the main body fixing it with the
4 screws provided as shown in figure.
2. Unscrew the locking ring of the rear grille (11) from
the motor shaft (5) by turning it counterclockwise.
3. Insert the rear grille (12) on the motor shaft (5)
making sure that the handle on the back is facing
upwards and the locking pins (A-B) are in the vertical
holes of the rear grille. Screw the locking ring (11) by
turning it clockwise.
4. Insert the fan (10) on the motor shaft (5) and fasten
the proper lock ring (9) by rotating counterclockwise.
5. Open the clips of the front grille (8) and place
it on the back grille (12) making sure that the logo on the central stud is
placed horizontally, parallel with the floor.
6. Find the proper position to lock the clips and insert the safety screw
of the grille (7).
