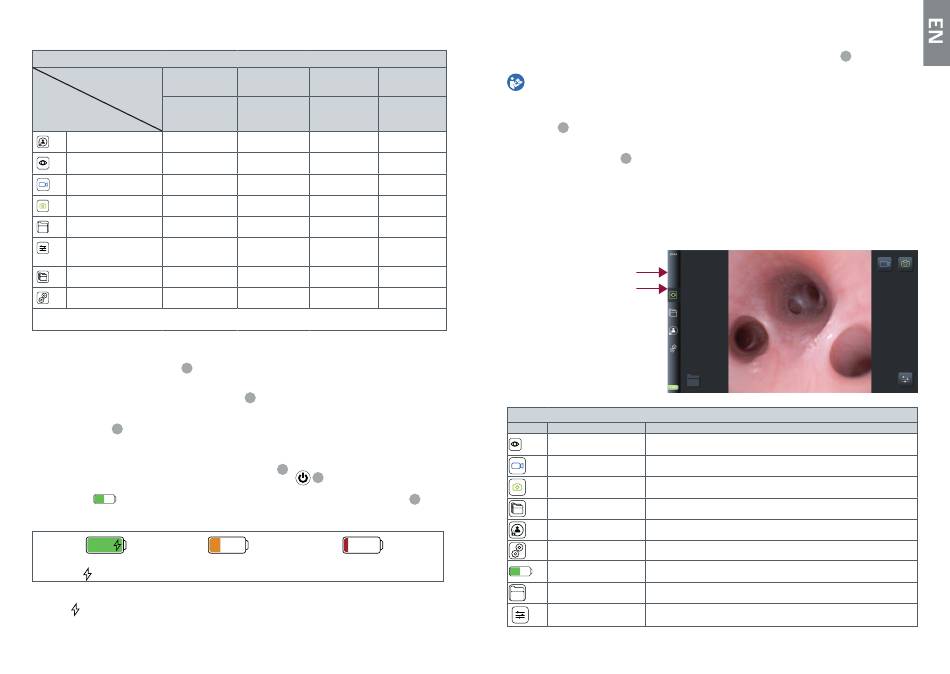

Description of User Types
User Types and System Access
Default User
User Type
Instant access
without login
Function Access
Login Required
X
Live View
X
Video Recording
X
Snapshot
X
Current Procedure
X
Adjustments
Archive X
*
Settings
*Access to Archive without log in can be enabled by Administrator in Settings.
**Service User does not have permission to add and change user profiles.
4.2. Preparation and Inspection of the Displaying Unit
1. Closely examine the displaying unit and other parts for any damage. Do not use the displaying
unit if it is damaged in any way A .
2. Clean and disinfect the displaying unit (see section 5).
3. If needed, rotate the displaying unit to have the connector ports for the visualization device
oriented left or right in your preferred direction
4. Choose where to place the displaying unit.
a) Place the displaying unit on a solid flat surface by folding out the stand on the back of the
displaying unit .
Ca
b) Mount the supplied bracket on a pole. First, fold the stand on the back upwards. Hold the
displaying unit with two hands and place the bottom edge in the bracket. Push displaying unit
towards the bracket until it clicks in place. Make sure that the bracket and the displaying unit is
securely in place by tightening the bolts on the bracket
5. Turn the displaying unit ON by pressing the power button
loading, a live image is available if an Ambu visualization device is connected. Check the battery
indicator 1:45 in the lower left corner of the screen when the user interface appears
colour of the battery icon indicates the power level. It is recommended to charge the displaying
unit if the battery icon is orange or red.
3:00
Green = Battery level > 40%
Battery level < 40%
= Charging
6. Charge the displaying unit if necessary by connecting the power supply to a mains socket and
inserting the power plug into the power inlet on the back of the displaying unit. A lightning
icon is shown in the battery indicator on the screen when the displaying unit is charging. Make
sure the power supply is present and working at any time. It is recommended to locate the nea-
rest power outlet before starting any procedure.
10
Advanced User Administrator Service User
Daily Administrator Service
operation with full related tasks
access
X X
X X
X X
X X
X X
X X
X X
X
B .
.
Cb
D
. While the user interface is
0:45 0:25
Orange = Red =
Battery level < 20%
7. An external monitor can be connected to the HDMI or SDI port located in the back of the display-
ing unit. USB ports for file export or software updates are placed on the side (see section 2.3).
Please consult the manual of the external equipment for further information.
To avoid risk of electrical shock only connect ancillary equipment, which is approved as medical
electrical equipment.
8. Connect the Ambu visualization device to the displaying unit by plugging the cable connector into
the corresponding connector port. Make sure that the colours are matching and the arrows are
G
aligned .
9. Verify that a live video image appears on the screen, by pointing the distal end of the Ambu visu-
X
alization device towards an object, e.g. the palm of your hand. Make sure that the live image has
the correct orientation
X
4.3. Installing, Preparing and Operating the Ambu Visualization Device
X
Please refer to the Instruction for Use for the specific visualization device.
X
4.4. Operating the Displaying Unit
X
Live View
When the user interface appears the Live View tab is active and a live image is shown. The active tab in
X
the tool bar is always marked with green. The tool bar is always located in the left side of the interface.
X
**
Explanation of icons in Live View
Icon Name
Live View
Video Recording
Snapshot
E
. The
Archive
Login
Settings
Battery
1:45
Current Procedure
Image Adjustments
For further instructions on each function refer to the online Reference Manual on www.ambu.com.
Find the Reference Manual in the download section on the product page.
H .
Tool bar
Live View
is active
Function
This tab shows the live image from the connected Ambu visu-
alization device.
Press the blue Video Recording button to start recording video
during the procedure. Press again to stop recording.
Press the green Snapshot button to take a still image during
the procedure.
Access recordings. Manage and export files. Login may be
required.
Login is required to access settings, archive and export files
with DICOM.
Access system settings.
The time stamp indicates the time left on the battery
while using a visualization device.
View videos and snapshots recorded in the current
procedure.
Adjust colour, contrast, sharpness and screen
brightness.
F
