Securing the appliance to the cabinet
GB
There are three different groups of appliance as far as
installation is concerned:
BUILT-IN HOB
HEIGHT= STEEL THICKNESS
BUILT-IN HOB
STEEL TICKNESS <HEIGHT <58mm

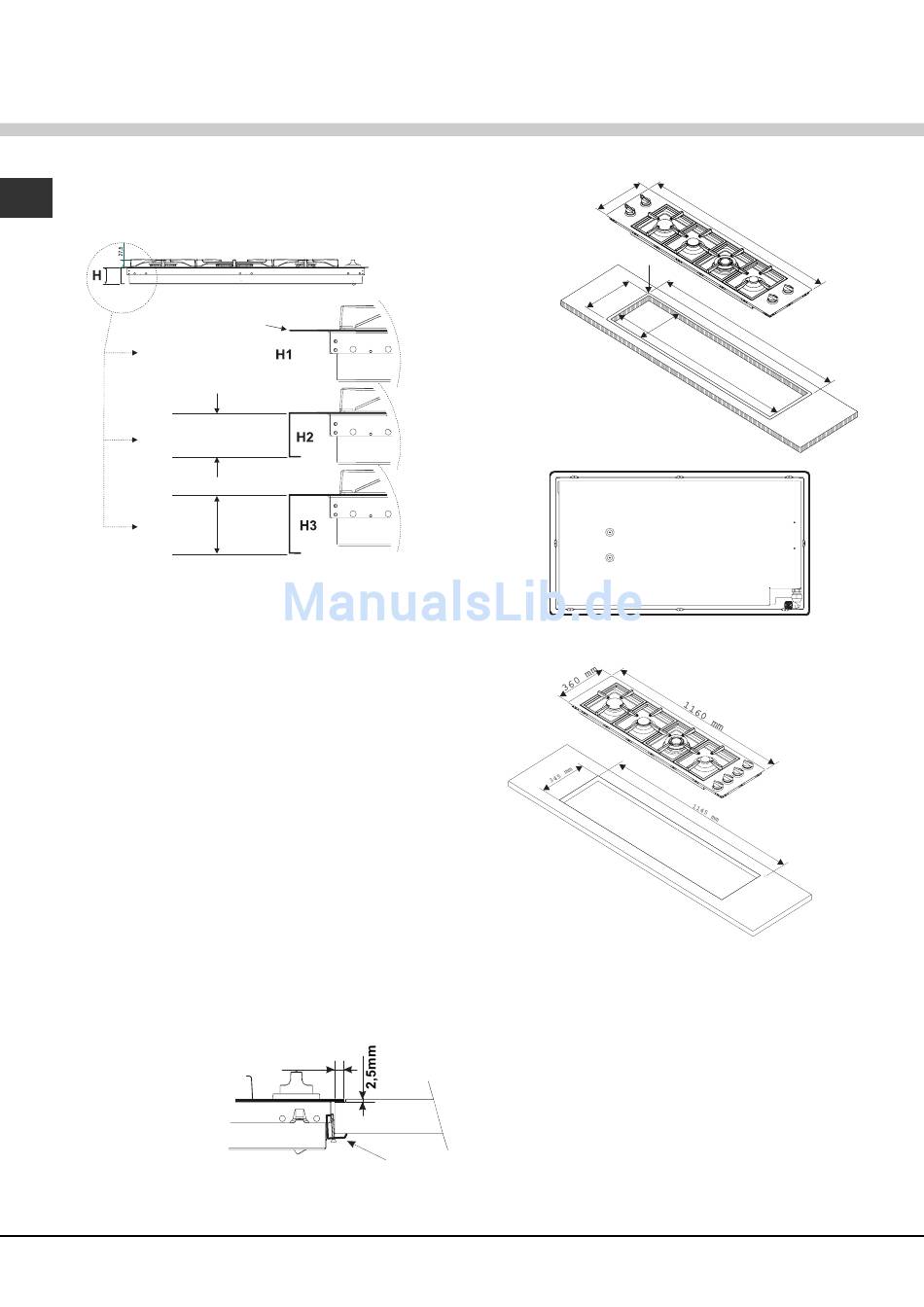

1-Built-in hobs flush with the worktop (Class 3 - see figure
2, detail H1). In this case it is necessary to make a hole
with measurements matching those of the hob in the
worktop. The measurement at the side should be reduced
by 2 cm so as to ensure that 1 cm of the hob overlaps with
and rests on top of the supporting surface (see figure 3). To
fit the hob flush with the worktop, it is necessary to cut
lower on this supporting surface (see figure 3 and 4), so
that both the edge of the hob and the seal under it can be
positioned there.
Before fitting the hob to the worktop, position the seal
provided along the perimeter of the hob, as illustrated in fi-
gure 4.
Brackets for fixing hobs to the cabinet have been provided,
and these should be fitted as shown in detail S.
2-Built-in hobs (Class 3) with edges lower than 58 mm (see
figure 2, detail H2). To install this type of hob, a hole large
enough to accommodate the whole lower casing of the
appliance must be made on the worktop intended to be
under the hob. Remember to leave a gap of at least 1 cm
between the lower casing and the worktop around the
whole perimeter of the appliance (the underside of the
casing can, however, touch the surface below it). To fit the
appliances, follow the instructions given above in point 1 or
use any supplementary instruction leaflet that is provided
in special cases.
fig 3
14
SIT ON - ON HOB
HEIGHT >58mm
10mm
TOP
S
Y+2mm
fig.4
fig.2
For model PP 30TC 120:
3-Sit-on hobs (Class 1) with edges higher than 58 mm (see
figure 2, detail H3). In this case, the lower casing of the
hob does not protrude further than the edge of the
appliance. Even when the hob is resting on the worktop, it
will suffice to leave space for the gas supply tube and
electricity supply cable. To fit this type of hob, follow the
instructions below (fig. 5):
• Fix the two screws provided "A" at a distance from the
back panel as shown in figure 7, leaving the heads of the
screws sticking out of the wood by 1.5 mm.
• Hook the hob onto the two screws "A" and push it
towards the back.
Y
X
R 11mm
Y-20mm
X+2mm
X-20mm
