Assembly

Inserting/Replacing the Battery

Alkali-manganese batteries are recommended for the measuring tool.
– Press the latch 9 of the battery lid outward and open the battery lid 11.
When inserting the battery, pay attention to the correct polarity according to the rep-
resentation on the inside of the battery compartment.
When the battery low indicator c appears for the first time on the display 7, the meas-
uring tool can still be operated for approx. 3 h.
 If the measuring tool is not used for a long period of time, the battery must be
1 609 92A 275 | (17.12.15)
Downloaded from www.Manualslib.com

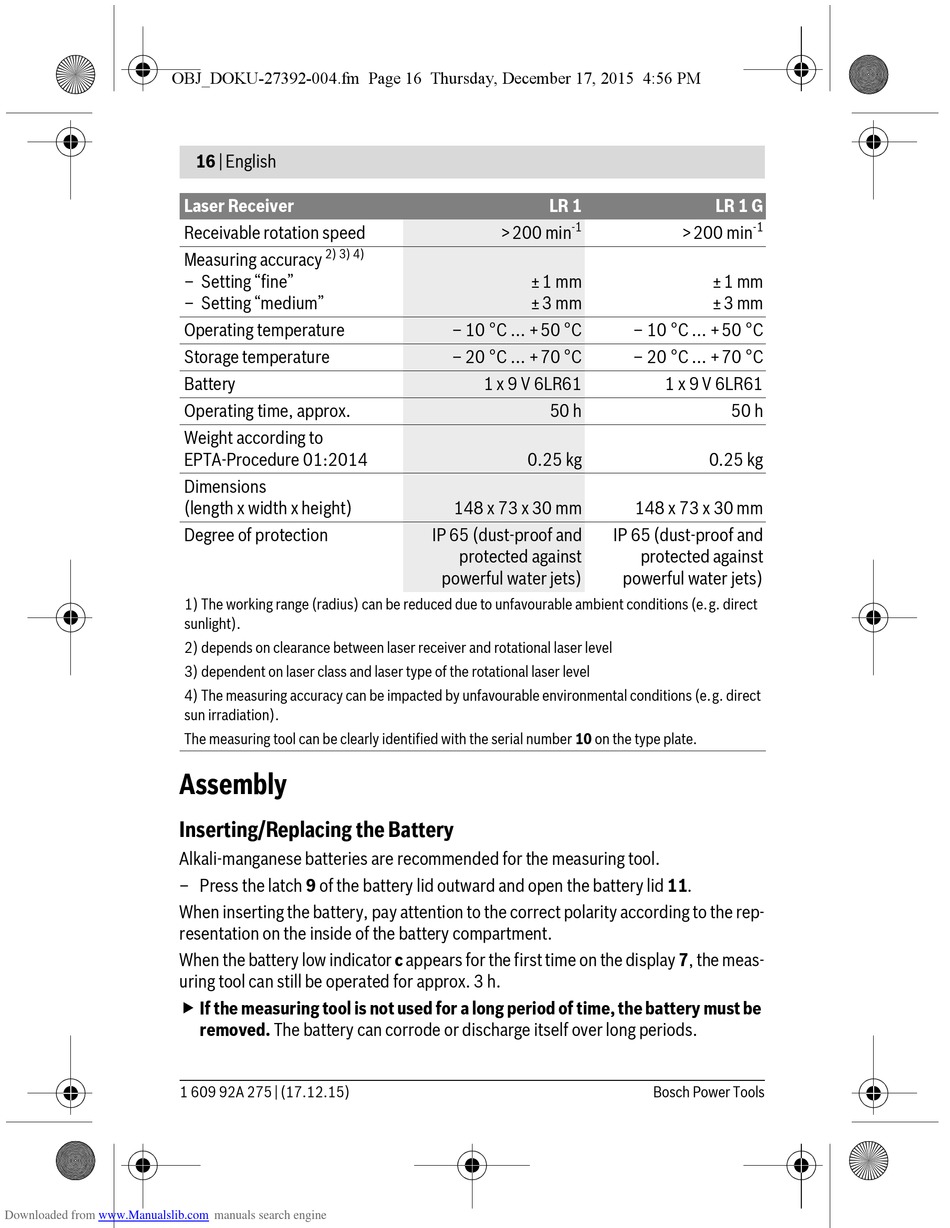

16 | English
Laser Receiver
Receivable rotation speed
2) 3) 4)
Measuring accuracy
– Setting "fine"
– Setting "medium"
Operating temperature
Storage temperature
Battery
Operating time, approx.
Weight according to
EPTA-Procedure 01:2014
Dimensions
(length x width x height)
Degree of protection
1) The working range (radius) can be reduced due to unfavourable ambient conditions (e.g. direct
sunlight).
2) depends on clearance between laser receiver and rotational laser level
3) dependent on laser class and laser type of the rotational laser level
4) The measuring accuracy can be impacted by unfavourable environmental conditions (e.g. direct
sun irradiation).
The measuring tool can be clearly identified with the serial number 10 on the type plate.
removed. The battery can corrode or discharge itself over long periods.
manuals search engine
LR 1
-1
>200 min
±1 mm
±3 mm
– 10 °C ... +50 °C
– 20 °C ... +70 °C
1 x 9 V 6LR61
50 h
0.25 kg
148 x 73 x 30 mm
IP 65 (dust-proof and
protected against
powerful water jets)
LR 1 G
-1
>200 min
±1 mm
±3 mm
– 10 °C ... +50 °C
– 20 °C ... +70 °C
1 x 9 V 6LR61
50 h
0.25 kg
148 x 73 x 30 mm
IP 65 (dust-proof and
protected against
powerful water jets)
