Installation and Operating Instructions
EN

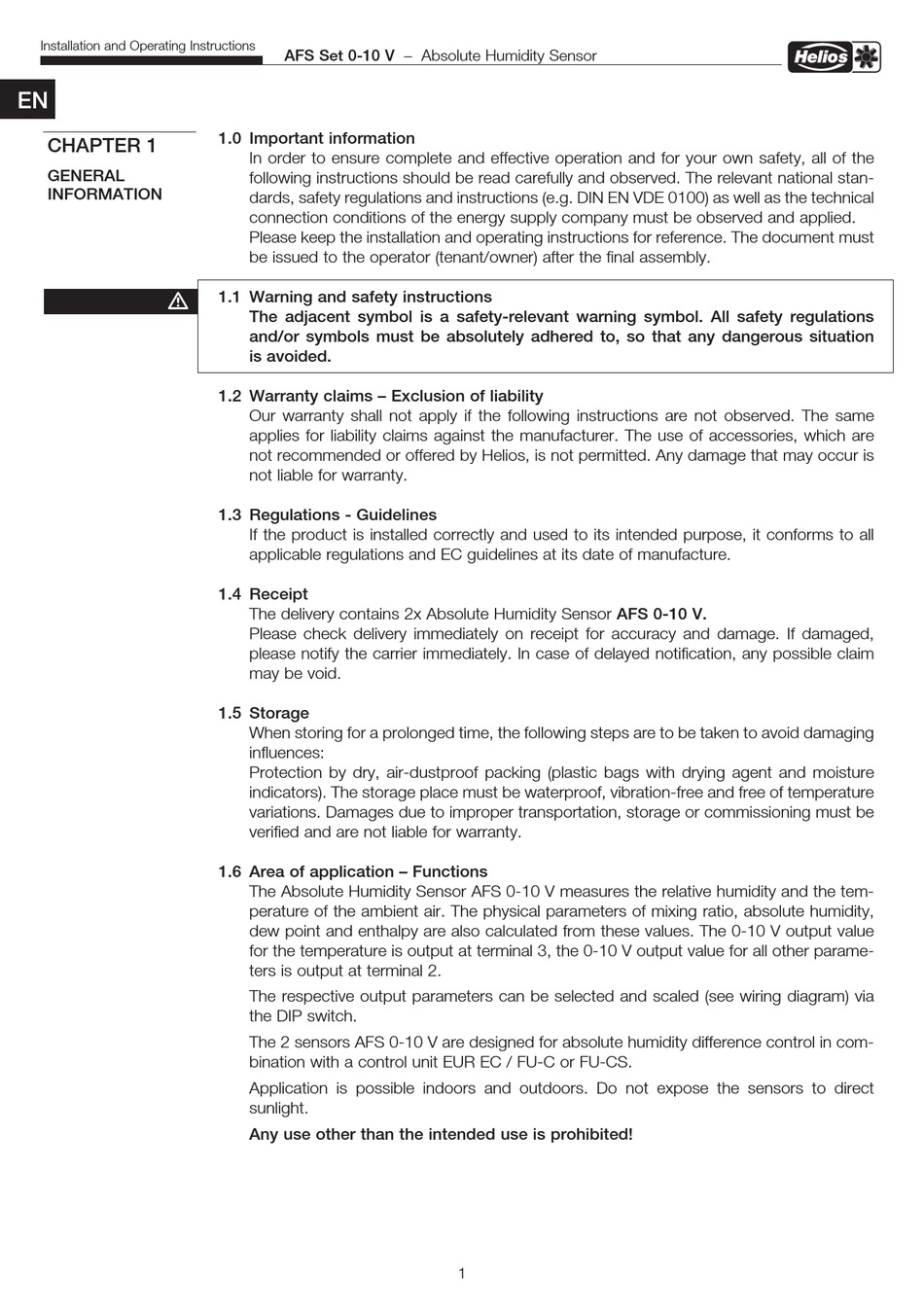

CHAPTER 1
GENERAL
INFORMATION
m
AFS Set 0-10 V – Absolute Humidity Sensor
1.0 Important information
In order to ensure complete and effective operation and for your own safety, all of the
following instructions should be read carefully and observed. The relevant national stan-
dards, safety regulations and instructions (e.g. DIN EN VDE 0100) as well as the technical
connection conditions of the energy supply company must be observed and applied.
Please keep the installation and operating instructions for reference. The document must
be issued to the operator (tenant/owner) after the final assembly.
1.1 Warning and safety instructions
The adjacent symbol is a safety-relevant warning symbol. All safety regulations
and/or symbols must be absolutely adhered to, so that any dangerous situation
is avoided.
1.2 Warranty claims – Exclusion of liability
Our warranty shall not apply if the following instructions are not observed. The same
applies for liability claims against the manufacturer. The use of accessories, which are
not recommended or offered by Helios, is not permitted. Any damage that may occur is
not liable for warranty.
1.3 Regulations - Guidelines
If the product is installed correctly and used to its intended purpose, it conforms to all
applicable regulations and EC guidelines at its date of manufacture.
1.4 Receipt
The delivery contains 2x Absolute Humidity Sensor AFS 0-10 V.
Please check delivery immediately on receipt for accuracy and damage. If damaged,
please notify the carrier immediately. In case of delayed notification, any possible claim
may be void.
1.5 Storage
When storing for a prolonged time, the following steps are to be taken to avoid damaging
influences:
Protection by dry, air-dustproof packing (plastic bags with drying agent and moisture
indicators). The storage place must be waterproof, vibration-free and free of temperature
variations. Damages due to improper transportation, storage or commissioning must be
verified and are not liable for warranty.
1.6 Area of application – Functions
The Absolute Humidity Sensor AFS 0-10 V measures the relative humidity and the tem-
perature of the ambient air. The physical parameters of mixing ratio, absolute humidity,
dew point and enthalpy are also calculated from these values. The 0-10 V output value
for the temperature is output at terminal 3, the 0-10 V output value for all other parame-
ters is output at terminal 2.
The respective output parameters can be selected and scaled (see wiring diagram) via
the DIP switch.
The 2 sensors AFS 0-10 V are designed for absolute humidity difference control in com-
bination with a control unit EUR EC / FU-C or FU-CS.
Application is possible indoors and outdoors. Do not expose the sensors to direct
sunlight.
Any use other than the intended use is prohibited!
1
