IS1 I/O-Modules
Safety Analog Input Module HART Ex i Inputs, 8/6 Channels Series 9462

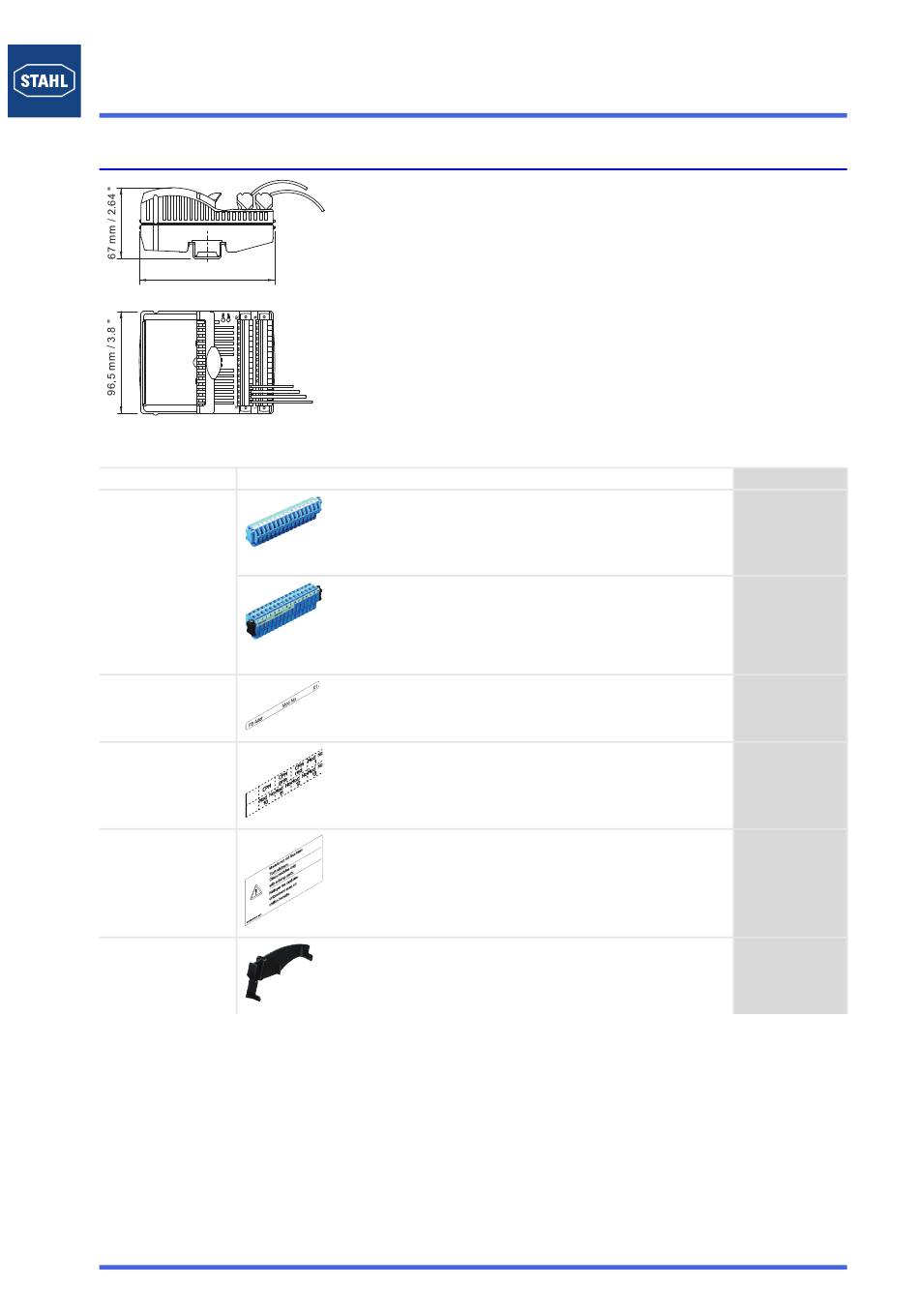

Dimensional Drawings (All Dimensions in mm / inches) - Subject to Alterations
128 mm / 5.04 "

Accessories and Spare Parts

Designation
Plug-in terminal
Labelling strips
Designation strips
Warning sign
Partition
8 r­stahl.com
Illustration Description
2.5 mm 2 with catch, 16-pole, screw connection, blue, for connecting
the field signals to I/O modules, for intrinsically safe field circuits
Designation: 1 ... 16
Attention: An additional terminal is necessary for I/O module
Series 9470 and 9480.
02079E00
Designation: 17 ... 32
2.5 mm 2 with catch, 16-pole, spring connection, blue, for connecting
the field signals to I/O modules, for intrinsically safe field circuits
including test jacks
Designation: 1 ... 16
Attention: An additional terminal is necessary for I/O module
02077E00
Series 9470 and 9480.
Designation: 17 ... 32
„FB No ... Mod No ..." for plug-in terminals, sheet with 26 labels
05869E00
For BusRail, for 1 BusRail with 16 I/O modules
05871E00
„Only clean modules with damp cloths"
05872E00
For assembly between intrinsically safe and non-intrinsically safe
connectors of the I/O modules, in order to adhere to the required
50 mm distance
02078E00
Operating Instructions for the IS1­System
09879E00
167836 / 946260310010
Art. no.
162702
162695
162788
162793
162796
162740
2018-12-06·BA00·III·en·05
