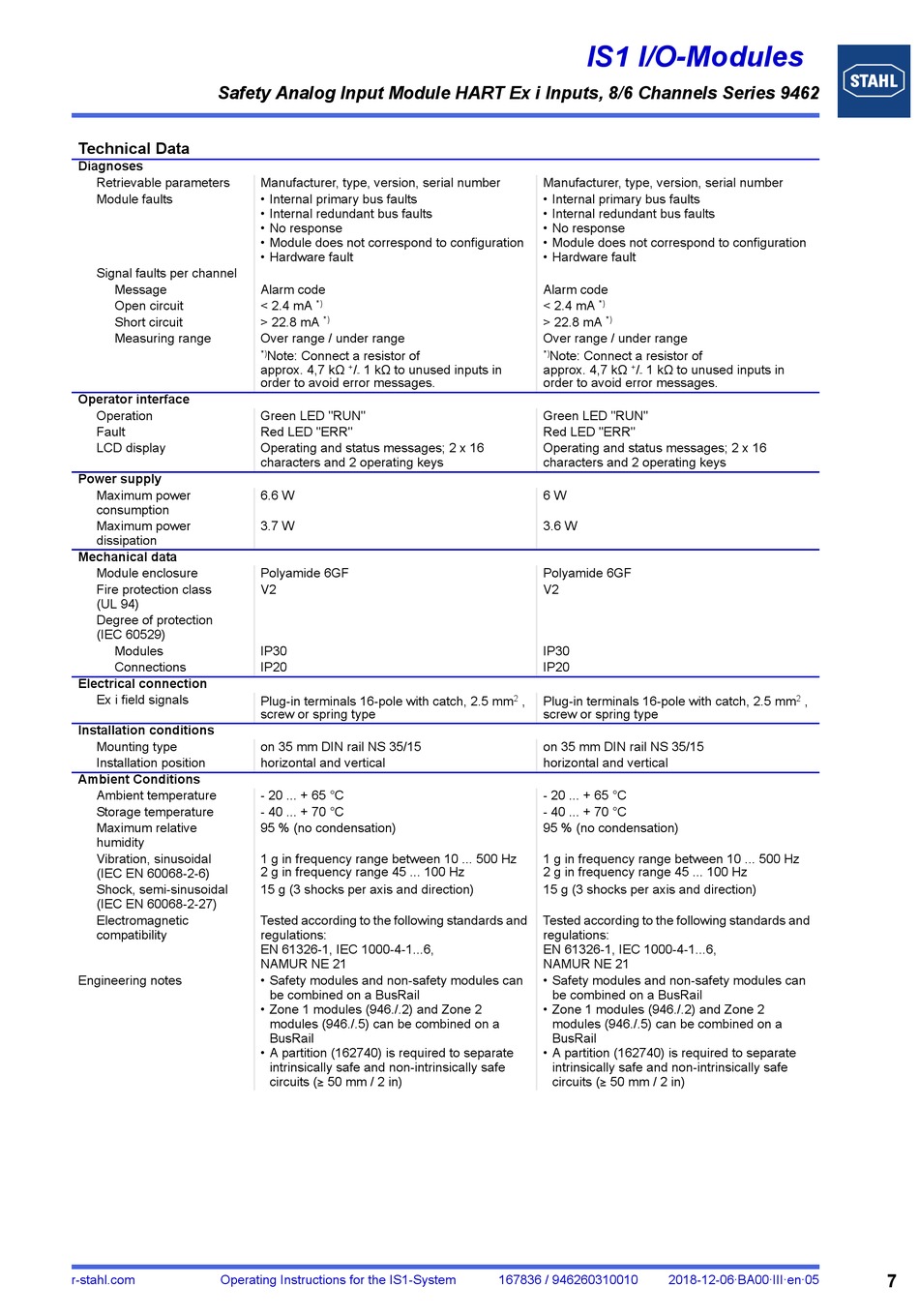

Safety Analog Input Module HART Ex i Inputs, 8/6 Channels Series 9462
Technical Data
Diagnoses
Retrievable parameters
Module faults
Signal faults per channel
Message
Open circuit
Short circuit
Measuring range
Operator interface
Operation
Fault
LCD display
Power supply
Maximum power
consumption
Maximum power
dissipation
Mechanical data
Module enclosure
Fire protection class
(UL 94)
Degree of protection
(IEC 60529)
Modules
Connections
Electrical connection
Ex i field signals
Installation conditions
Mounting type
Installation position
Ambient Conditions
Ambient temperature
Storage temperature
Maximum relative
humidity
Vibration, sinusoidal
(IEC EN 60068-2-6)
Shock, semi-sinusoidal
(IEC EN 60068-2-27)
Electromagnetic
compatibility
Engineering notes
r­stahl.com Operating Instructions for the IS1­System
Manufacturer, type, version, serial number
• Internal primary bus faults
• Internal redundant bus faults
• No response
• Module does not correspond to configuration
• Hardware fault
Alarm code
< 2.4 mA *)
> 22.8 mA *)
Over range / under range
*) Note: Connect a resistor of
+
approx. 4,7 kΩ / 1 kΩ to unused inputs in
-
order to avoid error messages.
Green LED "RUN"
Red LED "ERR"
Operating and status messages; 2 x 16
characters and 2 operating keys
6.6 W
3.7 W
Polyamide 6GF
V2
IP30
IP20
Plug-in terminals 16-pole with catch, 2.5 mm
screw or spring type
on 35 mm DIN rail NS 35/15
horizontal and vertical
- 20 ... + 65 °C
- 40 ... + 70 °C
95 % (no condensation)
1 g in frequency range between 10 ... 500 Hz
2 g in frequency range 45 ... 100 Hz
15 g (3 shocks per axis and direction)
Tested according to the following standards and
regulations:
EN 61326-1, IEC 1000-4-1...6,
NAMUR NE 21
• Safety modules and non-safety modules can
be combined on a BusRail
• Zone 1 modules (946./.2) and Zone 2
modules (946./.5) can be combined on a
BusRail
• A partition (162740) is required to separate
intrinsically safe and non-intrinsically safe
circuits () 50 mm / 2 in)
IS1 I/O-Modules
Manufacturer, type, version, serial number
• Internal primary bus faults
• Internal redundant bus faults
• No response
• Module does not correspond to configuration
• Hardware fault
Alarm code
< 2.4 mA *)
> 22.8 mA *)
Over range / under range
*) Note: Connect a resistor of
+
approx. 4,7 kΩ / 1 kΩ to unused inputs in
-
order to avoid error messages.
Green LED "RUN"
Red LED "ERR"
Operating and status messages; 2 x 16
characters and 2 operating keys
6 W
3.6 W
Polyamide 6GF
V2
IP30
IP20
2 , Plug-in terminals 16-pole with catch, 2.5 mm
screw or spring type
on 35 mm DIN rail NS 35/15
horizontal and vertical
- 20 ... + 65 °C
- 40 ... + 70 °C
95 % (no condensation)
1 g in frequency range between 10 ... 500 Hz
2 g in frequency range 45 ... 100 Hz
15 g (3 shocks per axis and direction)
Tested according to the following standards and
regulations:
EN 61326-1, IEC 1000-4-1...6,
NAMUR NE 21
• Safety modules and non-safety modules can
be combined on a BusRail
• Zone 1 modules (946./.2) and Zone 2
modules (946./.5) can be combined on a
BusRail
• A partition (162740) is required to separate
intrinsically safe and non-intrinsically safe
circuits () 50 mm / 2 in)
