#38 M16*1.5 1pc
37
38
37
38
#76
M8*40*20*S6 4pcs
#77
Φ16*Φ8*H1.5 4pcs
76
76
77
84
ASSEMBLY INSTRUCTIONS
85
85
S6
#90
76
77
73
76
77
85

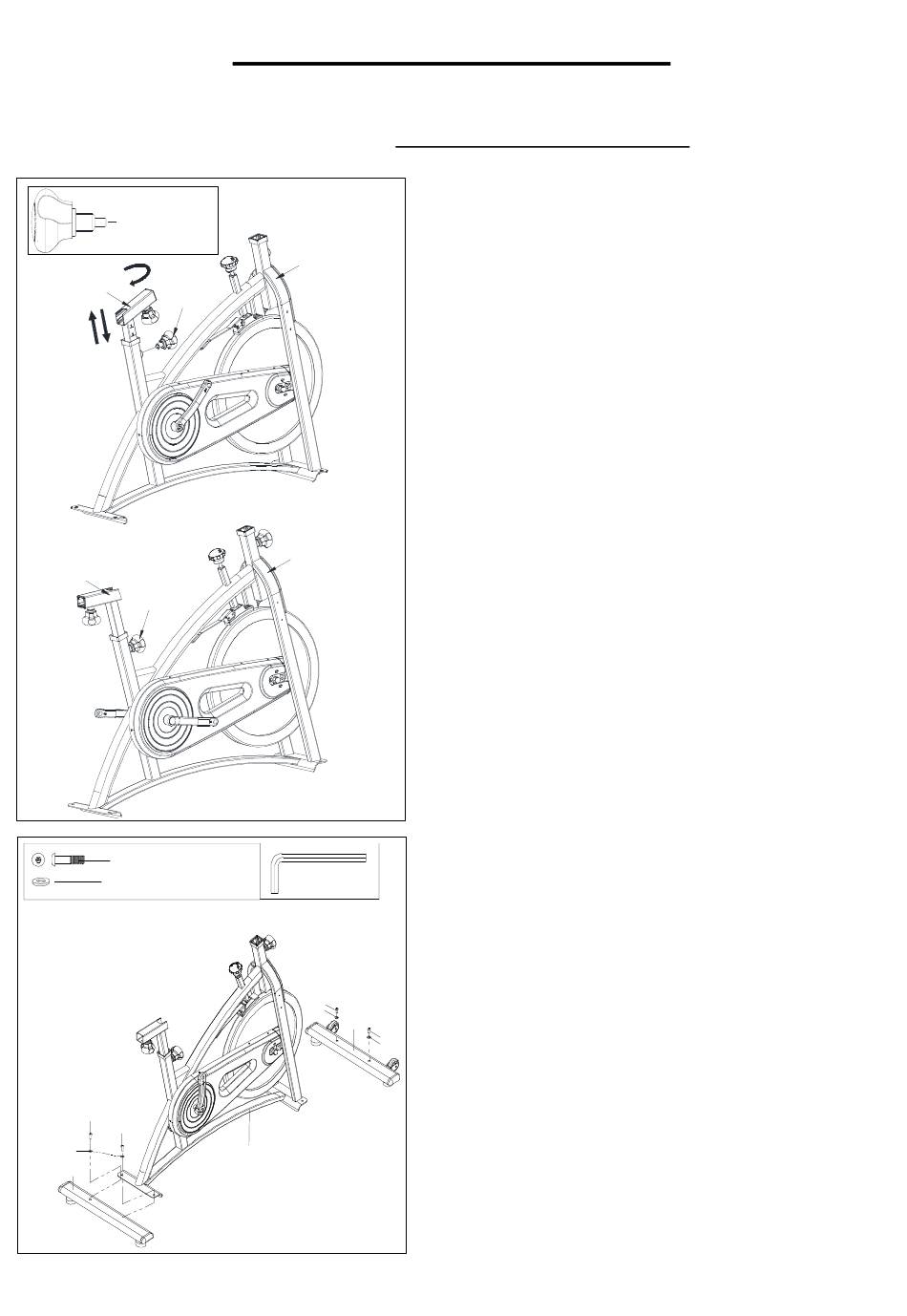

STEP 1:
Pull out the Seat Post (No. 37) from Main Frame
(No. 85). Turn the Seat Post (No. 37) at 180° as left
picture showed. Then re-insert Seat Post (No. 37)
into the sleeve located on the Main Frame (No. 85).
Adjust the Seat Post (No. 37) to the desired position
and tighten with the Adjustment Knob (No. 38).
STEP 2:
Attach the Front and Rear Stabilizers (No. 73 &
No. 84) to the Main Frame (No. 85) using 4 Bolts
(No. 76) and 4 Washers (No. 77). Tighten and
secure with Allen Wrench (No. 90).
