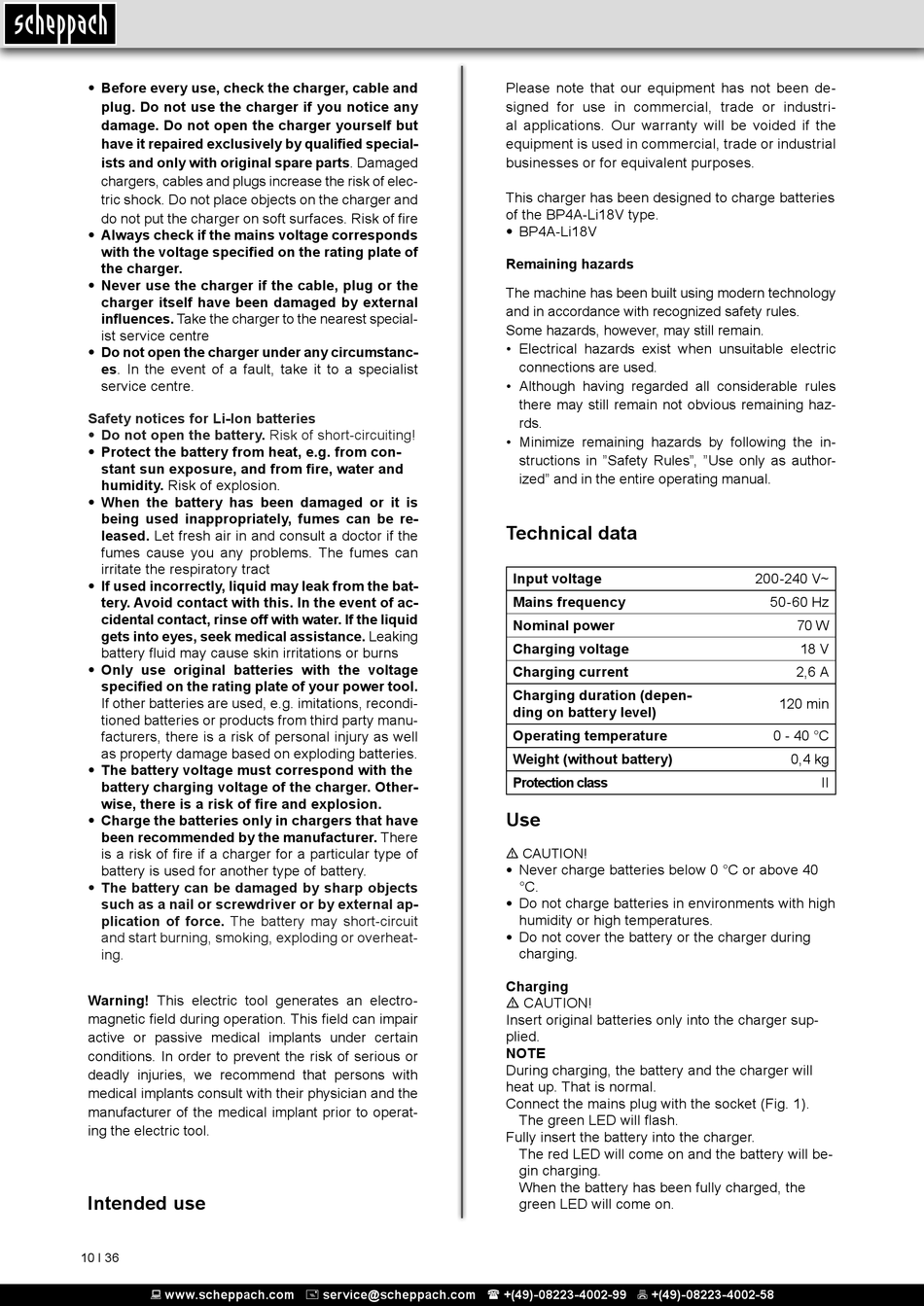

• Before every use, check the charger, cable and
plug. Do not use the charger if you notice any
damage. Do not open the charger yourself but
have it repaired exclusively by qualified special-
ists and only with original spare parts. Damaged
chargers, cables and plugs increase the risk of elec-
tric shock. Do not place objects on the charger and
do not put the charger on soft surfaces. Risk of fire
• Always check if the mains voltage corresponds
with the voltage specified on the rating plate of
the charger.
• Never use the charger if the cable, plug or the
charger itself have been damaged by external
influences. Take the charger to the nearest special-
ist service centre
• Do not open the charger under any circumstanc-
es. In the event of a fault, take it to a specialist
service centre.
Safety notices for Li-Ion batteries
• Do not open the battery. Risk of short-circuiting!
• Protect the battery from heat, e.g. from con-
stant sun exposure, and from fire, water and
humidity. Risk of explosion.
• When the battery has been damaged or it is
being used inappropriately, fumes can be re-
leased. Let fresh air in and consult a doctor if the
fumes cause you any problems. The fumes can
irritate the respiratory tract
• If used incorrectly, liquid may leak from the bat-
tery. Avoid contact with this. In the event of ac-
cidental contact, rinse off with water. If the liquid
gets into eyes, seek medical assistance. Leaking
battery fluid may cause skin irritations or burns
• Only use original batteries with the voltage
specified on the rating plate of your power tool.
If other batteries are used, e.g. imitations, recondi-
tioned batteries or products from third party manu-
facturers, there is a risk of personal injury as well
as property damage based on exploding batteries.
• The battery voltage must correspond with the
battery charging voltage of the charger. Other-
wise, there is a risk of fire and explosion.
• Charge the batteries only in chargers that have
been recommended by the manufacturer. There
is a risk of fire if a charger for a particular type of
battery is used for another type of battery.
• The battery can be damaged by sharp objects
such as a nail or screwdriver or by external ap-
plication of force. The battery may short-circuit
and start burning, smoking, exploding or overheat-
ing.
Warning! This electric tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain
conditions. In order to prevent the risk of serious or
deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operat-
ing the electric tool.

Intended use

10 І 36
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Please note that our equipment has not been de-
signed for use in commercial, trade or industri-
al applications. Our warranty will be voided if the
equipment is used in commercial, trade or industrial
businesses or for equivalent purposes.
This charger has been designed to charge batteries
of the BP4A-Li18V type.
• BP4A-Li18V
Remaining hazards
The machine has been built using modern technology
and in accordance with recognized safety rules.
Some hazards, however, may still remain.
• Electrical hazards exist when unsuitable electric
connections are used.
• Although having regarded all considerable rules
there may still remain not obvious remaining haz-
rds.
• Minimize remaining hazards by following the in-
structions in "Safety Rules", "Use only as author-
ized" and in the entire operating manual.

Technical data

Input voltage
Mains frequency
Nominal power
Charging voltage
Charging current
Charging duration (depen-
ding on battery level)
Operating temperature
Weight (without battery)
Protection class
Use
m CAUTION!
Never charge batteries below 0 °C or above 40
•
°C.
Do not charge batteries in environments with high
•
humidity or high temperatures.
Do not cover the battery or the charger during
•
charging.
Charging
m CAUTION!
Insert original batteries only into the charger sup-
plied.
NOTE
During charging, the battery and the charger will
heat up. That is normal.
Connect the mains plug with the socket (Fig. 1).
The green LED will flash.
Fully insert the battery into the charger.
The red LED will come on and the battery will be-
gin charging.
When the battery has been fully charged, the
green LED will come on.
200-240 V~
50-60 Hz
70 W
18 V
2,6 A
120 min
0 - 40 °C
0,4 kg
II
