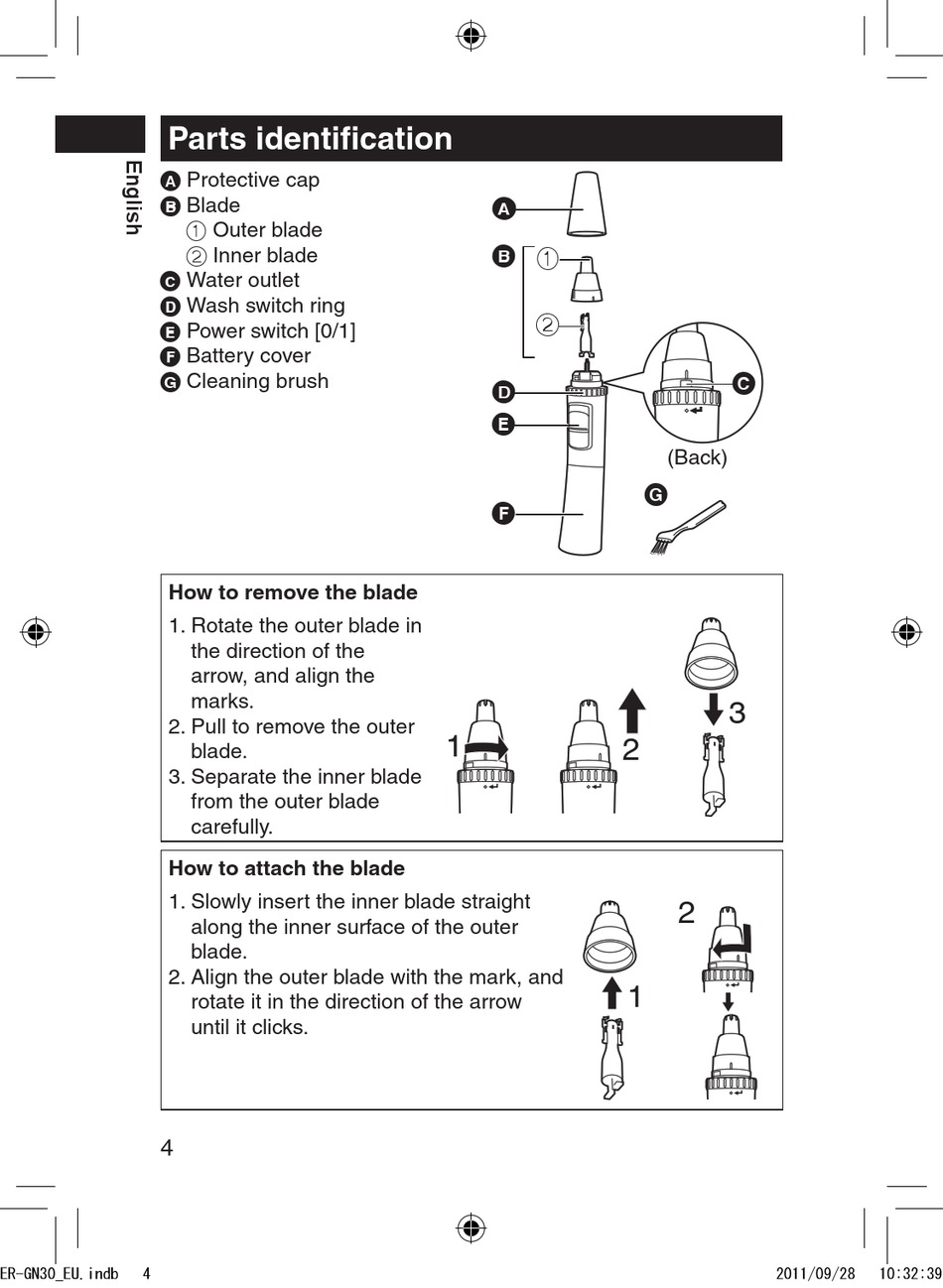

Partsidentification
A Protective cap
B Blade
C Water outlet
D Wash switch ring
E Power switch [0/1]
F Battery cover
G Cleaning brush
Howtoremovetheblade
1. Rotate the outer blade in
. Pull to remove the outer
3. Separate the inner blade
Howtoattachtheblade
1. Slowly insert the inner blade straight
. Align the outer blade with the mark, and

ER-GN30_EU.indb 4
1 Outer blade
2 Inner blade
the direction of the
arrow, and align the
marks.
blade.
from the outer blade
carefully.
along the inner surface of the outer
blade.
rotate it in the direction of the arrow
until it clicks.







1
2

(Back)

3
2
1
