Sliding block replacement
First of all carry out the operations indicated at the points
1 - 2 on the side of the block to be replaced
6) The head on the same side of the block wich has to be
replaced must be detached from the profile. Follow the steps 4-5.
Gearbox assembly

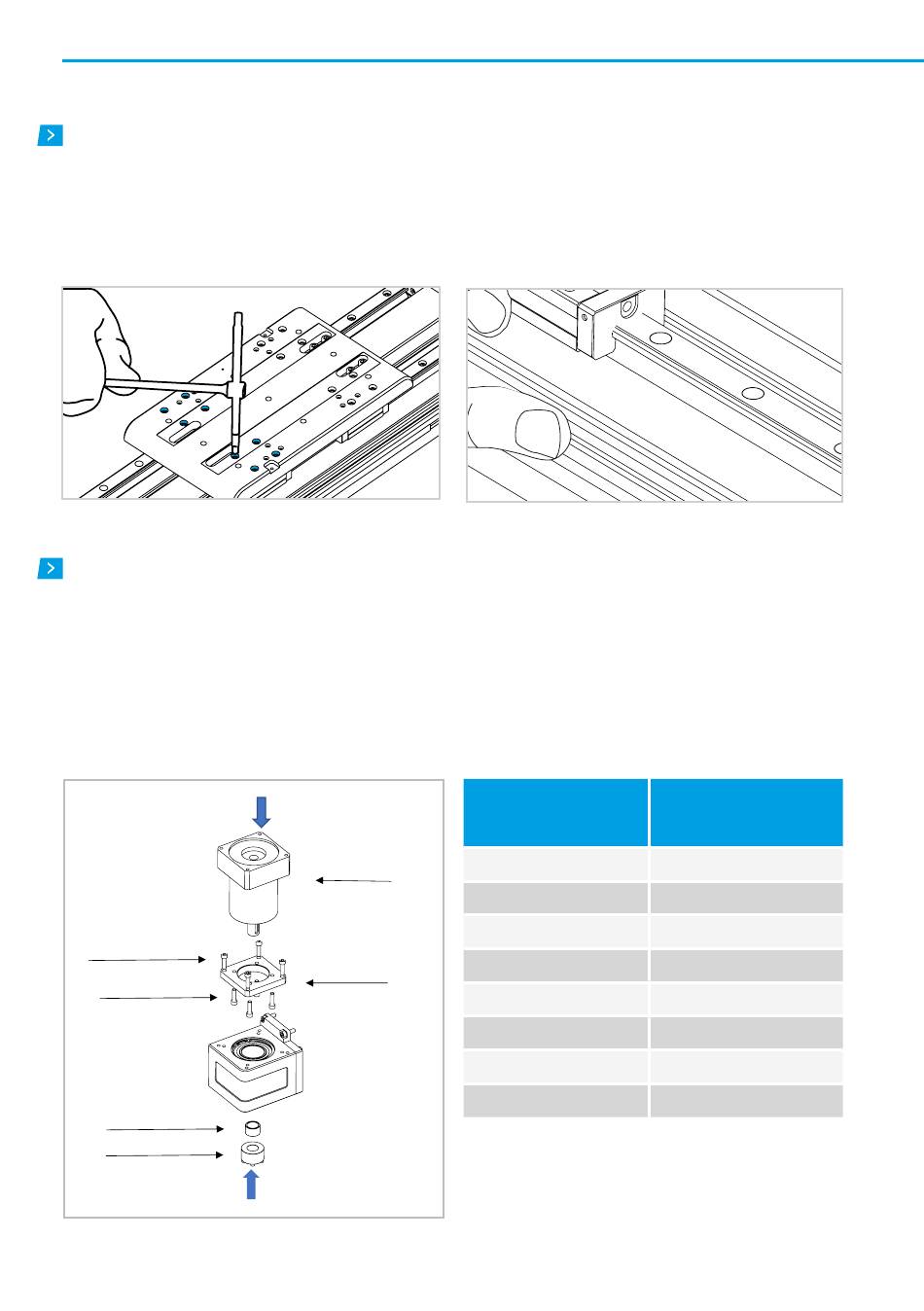

Place the actuator as shown in the figure (Fig.10) with the
■
gear assembly component facing upwards.
Assemble the flange (1) on the gear and tighten the
■
screws (2) until the torques shown in Table 2 are reached.
Place the gearbox complete with flange on the actuator
■
Tighten the fixing screws (5) without locking them.
Screws 5
Screws 2
Spacer 3
Shrink disk 4
UM-4
7) Remove the fixing screws on the top of the carriage (Fig.8).
8) Pull off the sliding block (Fig.9). To re-assemble the sliding
blocks, carry out the same operations in the opposite way.
Fig. 8
Insert the spacer (3) from below and then insert the
■
shrink disk (4) without locking it.
Gradually tighten the shrink disk fixing screws using the
■
cross diagram until the torque shown in Table 3 is reached.
Loosen and then tighten the fixing screws (5) until the
■
torques shown in Table 2 are reached.
Gearbox
Flange 1
Fig. 10
Screw
8.8
M2
M2.5
M3
M4
M5
M6
M8
M10
Fig. 9
Ms
[Nm]
0.4
0.7
1.3
2.8
5.6
9.6
23
46
Tab. 2
