Operation

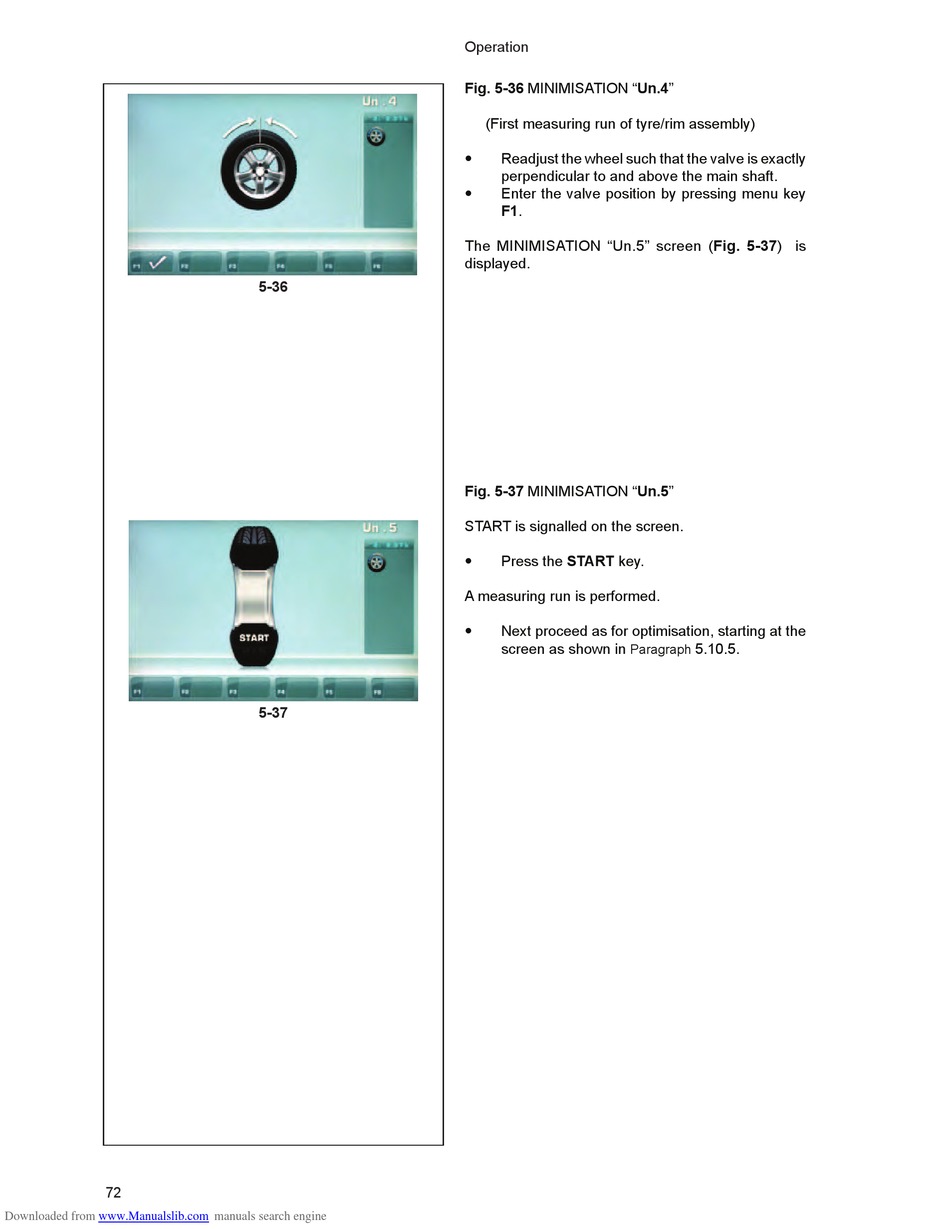

Fig. 5-36 MINIMISATION "Un.4"
(First measuring run of tyre/rim assembly)
Readjust the wheel such that the valve is exactly
—
perpendicular to and above the main shaft.
Enter the valve position by pressing menu key
—
F1.
The MINIMISATION "Un.5" screen (Fig. 5-37) is
displayed.
Fig. 5-37 MINIMISATION "Un.5"
START is signalled on the screen.
Press the START key.
—
A measuring run is performed.
Next proceed as for optimisation, starting at the
—
screen as shown in
Paragraph
5.10.5.
