Piktogramme • Pictographs • Pictogrammes
P14
P15
P16
P17
P19
P21
P23
26
Downloaded from www.Manualslib.com
P18
P20 0
P22
P24
manuals search engine

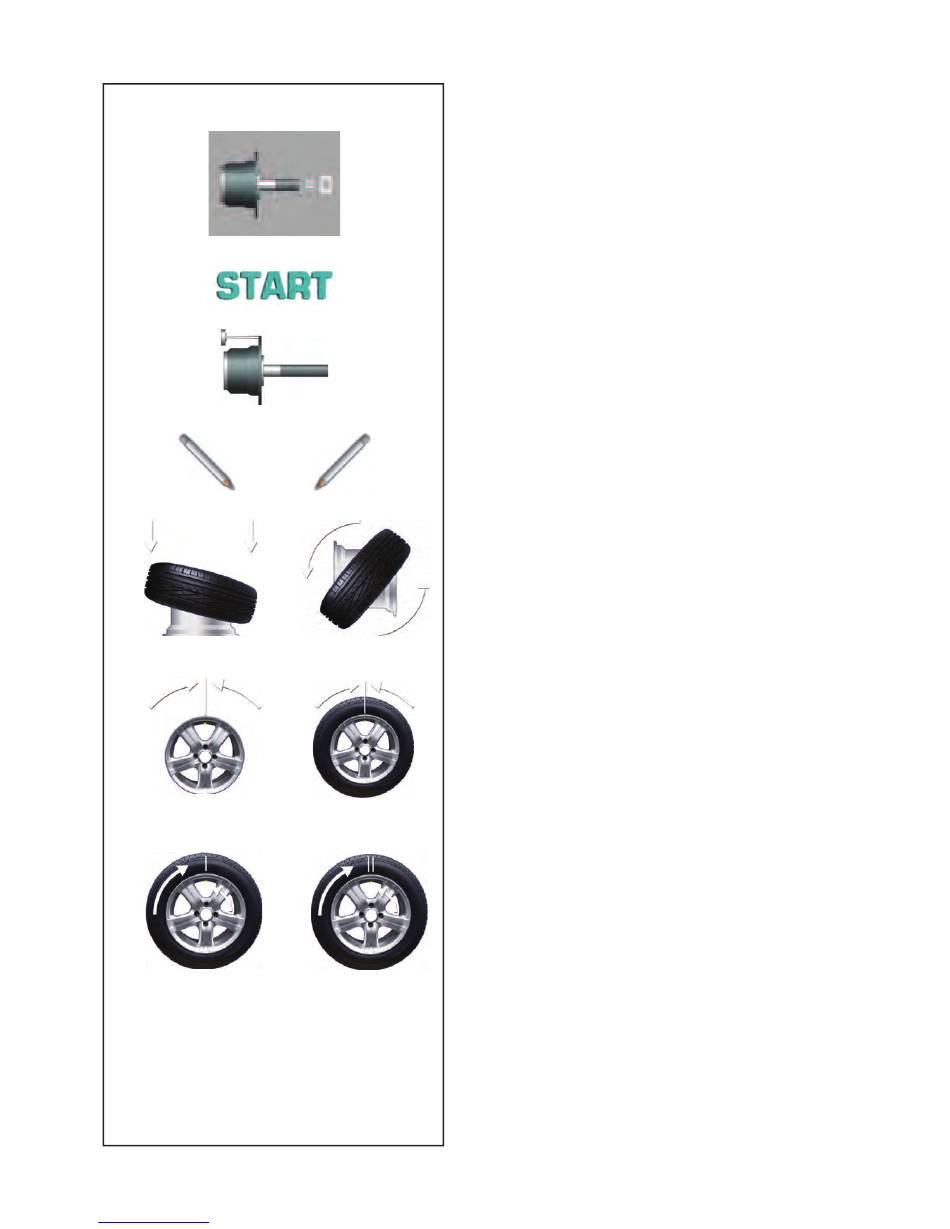

Layout
P14 Compensation run carried out
P15 Start measuring run by pressing the START key
or closing the wheel guard.
P16 Calibration weight
P17 Provide mark on left tyre side
P18 Provide mark on right tyre side.
P19 Fit tyre on rim and infl ate to the specifi ed infl ation
pressure.
P20 Turn tyre over on rim.
P21 Rotate rim until valve is exactly perpendicular to
and above the main shaft.
P22 Rotate wheel until valve is exactly perpendicular
to and above the main shaft.
P23 Readjust tyre on rim until the mark coincides
precisely with the valve.
P24 Readjust tyre on rim until the double mark
coincides precisely with the valve
