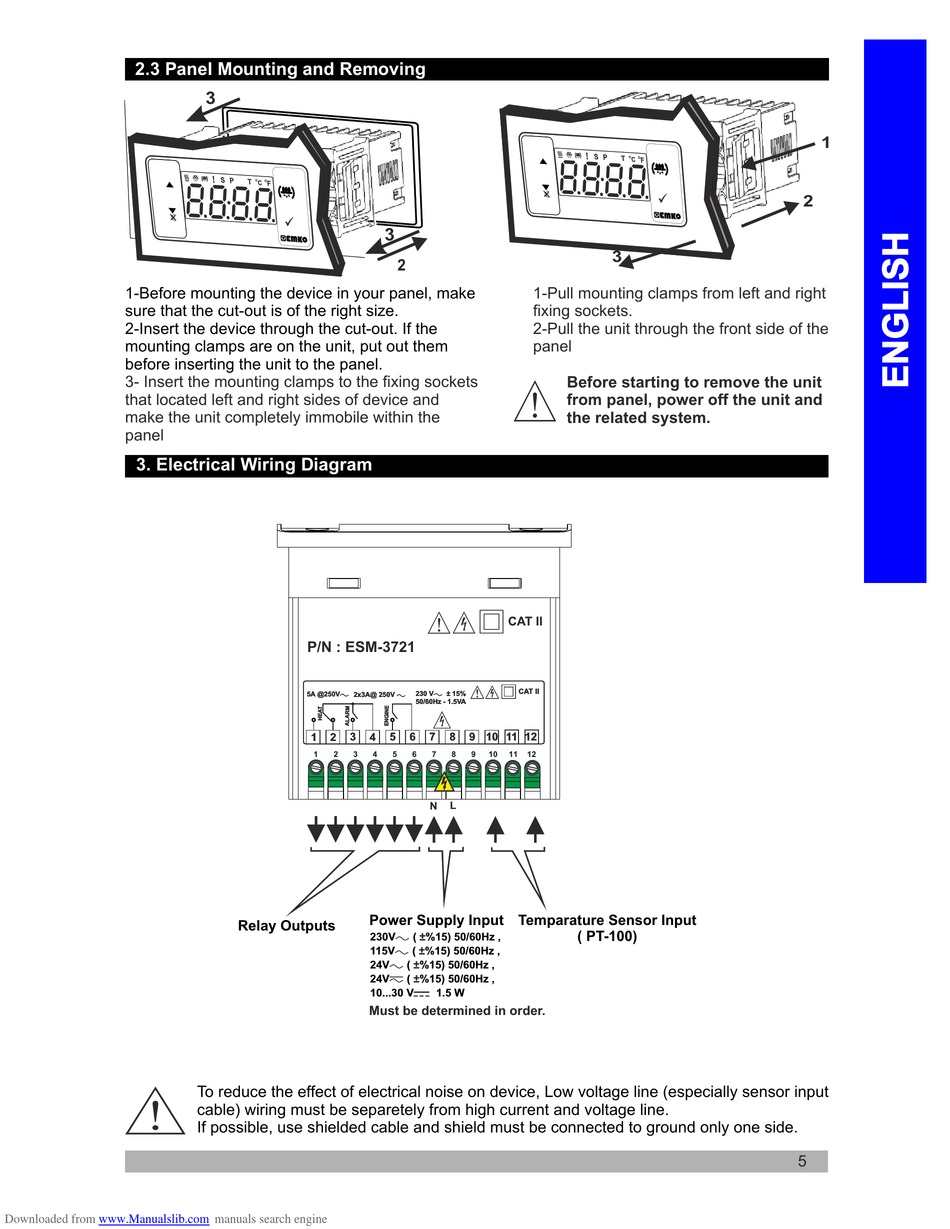

2.3 Panel Mounting and Removing
1-Before mounting the device in your panel, make
sure that the cut-out is of the right size.
2-Insert the device through the cut-out. If the
mounting clamps are on the unit, put out them
before inserting the unit to the panel.
3- Insert the mounting clamps to the fixing sockets
that located left and right sides of device and
make the unit completely immobile within the
panel
3. Electrical Wiring Diagram
c
Downloaded from
www.Manualslib.com
3
P/N : ESM-3721
2x3A@ 250V V
2x3A@ 250V V
5A @250VV
5A @250VV
1
1
2
2
3
3
4
4
1
2
3
4
Power Supply Input Temparature Sensor Input
Relay Outputs
230V
115V
24V
24V
10...30 V
Must be determined in order.
To reduce the effect of electrical noise on device, Low voltage line (especially sensor input
cable) wiring must be separetely from high current and voltage line.
If possible, use shielded cable and shield must be connected to ground only one side.
