2. General Description

Front panel
IP65 Protection
NEMA 4X

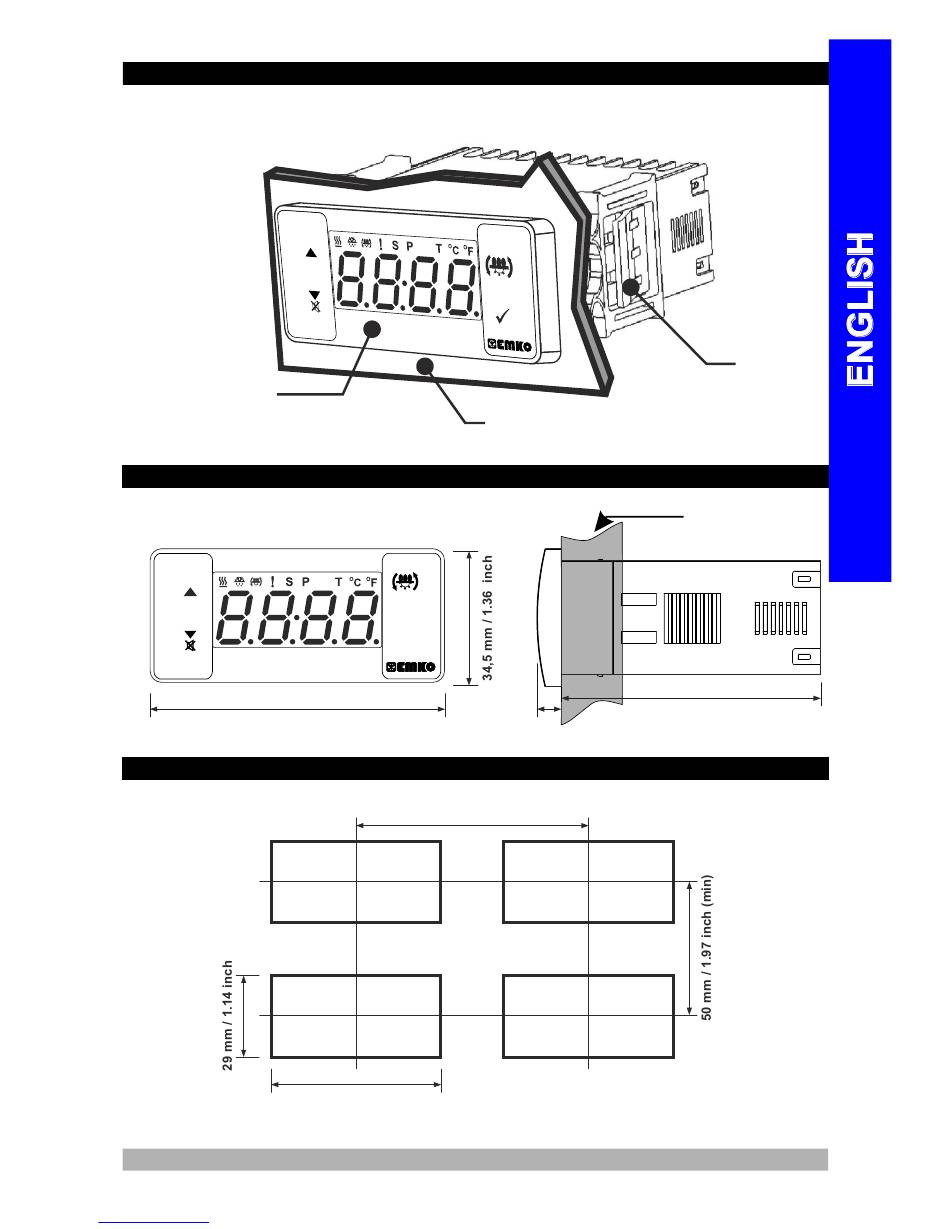

2.1 Front View and Dimensions of ESM-3721 Hatcher Controller
2.2 Panel Cut- Out
Downloaded from www.Manualslib.com
76 mm / 3 inch
71 mm / 2.79 inch
manuals search engine
Panel Surface
(maximum thickness 15 mm / 0.59 inch)
ü ü
6 mm / 0.24 inch
110 mm / 4.33 inch (min)
Mounting Clamp
Maximum 15 mm / 0.59 inch
65 mm / 2.56 inch
