OBID i-scan

2.9.2 RS485/RS422 interface

The second asynchronous interface can be configured for RS485 or RS422 (see Section
configuration).
The RS485/RS422 interface is connected on X7.
Pin configuration X7 (RS485/RS422 interface):
Terminal
Table 2-12: RS485/RS422 interface pin-outs
FEIG ELECTRONIC GmbH
Downloaded from www.Manualslib.com
®
Abbreviation
1 GND RS485/RS422 – GND
2 A- RS485/RS422 – (A -)
3 B+ RS485/RS422 – (B +)
4 Y- RS422 – (Y -)
5 Z+ RS422 – (Z +)
RS485/RS422
RS485/RS422
RS485/RS422

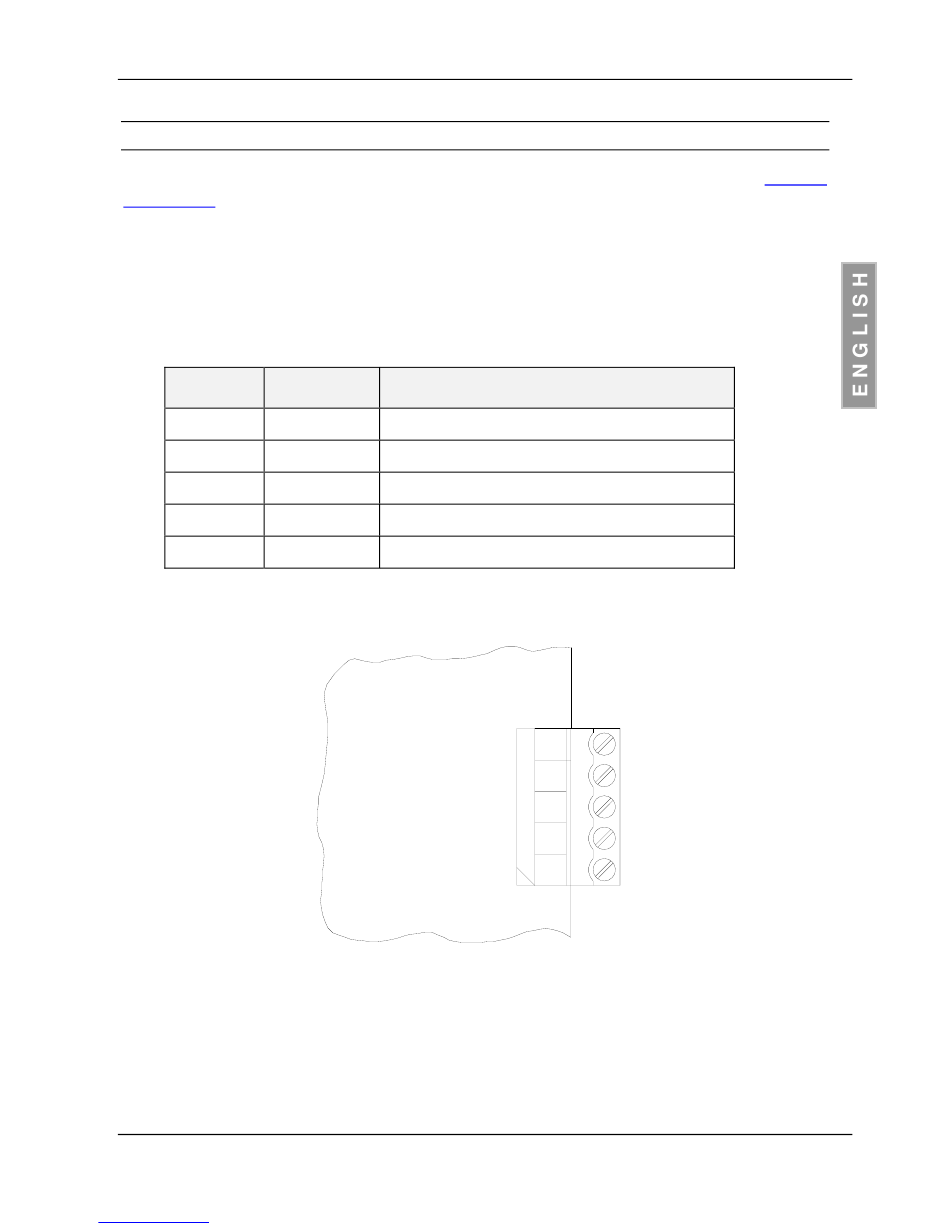

Fig. 2-11: Wiring example for the RS485/RS422 interface
manuals search engine
Installation
Description
X7
RS422 (Z+) 5
RS422 (Y-) 4
(B+)
3
(A-) 2
GND
1
Page 47 of 56
ID ISC.LRU2000
Interface
