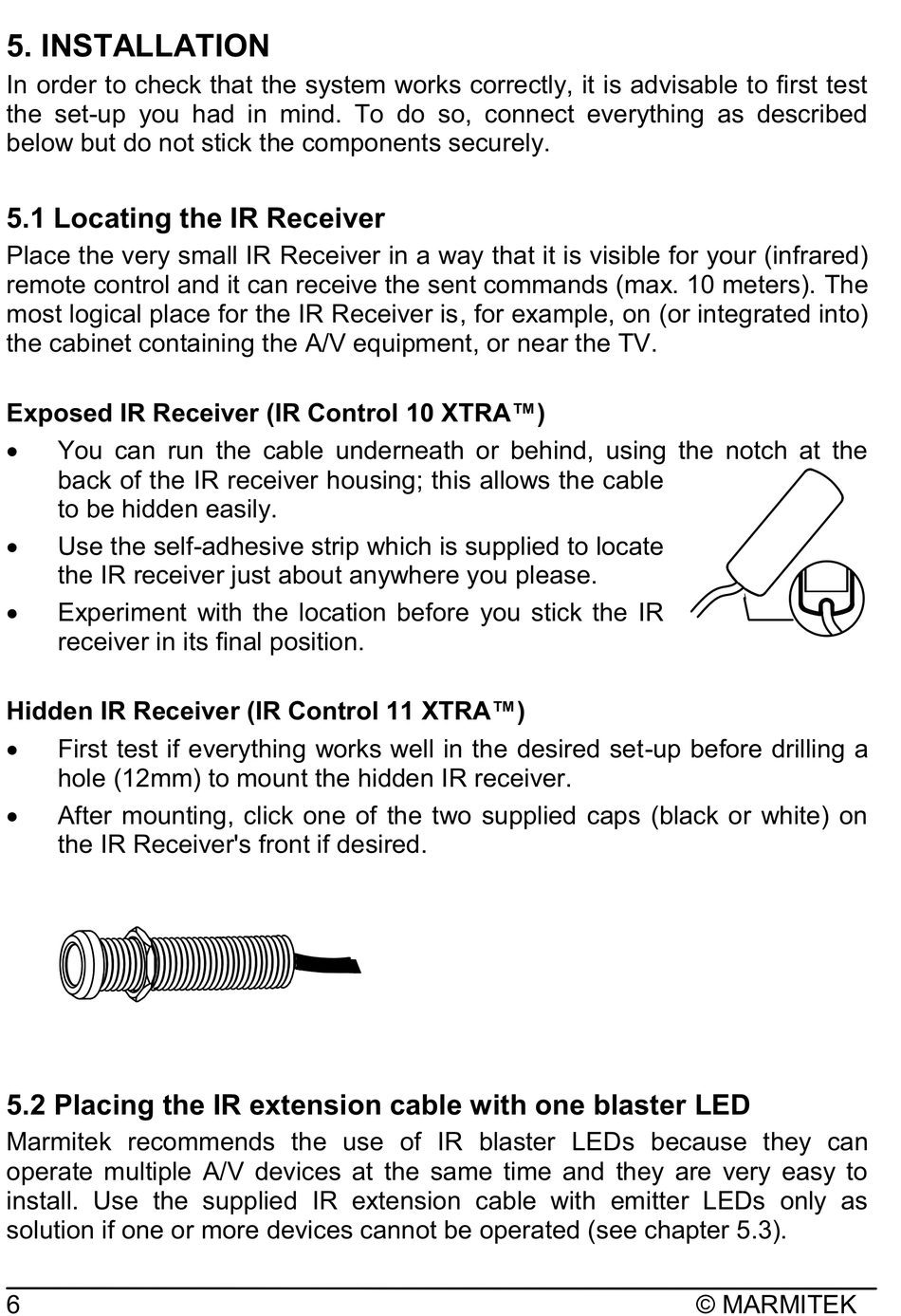

5. INSTALLATION
In order to check that the system works correctly, it is advisable to first test
the set-up you had in mind. To do so, connect everything as described
below but do not stick the components securely.

5.1 Locating the IR Receiver

Place the very small IR Receiver in a way that it is visible for your (infrared)
remote control and it can receive the sent commands (max. 10 meters). The
most logical place for the IR Receiver is, for example, on (or integrated into)
the cabinet containing the A/V equipment, or near the TV.
Exposed IR Receiver (IR Control 10 XTRA™)
x
You can run the cable underneath or behind, using the notch at the
back of the IR receiver housing; this allows the cable
to be hidden easily.
x
Use the self-adhesive strip which is supplied to locate
the IR receiver just about anywhere you please.
x
Experiment with the location before you stick the IR
receiver in its final position.
Hidden IR Receiver (IR Control 11 XTRA™)
x
First test if everything works well in the desired set-up before drilling a
hole (12mm) to mount the hidden IR receiver.
x
After mounting, click one of the two supplied caps (black or white) on
the IR Receiver's front if desired.
5.2 Placing the IR extension cable with one blaster LED
Marmitek recommends the use of IR blaster LEDs because they can
operate multiple A/V devices at the same time and they are very easy to
install. Use the supplied IR extension cable with emitter LEDs only as
solution if one or more devices cannot be operated (see chapter 5.3).
