Features

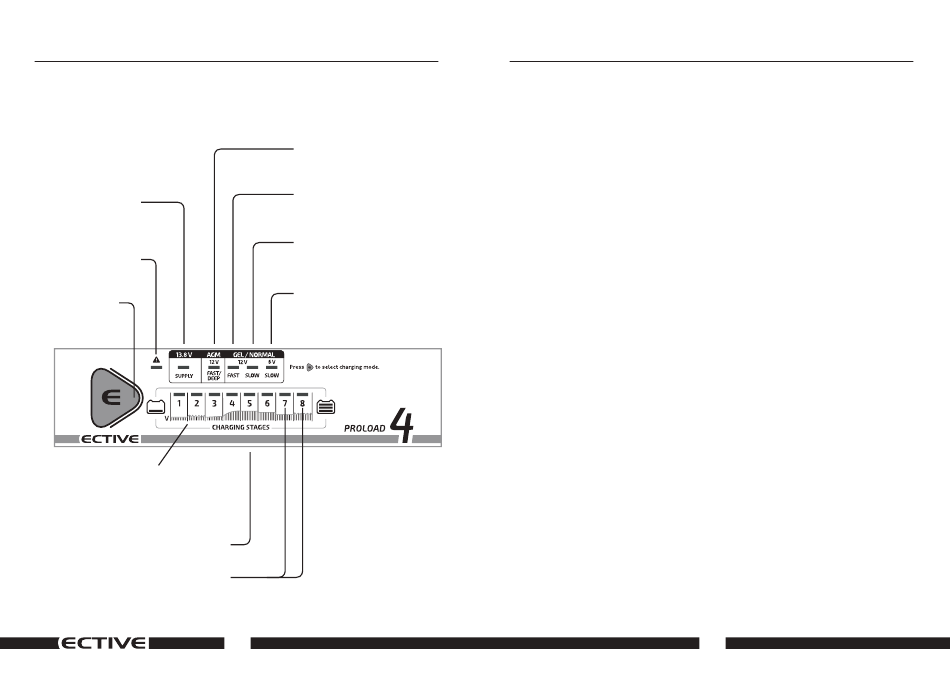

LED Display
The unit is built-in with LED display for showing charger status:
"Supply"
Orange LED:
Supply mode
Red LED: Error
MODE-Button
"1" - "6" Orange LED:
The battery is charging
"5" Orange LED:
Battery is charging to 100%
"7", "8" Green LED:
Charging process complete
"Fast/Deep" Green LED:
12 V AGM/ Deep Cycle battery in
fast charging mode
"12 V Fast" Green LED:
12 V Nor / Gel battery in
fast charging mode
"12 V Slow" Green LED:
12 V Nor / Gel battery in
slow charging mode
"6 V Slow" Green LED:
6 V Nor / Gel battery in slow
charging mode
24

Operation

PLEASE READ CAREFULLY BEFORE USING
Suitable for 6 & 12V Normal Lead Acid, Sealed, Leisure or Gel Batter-
ies between 5-120Ah
1. Preparing the battery
Firstly remove the caps from each cell and check that the level of the
liquid is sufficient in each cell. If it is below the recommended level,
top up with de-ionized or distilled water.
Note: Under no circumstances should tap water be used.
The cell caps should not be replaced until charging is complete. This
allows any gases formed during charging to escape. It is inevitable
that some minor escape of acid will occur during charging. For
permanently sealed battery, it is not necessary to carry out the
above checks.
2. Connection
Connect the positive charging lead (red) to the positive terminal post
of the battery (marked P or +). Connect the negative charging lead
(black) to the negative terminal post of the battery (marked N or -). It
is important to ensure that both DC clamps are making good contact
with their respective terminal posts.
Connect the charger's AC power cable to an AC power outlet. Once
you have connected the Proload 4 battery charger to AC power, it will
sound a tone for 0,5 seconds and the Simple Touch power panel LEDs
light for two seconds.
3. Reverse Polarity
If the DC battery clamps are connected improperly to the battery ter-
minals, the reverse polarity LED will indicate the reversed polarity.
The battery charger's warning buzzer will also sound. If this occurs
simply disconnect the battery charger from the AC power. Connect
the DC clamps correctly to the battery terminals. Reconnect the char-
ger to the AC power.
