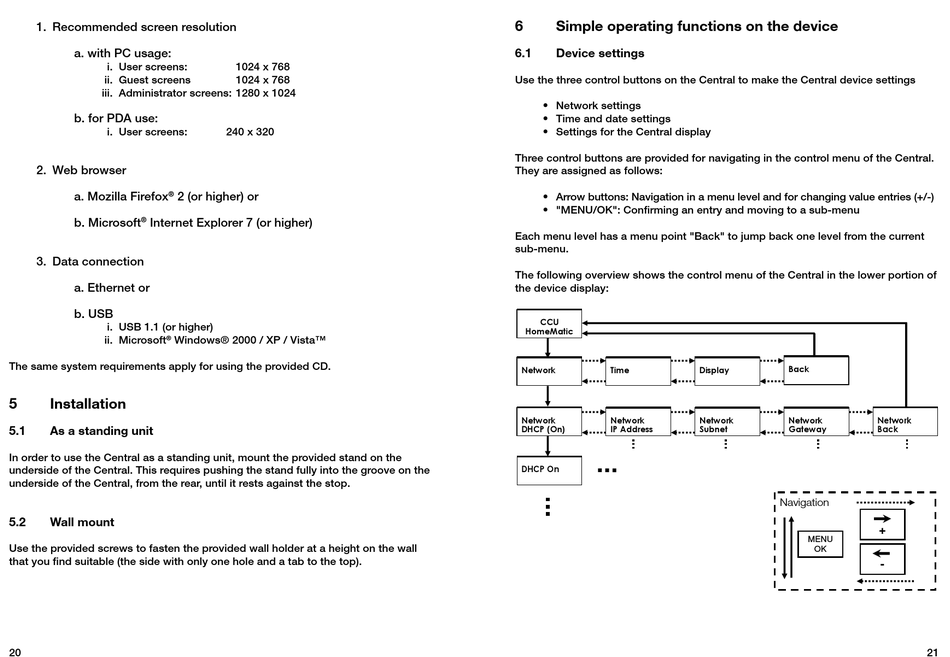

1. Recommended screen resolution
a. with PC usage:
i. User screens:
ii. Guest screens
iii. Administrator screens: 1280 x 1024
b. for PDA use:
i. User screens:
2. Web browser
a. Mozilla Firefox ® 2 (or higher) or
b. Microsoft ® Internet Explorer 7 (or higher)
3. Data connection
a. Ethernet or
b. USB
i. USB 1.1 (or higher)
ii. Microsoft Windows® 2000 / XP / Vista™
®
The same system requirements apply for using the provided CD.
5

Installation

5.1

As a standing unit

In order to use the Central as a standing unit, mount the provided stand on the
underside of the Central. This requires pushing the stand fully into the groove on the
underside of the Central, from the rear, until it rests against the stop.
5.2

Wall mount

Use the provided screws to fasten the provided wall holder at a height on the wall
that you find suitable (the side with only one hole and a tab to the top).
20
1024 x 768
1024 x 768
240 x 320
6

Simple operating functions on the device

6.1

Device settings

Use the three control buttons on the Central to make the Central device settings
• Network settings
• Time and date settings
• Settings for the Central display
Three control buttons are provided for navigating in the control menu of the Central.
They are assigned as follows:
• Arrow buttons: Navigation in a menu level and for changing value entries (+/-)
• "MENU/OK": Confirming an entry and moving to a sub-menu
Each menu level has a menu point "Back" to jump back one level from the current
sub-menu.
The following overview shows the control menu of the Central in the lower portion of
the device display:


 
 
 



  
  
Navigation
+
MENU
OK
-
21
