Connectors and control units
Line Input
1
RCA inputs for connecting lowlevel line
signals.
Highlevel Input
2
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
lowlevel line outputs.
. 3
Gain
Control for adjusting the input sensitivity of
the lowlevel Line and Highlevel Inputs.
Phase
4
Control for adjusting the phase from 0° to
180°.
TwinPower Link switch
5
Switch for operating two M ONE X amplifiers
in bridge mode.
Mono RCA/Cinch In- / Output
6
Mono RCA/Cinch signal in- or output for
bridge mode operation in TwinPower Link
mode.
Speaker Output
13
Speaker outputs for connecting subwoofers.
Power & Protect LED
14
This LED indicates the operating mode of the
amplifier.
Fuse
15
Input fuses – 3 x 40 Ampere.
14

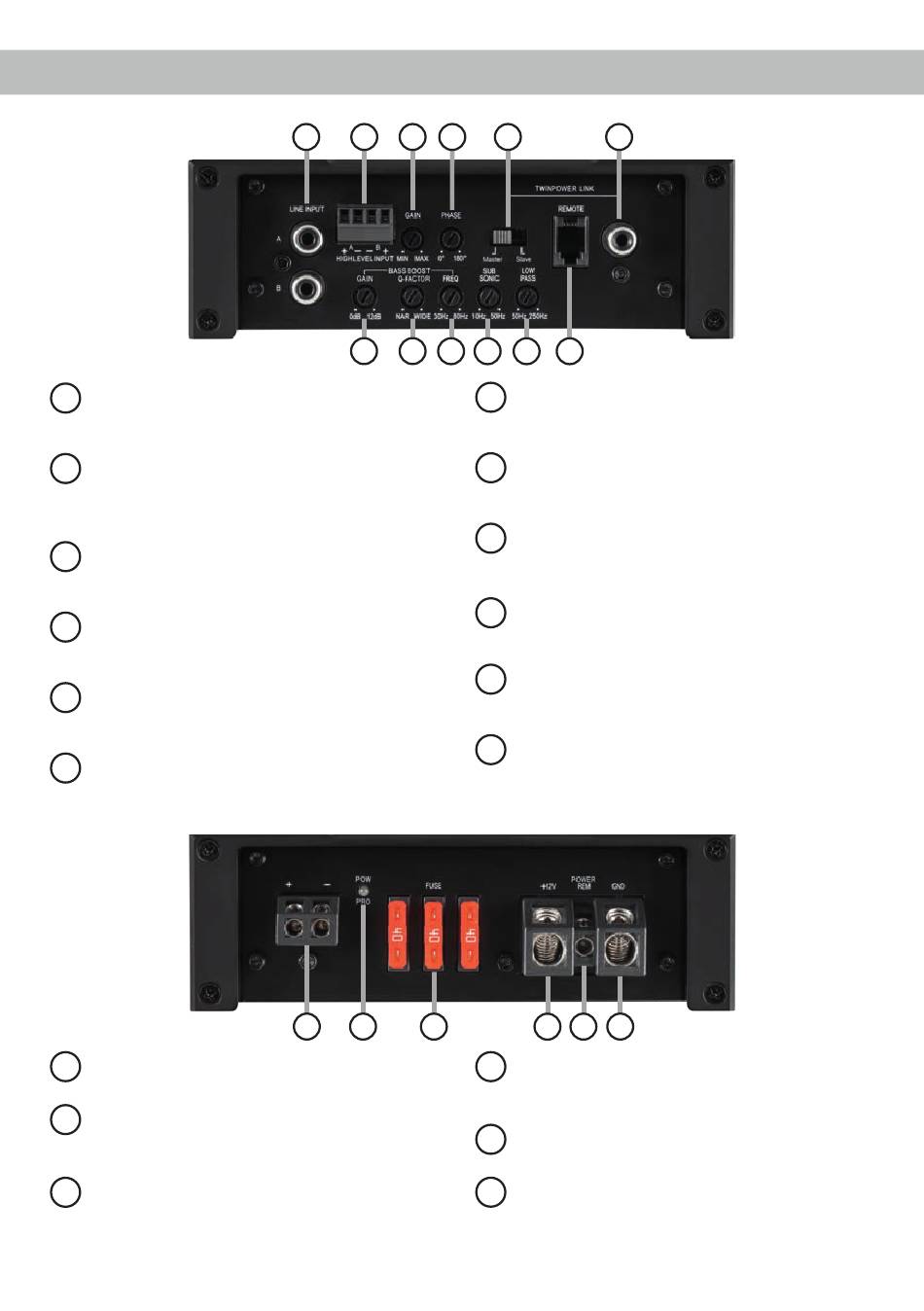

1 2 3 4
7 8 9
13 14 15
5 6
10 11 12
Bass Boost Gain
7
Control for adjusting the bass boost from 0 to
12 dB.
Bass Boost Q-Factor
8
Control for adjusting the Q factor (bandwidth)
of the Bass Boost
Bass Boost Frequency
9
Control for adjusting the center frequency of
the Bass Boost from 30 to 80 Hz.
Subsonic
10
Control for adjusting the subsonic filter from
10 to 50 Hz.
Lowpass
11
Control for adjusting the lowpass filter from
50 to 250 Hz.
Remote
12
Input for connecting the included cable
remote control for volume adjustment.
16 17 18
+12 V
16
Connector for the +12 V power cable of the
positive terminal of the battery.
REM
17
Connector for the remote cable.
GND
18
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
