YELLOW
PURPLE
GRAY
WHITE

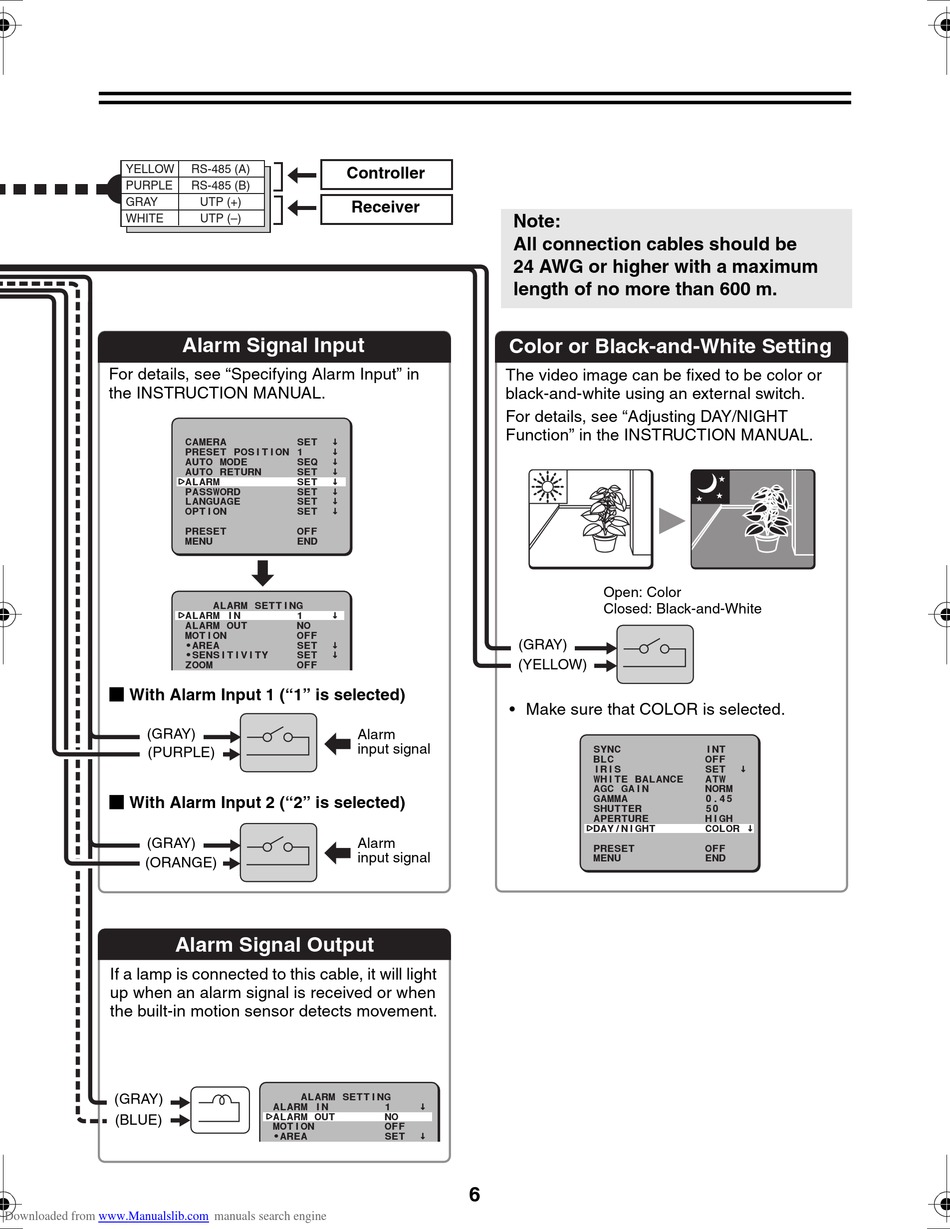

Alarm Signal Input
For details, see "Specifying Alarm Input" in
the INSTRUCTION MANUAL.
·ALARM
·ALARM IN
b With Alarm Input 1 ("1" is selected)
(GRAY)
(PURPLE)
b With Alarm Input 2 ("2" is selected)
(GRAY)
(ORANGE)
Alarm Signal Output
If a lamp is connected to this cable, it will light
up when an alarm signal is received or when
the built-in motion sensor detects movement.
(GRAY)
(BLUE)
Downloaded from
www.Manualslib.com
RS-485 (A)
Controller
RS-485 (B)
UTP (+)
Receiver
UTP (–)
CAMERA
SET
y
PRESET POSITION
1
y
AUTO MODE
SEQ
y
AUTO RETURN
SET
y
SET
y
PASSWORD
SET
y
LANGUAGE
SET
y
OPTION
SET
y
PRESET
OFF
MENU
END
ALARM SETTING
1
y
ALARM OUT
NO
MOTION
OFF
uAREA
SET
y
uSENSITIVITY
SET
y
ZOOM
OFF
Alarm
input signal
Alarm
input signal
ALARM SETTING
ALARM IN
·ALARM OUT
MOTION
uAREA
manuals search engine
Note:
All connection cables should be
24 AWG or higher with a maximum
length of no more than 600 m.
Color or Black-and-White Setting
The video image can be fixed to be color or
black-and-white using an external switch.
For details, see "Adjusting DAY/NIGHT
Function" in the INSTRUCTION MANUAL.
(GRAY)
(YELLOW)
• Make sure that COLOR is selected.
1
y
NO
OFF
SET
y
6
Open: Color
Closed: Black-and-White
SYNC
INT
BLC
OFF
IRIS
SET
y
WHITE BALANCE
ATW
AGC GAIN
NORM
GAMMA
0.45
SHUTTER
50
APERTURE
HIGH
·DAY/NIGHT
COLOR y
PRESET
OFF
MENU
END
