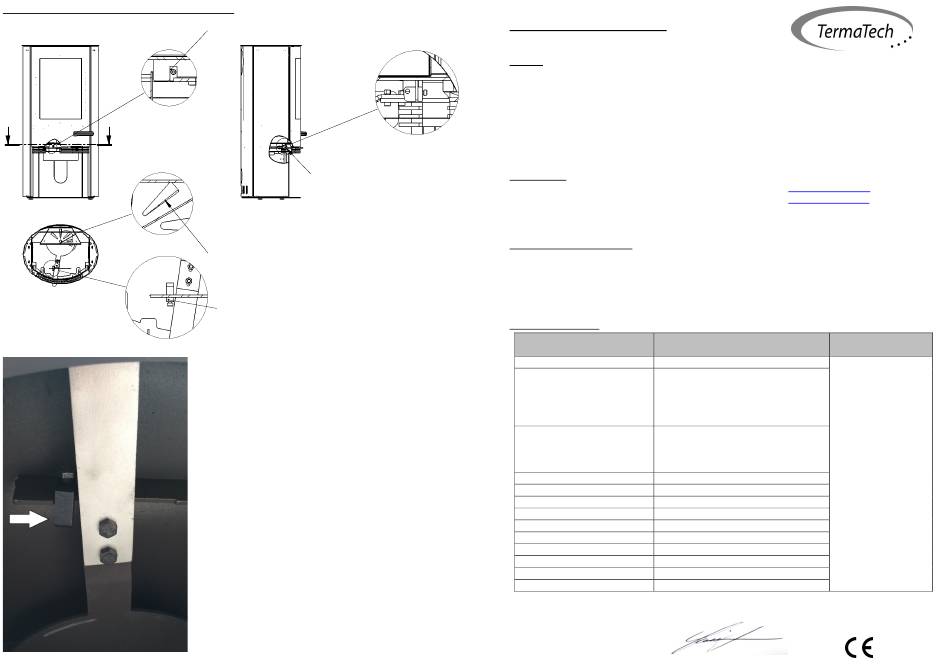

Damper control unit for smoke control areas
A A
DETAIL B
SCALE 1 : 2
SECTION A-A
DETAIL D
SCALE 1 : 2
30
Bracket and screw
Bracket and screw
DETAIL E
SCALE 1 : 2
OPEN
The Bracket make the secondary air open with ca. 40%
If you change the direction of the bracket the
secondary air will be open with ca. 30%.
Bracket and screw
Material: Scale: Tegningsnr. / emnenavn:
40102 TT20 Stove assy - smoke - GB
1:10
Title:
TT20 Stove assy - smoke -GB
Model:
Jegstrupvej 60
DK 8361 Hasselager TT20
PROPRIETARY AND CONFIDENTIAL. The information contained in this drawing is the sole property of TermaTech AS.
Any reproduction in part or as a whole without the written permission of TermaTech AS i prohibited.
Declaration of Performance
TT22-CPR-2013-Version 3
Product:
Product type/application:
Type:
Fuel:
Productions no.
DETAIL C
Manufacturer:
SCALE 1 : 2
Certification and requirements:
AVCP system:
European standard:
Certification:
Declared performance:
Essential characteristics
Revision Rev.
25. april 2014 .. Reaction to fire
Created date
25. april 2014 Distance to combustible materials Rear: min.
Initialer: Stk. pr. ovn:
-
EMN
Denne tegning er vor ejendom, den må ikke kopieres på nogen måde
og ikke gøres tilgængelig for trediemand uden vor skriftelige tilladelse
Emission of combustion products
Electrical safety
Maximum operating pressure
Risk of burning fuel falling out
Surface temperature
Clean ability
Mechanical strength
Emission of hazardous materials
Flue gas temperature
Output
Energy efficiency
The undersigned is responsible for the manufacturing and conformity with the declared performance.
Viby 7.3.2013
Room heater burning solid fuel without hot water supply
TT22: S01-640/641, TT22S: S01-642/643, TT22H: S01-644/645,
TT22HS: S01-646/647, TT22R: S01-648/649 TT22HST: S01-650/651
TT22RP: S01-654, TT22RPS: S01-656
Wood
Please see nameplate on the back of the oven
TermaTech A/S E-mail: info@termatech.com
Gunnar Clausens Vej 36 Web: www.termatech.com
8260 Viby J Tel.: +45 8742 0035
Denmark
System 3
CE/DS/EN 13240:2001 + A2:2004
Teknologisk Institut, notified body no. 1235, has performed determination of
the product type and declared performance on the basis of type testing and
issued test report no. TI 300-ELAB-1778-EN + 300-ELAB-1778-EN-Rev-1
Performance
AI
min. 150 / 50 mm
Sides: min. 450 mm
To the corner 45⁰: min. 150 mm
Other safety distances – please see User
and mounting manual
CO = 0,07 %
NOx = 101 mg/m³
OGC = 95 mgC/Nm³
PM = 14 mg/m³
NPD
NPD
Passed
Passed
Passed
Passed
Passed
259° Celsius
7,5 KW
82 %
Søren Toft______________________________
Harmonised technical
specification
CE/DS/EN 13240:2001 +
A2:2004
