Cpu_Fan1, Pump_Fan1, Sys_Fan1~8: Fan Connectors - MSI MEG Z490 GODLIKE Kurzanleitung

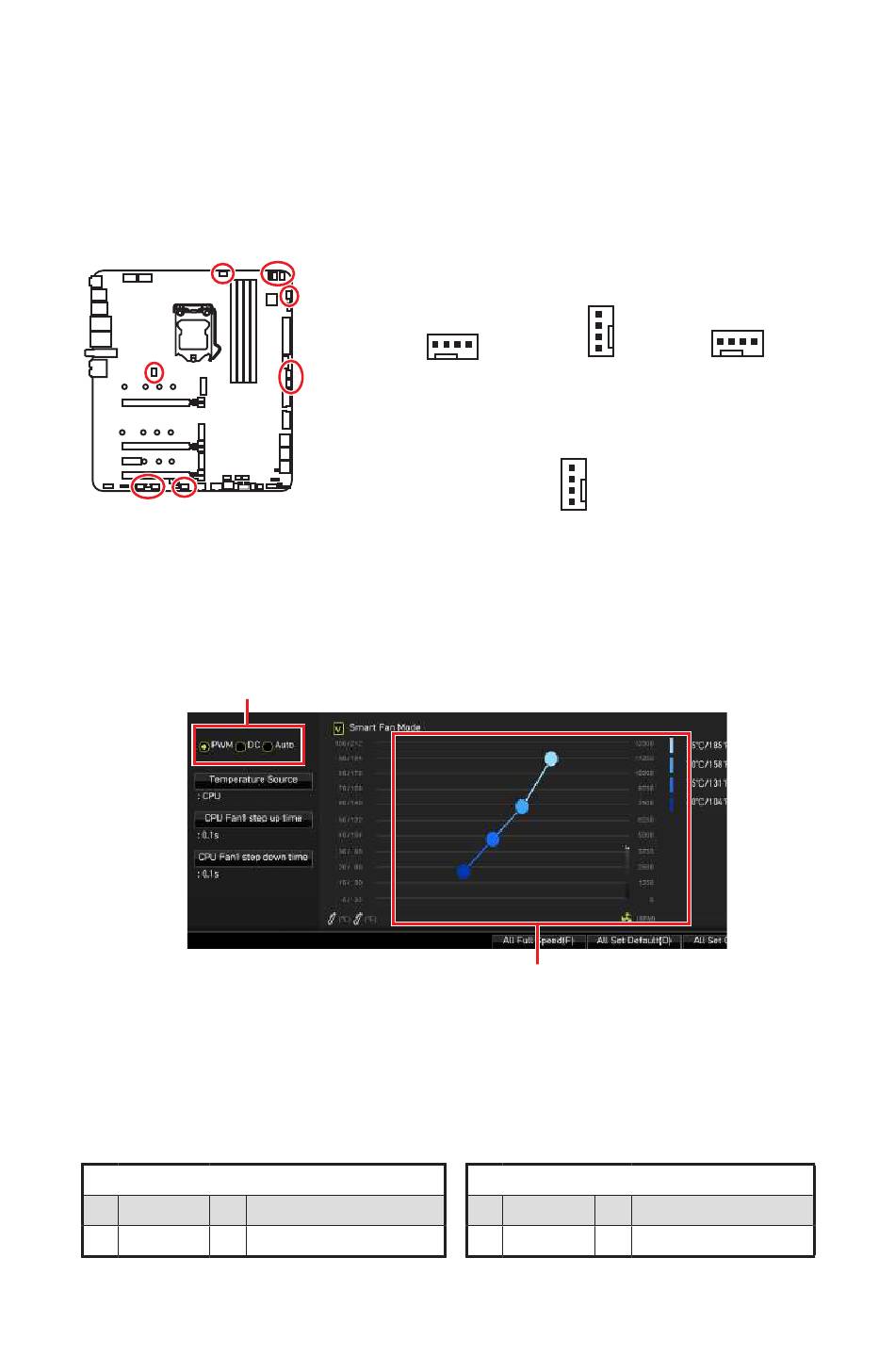

CPU_FAN1, PUMP_FAN1, SYS_FAN1~8: Fan Connectors

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode.
PWM Mode fan connectors provide constant 12V output and adjust fan speed with
speed control signal. DC Mode fan connectors control fan speed by changing voltage.
The auto mode fan connectors can automatically detect PWM and DC mode. However,
you can follow the instruction below to adjust the fan connector to PWM or DC Mode
manually.
Switching fan mode and adjusting fan speed
You can switch between PWM mode and DC mode and adjust fan speed in BIOS >
HARDWARE MONITOR.
Select PWM mode or DC mode
⚠
Important
Make sure fans are working properly after switching the PWM/ DC mode.
Pin definition of fan connectors
PWM Mode pin definition
1 Ground
3 Sense
34
Overview of Components
Default Auto Mode fan connectors
Default PWM Mode fan connectors
There are gradient points of the fan speed that allow you to adjust
fan speed in relation to CPU temperature.
2 +12V
4 Speed Control Signal
1
1
CPU_FAN1 SYS_FAN1~5
1
PUMP_FAN1
DC Mode pin definition
1 Ground
3 Sense
1
SYS_FAN6~8
2 Voltage Control
4 NC
