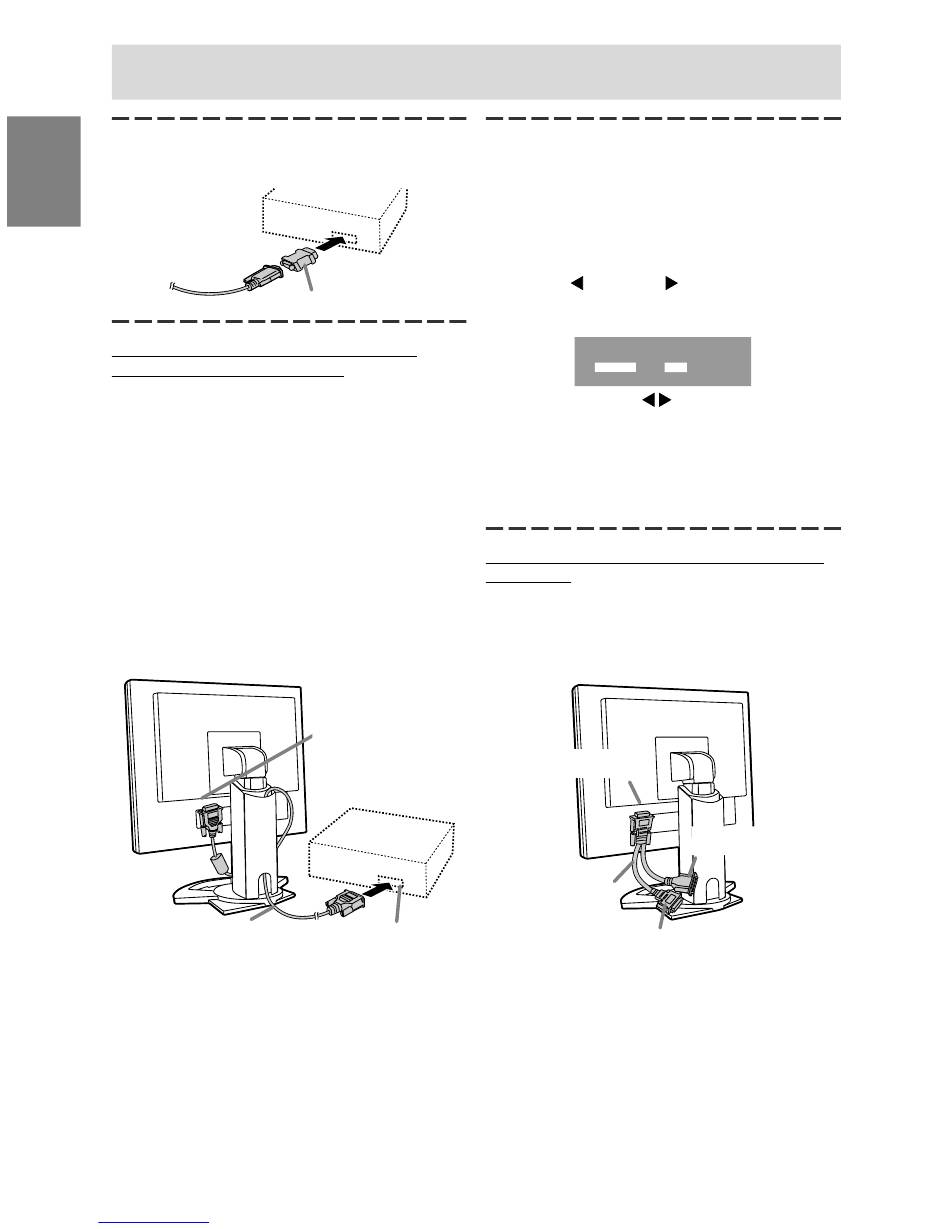

Connecting the monitor and turning the monitor on and off
If connecting to a D-sub 15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal cable.
When connecting using separately sold
digital or analog signal cables
The separately sold display cable enables connec-
tion between the DVI-I input terminal on the display
and the digital or analog RGB output terminal of
the computer.
When connecting to a digital RGB output terminal:
- Use a digital signal cable (model name: NL-
C01E)
- For digital RGB connection, the monitor has an
input for connecting to a computer with a DVI-
compatible output connector (DVI-D 24 pin or
DVI-I 29 pin) and SXGA output capability.
(Depending on the type of computer to be
connected, the display may not work correctly.)
When connecting to an analog RGB output terminal:
- Use an analog signal cable (model name: NL-
C02E).
Display cable
(purchased separately)
- Paying attention to connector direction, firmly
insert the signal cable to terminal, and then
tighten the screws at both sides.
Note:
- When using digital or analog signal cables, set
[INPUT-2] to [1 LINE]. (p.21, 24)
Downloaded from www.Manualslib.com
Macintosh conversion adapter
DVI-I input terminal
RGB output terminal
manuals search engine
Set the monitor as follows when establishing a
digital connection with a Power Mac using an ADC-
DVI adapter made by Belkin. (Operation has been
checked with the Power Mac G4 M7627J/A)
- Perform settings with the Power Mac power
supply off.
1.After connecting the power cord, turn on the
monitor's main power.
2.Press the button and
and while doing this press the POWER button
(i.e. turn the power on).
MAC DIGITAL
INPUT-2
3.Set to "ON" with the
- Do not set to [ON] if you are not using a Belkin
ADC-DVI adapter, as this may result in
incorrect display.
4. Press the power button, and turn off the monitor
power.
This completes setting.
When connecting using a separately sold 2-
input cable
The separately sold 2-input cable (model name:NL-
C03J) enables 2 system connection.
1.Connect a 2-input cable (purchased separately)
to the DVI-I input terminal on the display.
DVI-I input terminal
2-input cable
(purchased
separately)
DVI-D24 pin
12
button simultaneously,
OFF ON
buttons.
mini D-sub 15 pin
