Startup; Check Connections; Turning On The System; Check Output Values - Balluff BTL5-H1xx-Mxxxx-B/Z-S 92/KA serie Datenblatt

BTL5-H1_ _-M_ _ _ _-B/Z-S 92/KA_ _
Micropulse Linear Transducer - Rod Style
4 Wiring (cont.)
4 CAN_H
5 CAN_L
Potential free
CAN-Interface
1 CAN_GND
3 0 V (GND)
2 +24 V
BTL5-H1...S 92

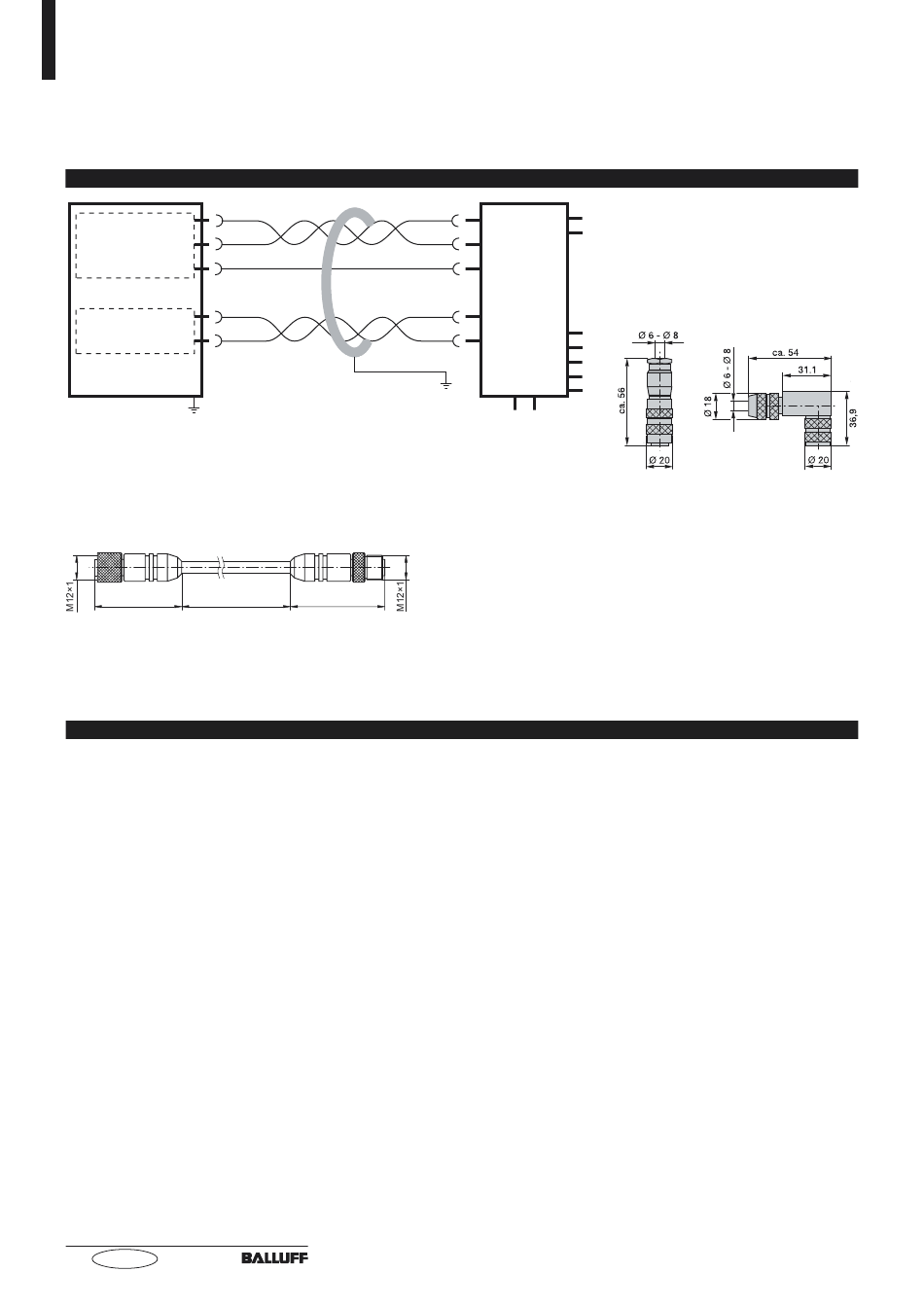

Fig. 4-2: BTL5-H1...S 92 with controller/master, Connection example
BKS-S92-16/GS92-...
43 L
Fig. 4-3: Connection cable, lengths: 02; 05; 10 m
5

Startup

5.1

Check connections

Although the connections are polar-
ity reversal protected, components
can be damaged by improper con-
nections and overvoltage. Before
you apply power, check the connec-
tions carefully.
5.2

Turning on the system

Note that the system may execute
uncontrolled movements when first
turned on or when the transducer is
part of a closed-loop system whose
parameters have not yet been set.
6
english
CANopen
controller/
master
46.5
Therefore make sure that no haz-
ards could result from these situa-
tions.
5.3

Check output values

After replacing or repairing a trans-
ducer, it is advisable to verify the
values for the start and end position
of the magnet in manual mode. If
values other* than those present
before the replacement or repair are
found, a correction should be made.
* Transducers are subject to modifi-
cation or manufacturing tolerances.
straight right angle
BKS-S 92-00 BKS-S 93-00
No. 99-1436-812-05 No. 99-1436-822-05
Binder Corp. Binder Corp.
Cable Entry
(PG 9 fitting)
Fig. 4-4: Connectors (optional)
5.4

Check functionality

The functionality of the transducer
system and all its associated com-
ponents should be regularly
checked and recorded.
5.5

Fault conditions

When there is evidence that the
transducer system is not operating
properly, it should be taken out of
service and guarded against unau-
thorized use.
