GB
Functions of the DIP-switches
DIP switch 1 and 2:
Volume flow "Main stage" (Full power). The combination of
DIP switch 1 and 2 sets the volume flow of the "Main stage".
(Input clamp 1 of the clamp connector)
DIP-switches 3 and 4:
Volume flow "Lower stage". The combination of DIP-switches
3 and 4 sets the volume flow of the "Lower stage". (Input
clamp 2 of the clamp connector)
DIP-switches 5 and 6:
Turn-off time delay. The combination of DIP-switches 5 and
6 sets the turn off time delay. After turning off the fan, it still
remains blowing on the main stage for the configured time.
DIP-switch 7:
Turn-on time delay. If the switch is set "ON", the fan starts
blowing 90 seconds after turn-on.
DIP-switch 8:
Interval time. The fan starts blowing automatically every 4
hours (Interval time) for 30 minutes (Operating time) on the
configured "Lower stage" (Refer to DIP-switch 3 and 4)
DIP-switch 9:
Acoustical filter replacement indicator. Setting "ON" turns on
the indicator.
After reaching a calculated total of 25000 m³ of volume flow,
the acoustical filter replacement indicator activates. Reset the
indicator by using the "Fan-switch" (not included, Fan-switch
=> OFF/ON/OFF) or automatically after 5 cycles. (1 cycle
= 24 hours)
DIP-switch 10:
Fan-mode. Setting "OFF" means that the fan regulates at a
constant level of volume flow. Setting "ON" means that the
fan regulates at a constant level of rotation speed.

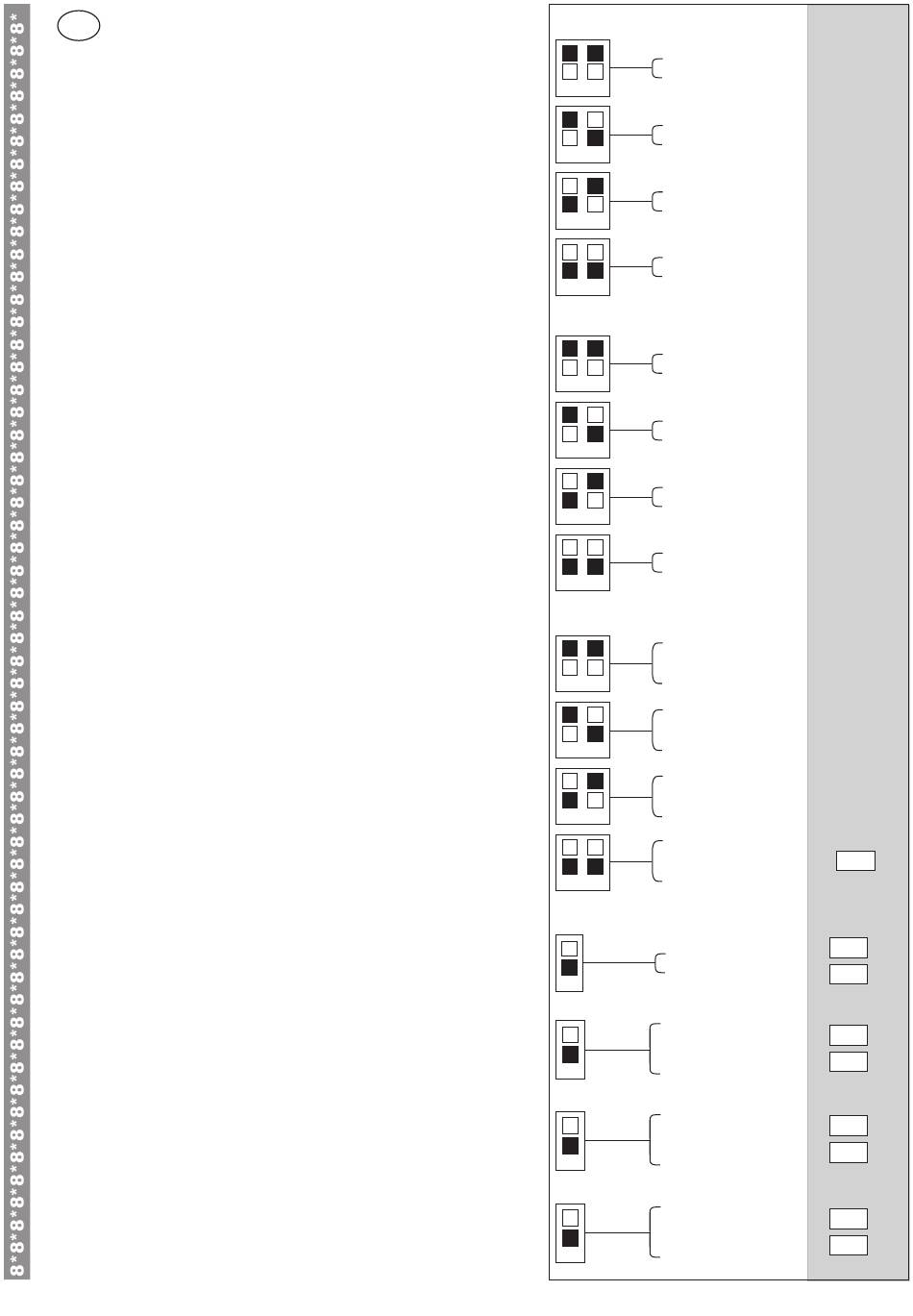

Fig. 17
Volume flow - Main stage (VL)
1
2
1
2
1
2
1
2
Volume flow - Lower stage (TL)
3
4
3
4
3
4
3
4
Turn-off time delay
5
6
5
6
6
5
5
6
Turn-on time delay
7
Interval time
8
Acoustical filter replacement indicator
9
Fan-mode
10
12
Volume flow
=
100 m³/h
Volume flow
=
60 m³/h
Volume flow
40 m³/h
=
Volume flow
=
30 m³/h
Volume flow
=
40 m³/h
Volume flow
=
= =
30 m³/h
Volume flow
=
20 m³/h
Volume flow
=
15 m³/h
Turn-off time
=
delay
Turn-off time
= = =
16 Min.
delay
Turn-off time
=
delay
Turn-off time
=
delay
=
90 Seconds
OFF
every 4 hours for
=
30 min. on the
OFF
"Lower stage"
acoustical
=
signal
OFF
constant level of
=
volume flow
OFF
30 Min.
8 Min.
OFF
ON
ON
ON
ON
