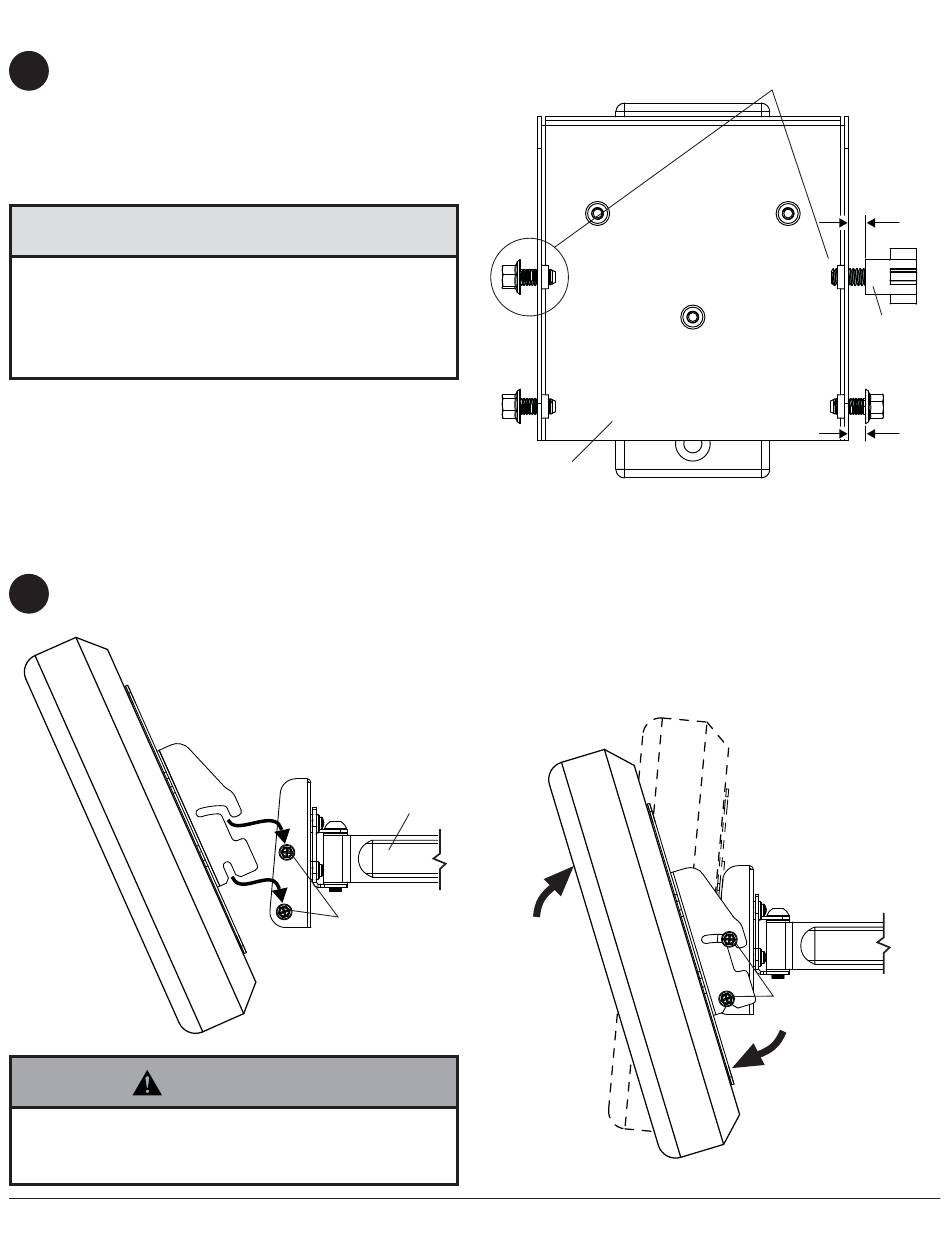

Attaching Tilt Knob to Wall Mount (optional)
For tool-less tilt adjustment, replace one 1/4-20 x
4
1/2" screw with tilt knob (O). Hand thread tilt knob
(O) into wall mount (A) leaving 1/4" exposed thread
as shown in front view.
NOTE: Be sure four 1/4-20 x 1/2" screws have 1/4"
exposed thread.
CAUTION
• Do not tighten screws with excessive force.
Overtightening can cause damage to mount. Tighten
screws to 20 in. • lb (2.26 N.M.) maximum torque.
• Be careful not to pinch fi ngers when opening and
closing mount from the wall.

Installing and Removing Flat Panel Screen

To attach screen to wall mount (A), hook tilt bracket
5
onto four 1/4-20 x 1/2" screws.
WARNING
• Do not lift more weight than you can handle. Use ad-
ditional man power or mechanical lifting equipment
to safely handle placement of the screen.
Adjust screen to desired tilt (15° forward,
5° backward), then tighten four 1/4-20 x 1/2" screws.
Hold screen securely to remove from mount. Loosen four
1/4-20 x 1/2" screws and lift screen away to disengage tilt
bracket from mount.
A
1/4-20 1/2"
X
SCREWS
9 of 46
REPLACE LEFT OR RIGHT
1/4-20 x 1/2" SCREW WITH TILT KNOB
A

FRONT VIEW

ISSUED: 01-27-08 SHEET #: 095-9283-3 06-12-09
1/4"
O
1/4"
1/4-20 1/2"
X
SCREWS
