Mounting and Removing Flat Panel Screen

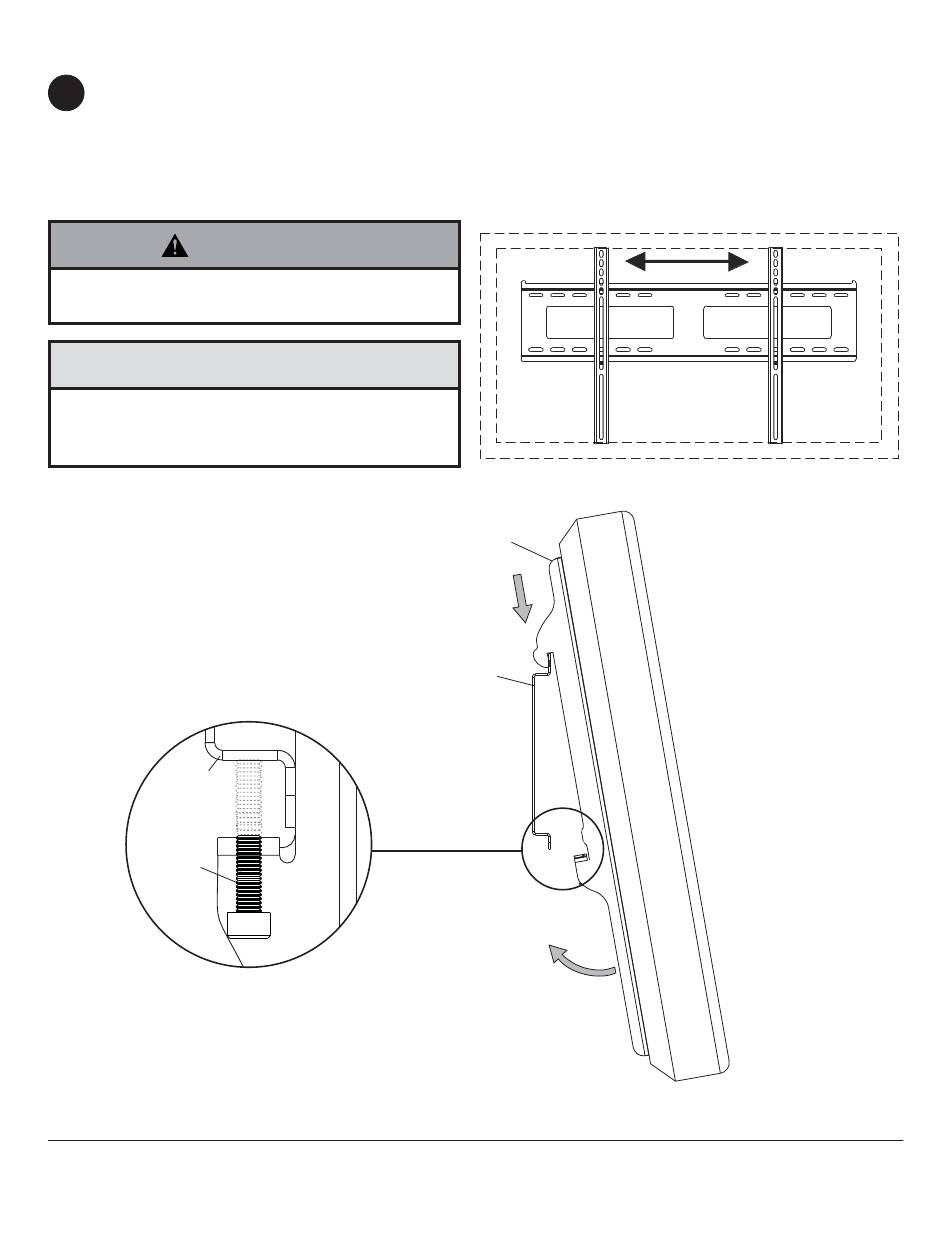

Hook adapter brackets (BB) onto wall plate (AA). Then slowly swing screen in as shown. Turn safety screws, using
3
allen wrench (EE), clockwise at least six times to prevent screen from being removed as shown in detail 1 of fi gure
3.1.
Screen can be adjusted horizontally if desired as shown in fi gure 3.2.
NOTE: To lock the screen down, tighten safety screws to wall plate as shown in detail 1.
To remove screen from mount, loosen safety screws, swing screen away from mount and lift screen off of mount.
WARNING
• Always use an assistant or mechanical lifting equip-
ment to safely lift and position the fl at panel screen.
CAUTION
• Do not tighten screws with excessive force. Overtight-
ening can cause damage to mount. Tighten screws to
40 in. • lb (4.5 N.M.) maximum torque.
AA
SAFETY
SCREWS
DETAIL 1
AA
BB
8 of 34
BB
fi g 3.1
