Mounting and Removing Flat Panel Screen

• Always use an assistant or mechanical lifting equipment to safely lift and position the fl at panel screen.

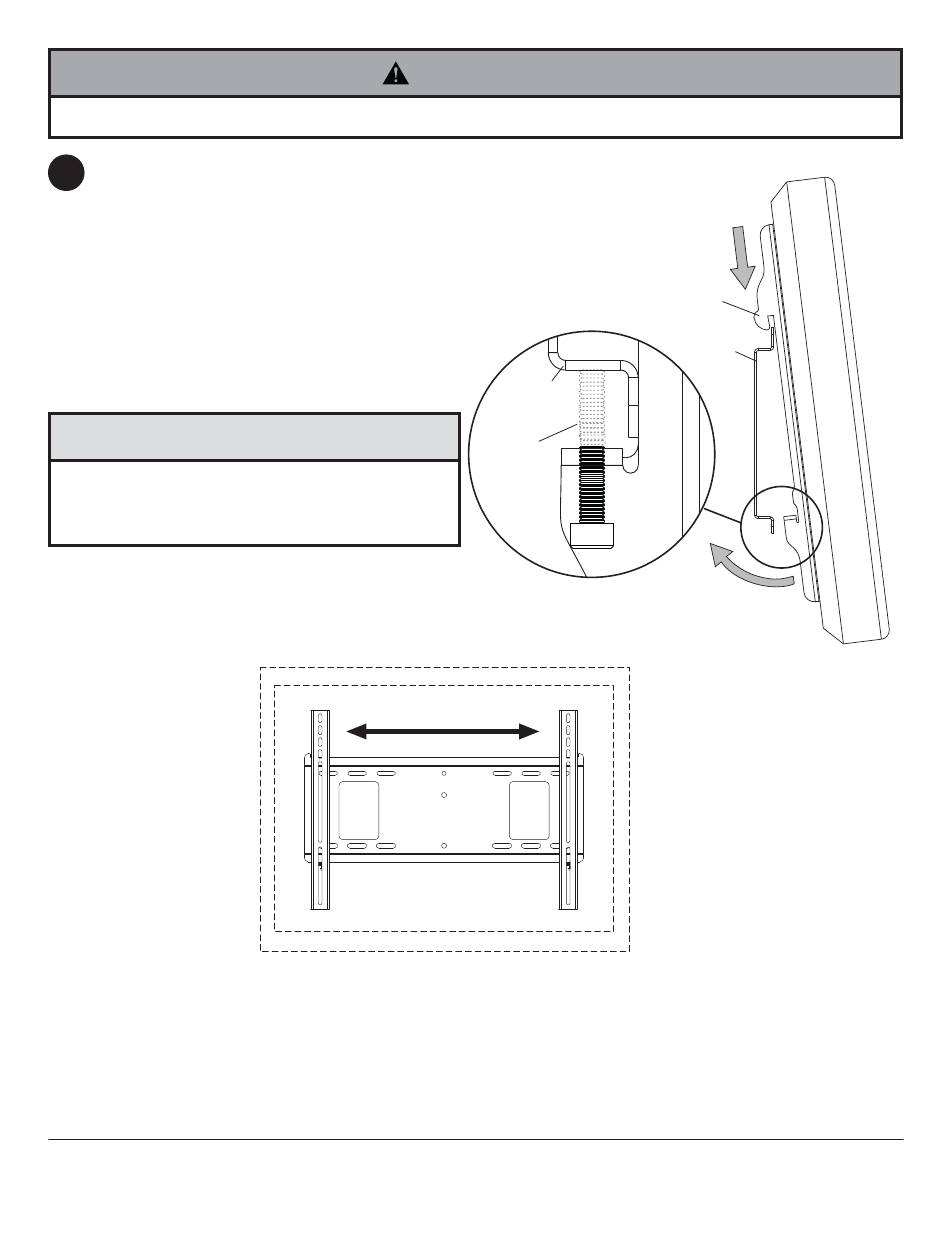

Hook adapter brackets (BB) onto wall plate (AA).
3
Then slowly swing screen in as shown. Turn safety
screws, using allen wrench (EE), clockwise at least six
times to prevent screen from being removed as shown
in detail 1 of fi gure 3.1.
Screen can be adjusted horizontally if desired as
shown in fi gure 3.2.
NOTE: To lock the screen down, tighten security
screws to wall plate as shown in detail 1.
To remove screen from mount, loosen safety/security
screws, swing screen away from mount, and lift
screen off of mount.
CAUTION
• Do not tighten screws with excessive force. Overtight-
ening can cause damage to mount. Tighten screws to
40 in. • lb (4.5 N.M.) maximum torque.
WARNING
AA
SECURITY
SCREWS
DETAIL 1
fi g. 3.2
8 of 34
