4.4.2 Installing the position indicator on the
DAS 800/1000 (VAS 6430)
1. Remove the position indicator from the
DAS 800/1000 (VAS 6430) (Abb. 5, item 1).
1

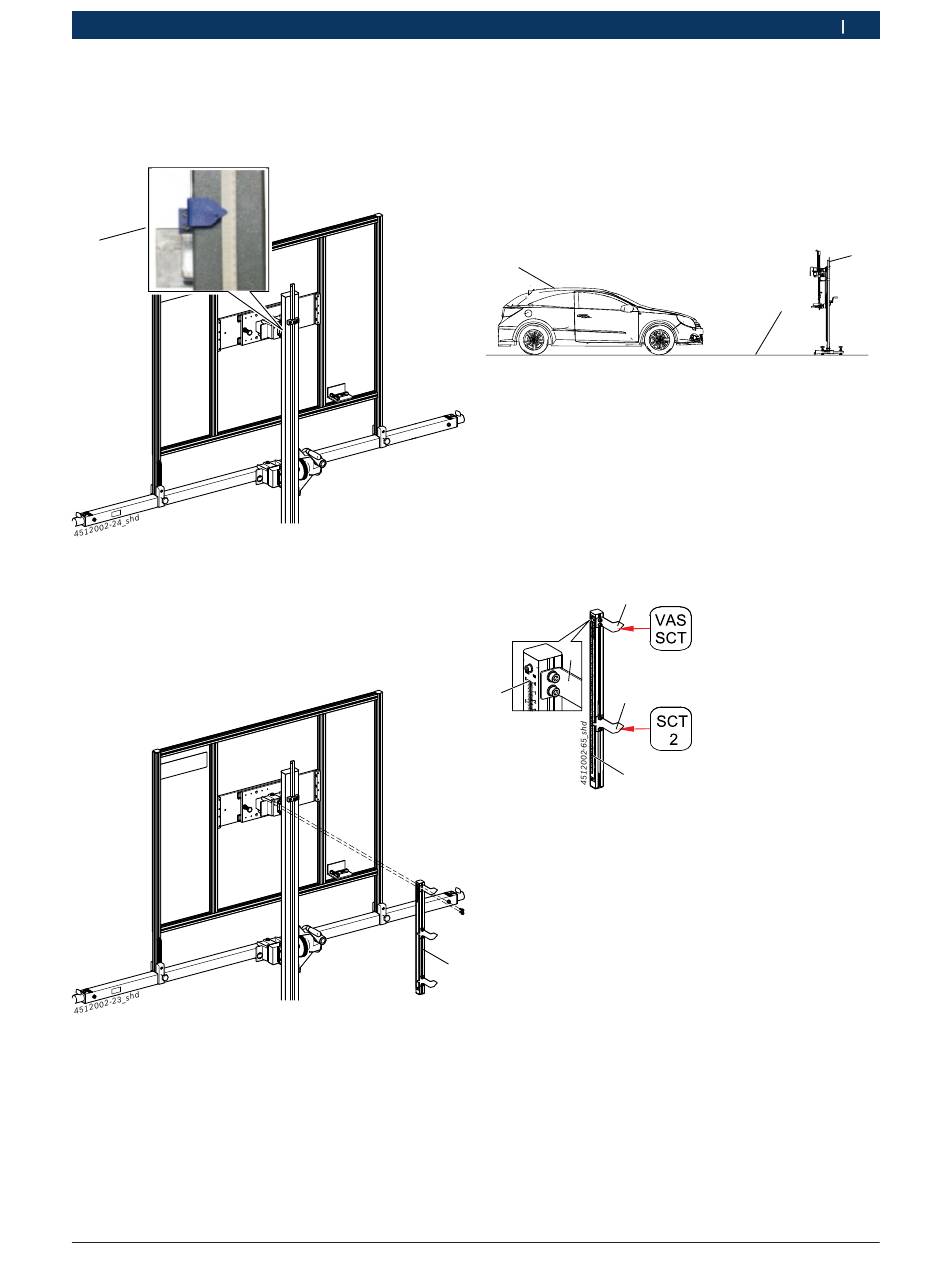

Abb. 5: DAS 800/1000 (VAS 6430) position indicator
1 DAS 800/1000 (VAS 6430) position indicator
2. Attach the position indicator (1 690 381 214)
from the scope of delivery of the SCT 141x to the
DAS 800/1000 (VAS 6430).
Abb. 6: Attaching the position indicator
1 Position indicator (1 690 381 214) of the SCT 141x
Robert Bosch GmbH
SCT 141x assembly | SCT 141x | 21
4.4.3 Setting the position indicator without an
offset
On a measurement bay without an offset, the "SCT
2" position indicator is used. A measurement bay wi-
thout an offset means that the vehicle (Abb. 7, item
2) rests on the same surface (Abb. 7, item 1) as the
DAS 800/1000 (VAS 6430) (Abb. 7, item 3) during cali-
bration.
2
Abb. 7: Measurement bay without offset
1 Surface on which the vehicle and the DAS 800/1000 (VAS 6430)
rest
2 Vehicle
3 DAS 800/1000 (VAS 6430)
1. Remove the "SCT 1" position indicator if it is at-
tached to the position indicator 1 690 381 214.
2. Slide the "SCT 2" position indicator to 400 mm on
the scale on the position indicator (Abb. 8, item 3)
and secure it.
1
1
2
3
3
Abb. 8: Position indicator with 2 indicators
1 "VAS SCT" position indicator for ground-level measurement bays
and the VW measurement program
2 "SCT 2" position indicator for very low calibration heights
3 Scale on the position indicator
1
en
3
1
