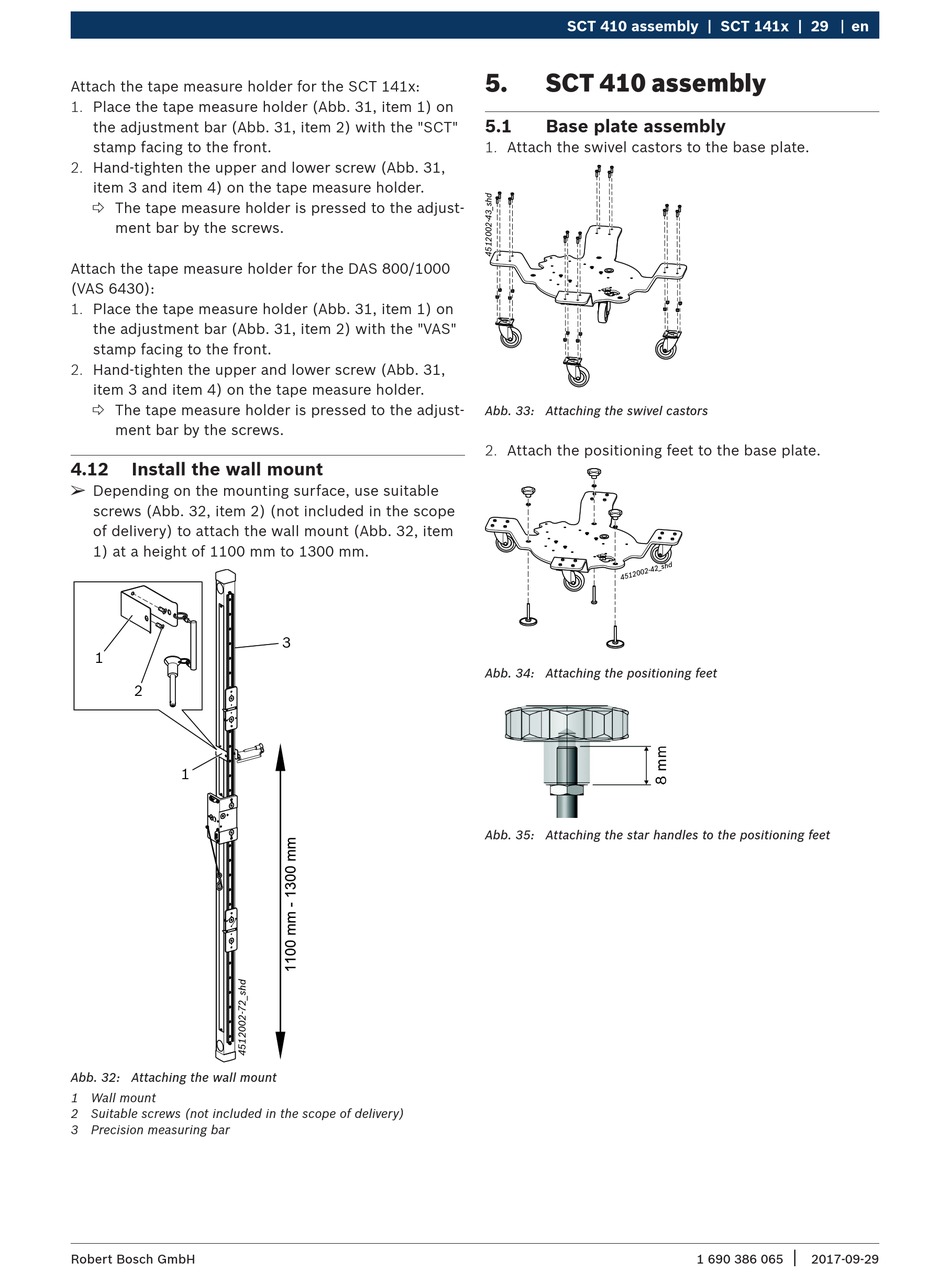

Attach the tape measure holder for the SCT 141x:
1. Place the tape measure holder (Abb. 31, item 1) on
the adjustment bar (Abb. 31, item 2) with the "SCT"
stamp facing to the front.
2. Hand-tighten the upper and lower screw (Abb. 31,
item 3 and item 4) on the tape measure holder.
 The tape measure holder is pressed to the adjust-
ment bar by the screws.
Attach the tape measure holder for the DAS 800/1000
(VAS 6430):
1. Place the tape measure holder (Abb. 31, item 1) on
the adjustment bar (Abb. 31, item 2) with the "VAS"
stamp facing to the front.
2. Hand-tighten the upper and lower screw (Abb. 31,
item 3 and item 4) on the tape measure holder.
 The tape measure holder is pressed to the adjust-
ment bar by the screws.
4.12

Install the wall mount

¶
Depending on the mounting surface, use suitable
screws (Abb. 32, item 2) (not included in the scope
of delivery) to attach the wall mount (Abb. 32, item
1) at a height of 1100 mm to 1300 mm.
1
2
1
Abb. 32: Attaching the wall mount
1 Wall mount
2 Suitable screws (not included in the scope of delivery)
3 Precision measuring bar
Robert Bosch GmbH
3
SCT 410 assembly | SCT 141x | 29
5.

SCT 410 assembly

5.1

Base plate assembly

1. Attach the swivel castors to the base plate.
Abb. 33: Attaching the swivel castors
2. Attach the positioning feet to the base plate.
Abb. 34: Attaching the positioning feet
Abb. 35: Attaching the star handles to the positioning feet
en
|
1 690 386 065 2017-09-29
