Ersatzteilübersicht Und Ersatzteilliste - Trotec Pac 4600 Bedienungsanleitung

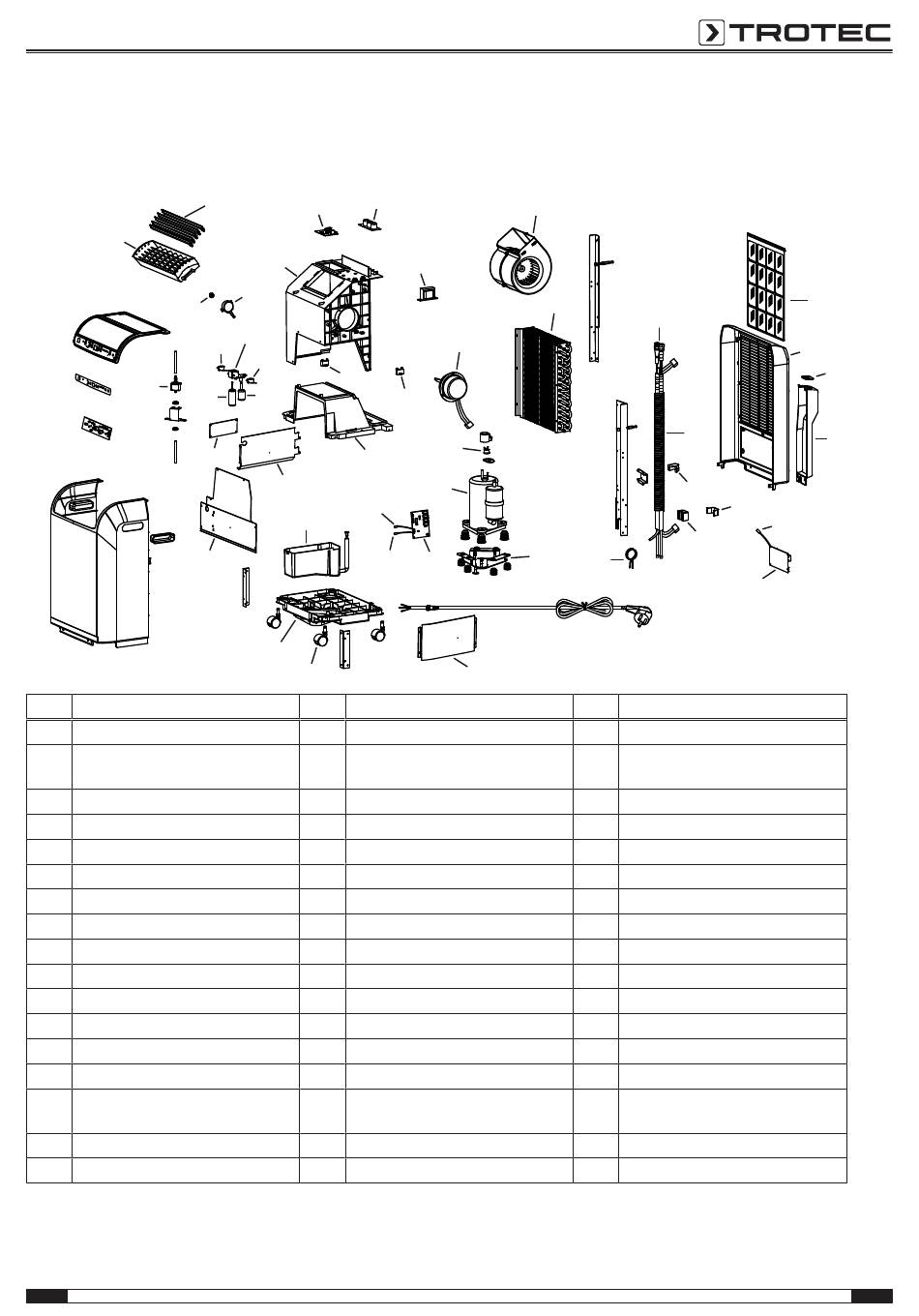

Ersatzteilübersicht und Ersatzteilliste
Hinweis: Die Positionsnummern der Ersatzteile unterscheiden
sich von den in der Bedienungsanleitung verwendeten
Positionsnummern der Bauteile.
6
8
5
15
4 12
3
2
18
1
No. Part Name
1 Front wall
2 Recessed handle
3 Keypad circuit board
4 Keypad film
5 Upper cover
6 Discharge grille
7 Air-guide lamellae
8 Coupling for swing motor
9 Swing motor for lamellae
10 Holder for microswitch
11 Microswitch for pump
12 Float for pump
13 Microswitch (water tank full)
14 Float (water tank full)
15 Condensate pump
16 Sound absorption mat
17 Inner sound absorption sheet metal
DE
32
7
31
30
9
10
11
13
28
14
16
26
17
25
19
20
21
No. Part Name
18 Front sound absorption sheet metal
19 Condensation tank
20 Device base
21 Wheel
22 Right sound absorption sheet metal
23 Mainboard
24 Sensor for room temperature
25 Sensor for evaporator
26 Separating wall
27 Condenser (condenser fan)
28 Condenser (evaporator fan)
29 Choking coil
30 Fan casing
31 IPM protective circuit board
32 Condenser circuit board
33 Evaporator fan (compl.)
34 Evaporator
Innengerät:
33
29
34
35
27
36
37
38
24
23
22
Lokales Klimagerät PAC 4600
44
43
42
41
40
39
50
No. Part Name
35 Fan motor, evaporator
36 Overheating protection for
compressor
37 Compressor (compl.)
38 Bottom plates (compl.)
39 Capillary tube
40 Seal for fastening clip
41 Fastening clip for pipe
42 Sheathing for fastening clip
43 Connection line
44 Coupling set
45 Air circulation filter
46 Rear wall
47 Feed-through for connecting line
48 Cover for connecting line
49 Sensor for compressor discharge
temperature
50 Control circuit board
45
46
47
48
49
23
