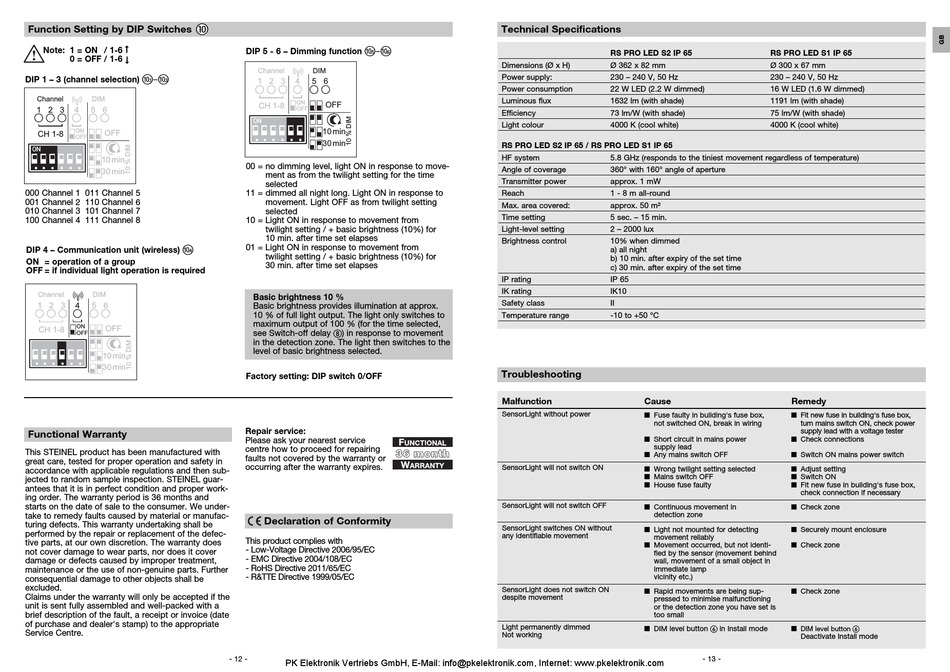

Function Setting by DIP Switches
Note: 1 = ON / 1-6
0 = OFF / 1-6
k
k
-
10
10
DIP 1 – 3 (channel selection)
.1
.3
Channel
DIM
1
2
3
4
5
6
ON
OFF
CH 1-8
OFF
10 min
4 4 4
4 4 4
30 min
000 Channel 1 011 Channel 5
001 Channel 2 110 Channel 6
010 Channel 3 101 Channel 7
100 Channel 4 111 Channel 8
k
10
DIP 4 – Communication unit (wireless)
.4
ON = operation of a group
OFF = if individual light operation is required
Channel
DIM
1
2
3
4
5
6
ON
OFF
CH 1-8
OFF
10 min
4 4 4
4 4 4
30 min
Functional Warranty
This STEINEL product has been manufactured with
great care, tested for proper operation and safety in
accordance with applicable regulations and then sub-
jected to random sample inspection. STEINEL guar-
antees that it is in perfect condition and proper work-
ing order. The warranty period is 36 months and
starts on the date of sale to the consumer. We under-
take to remedy faults caused by material or manufac-
turing defects. This warranty undertaking shall be
performed by the repair or replacement of the defec-
tive parts, at our own discretion. The warranty does
not cover damage to wear parts, nor does it cover
damage or defects caused by improper treatment,
maintenance or the use of non-genuine parts. Further
consequential damage to other objects shall be
excluded.
Claims under the warranty will only be accepted if the
unit is sent fully assembled and well-packed with a
brief description of the fault, a receipt or invoice (date
of purchase and dealer's stamp) to the appropriate
Service Centre.
k
k
-
10
10
DIP 5 - 6 – Dimming function
.5
.6
Channel
DIM
1
2
3
4
5
6
ON
OFF
CH 1-8
OFF
10 min
4 4 4
4 4 4
30 min
00 = no dimming level, light ON in response to move-
ment as from the twilight setting for the time
selected
11 = dimmed all night long. Light ON in response to
movement. Light OFF as from twilight setting
selected
10 = Light ON in response to movement from
twilight setting / + basic brightness (10%) for
10 min. after time set elapses
01 = Light ON in response to movement from
twilight setting / + basic brightness (10%) for
30 min. after time set elapses
Basic brightness 10 %
Basic brightness provides illumination at approx.
10 % of full light output. The light only switches to
maximum output of 100 % (for the time selected,
see Switch-off delay
) in response to movement
in the detection zone. The light then switches to the
level of basic brightness selected.
Factory setting: DIP switch 0/OFF
Repair service:
Please ask your nearest service
centre how to proceed for repairing
faults not covered by the warranty or
occurring after the warranty expires.
Declaration of Conformity
This product complies with
- Low-Voltage Directive 2006/95/EC
- EMC Directive 2004/108/EC
- RoHS Directive 2011/65/EC
- R&TTE Directive 1999/05/EC
- 12 -
PK Elektronik Vertriebs GmbH, E-Mail: info@pkelektronik.com, Internet: www.pkelektronik.com
Technical Specifications
RS PRO LED S2 IP 65
Dimensions (Ø x H)
Ø 362 x 82 mm
Power supply:
230 – 240 V, 50 Hz
Power consumption
22 W LED (2.2 W dimmed)
Luminous flux
1632 lm (with shade)
Efficiency
73 lm/W (with shade)
Light colour
4000 K (cool white)
RS PRO LED S2 IP 65 / RS PRO LED S1 IP 65
HF system
5.8 GHz (responds to the tiniest movement regardless of temperature)
Angle of coverage
360° with 160° angle of aperture
Transmitter power
approx. 1 mW
Reach
1 - 8 m all-round
Max. area covered:
approx. 50 m²
Time setting
5 sec. – 15 min.
Light-level setting
2 – 2000 lux
Brightness control
10% when dimmed
a) all night
b) 10 min. after expiry of the set time
c) 30 min. after expiry of the set time
IP rating
IP 65
IK rating
IK10
Safety class
II
Temperature range
-10 to +50 °C
Troubleshooting
Malfunction
Cause
SensorLight without power
Fuse faulty in building's fuse box,
not switched ON, break in wiring
Short circuit in mains power
supply lead
Any mains switch OFF
SensorLight will not switch ON
Wrong twilight setting selected
Mains switch OFF
House fuse faulty
SensorLight will not switch OFF
Continuous movement in
detection zone
SensorLight switches ON without
Light not mounted for detecting
any identifiable movement
movement reliably
Movement occurred, but not identi-
fied by the sensor (movement behind
wall, movement of a small object in
immediate lamp
vicinity etc.)
SensorLight does not switch ON
Rapid movements are being sup-
despite movement
pressed to minimise malfunctioning
or the detection zone you have set is
too small
Light permanently dimmed
DIM level button
Not working
RS PRO LED S1 IP 65
Ø 300 x 67 mm
230 – 240 V, 50 Hz
16 W LED (1.6 W dimmed)
1191 lm (with shade)
75 lm/W (with shade)
4000 K (cool white)
Remedy
Fit new fuse in building's fuse box,
turn mains switch ON, check power
supply lead with a voltage tester
Check connections
Switch ON mains power switch
Adjust setting
Switch ON
Fit new fuse in building's fuse box,
check connection if necessary
Check zone
Securely mount enclosure
Check zone
Check zone
in Install mode
DIM level button
Deactivate Install mode
- 13 -
