Extremis MARINA TABLE Montageanleitung Seite 3

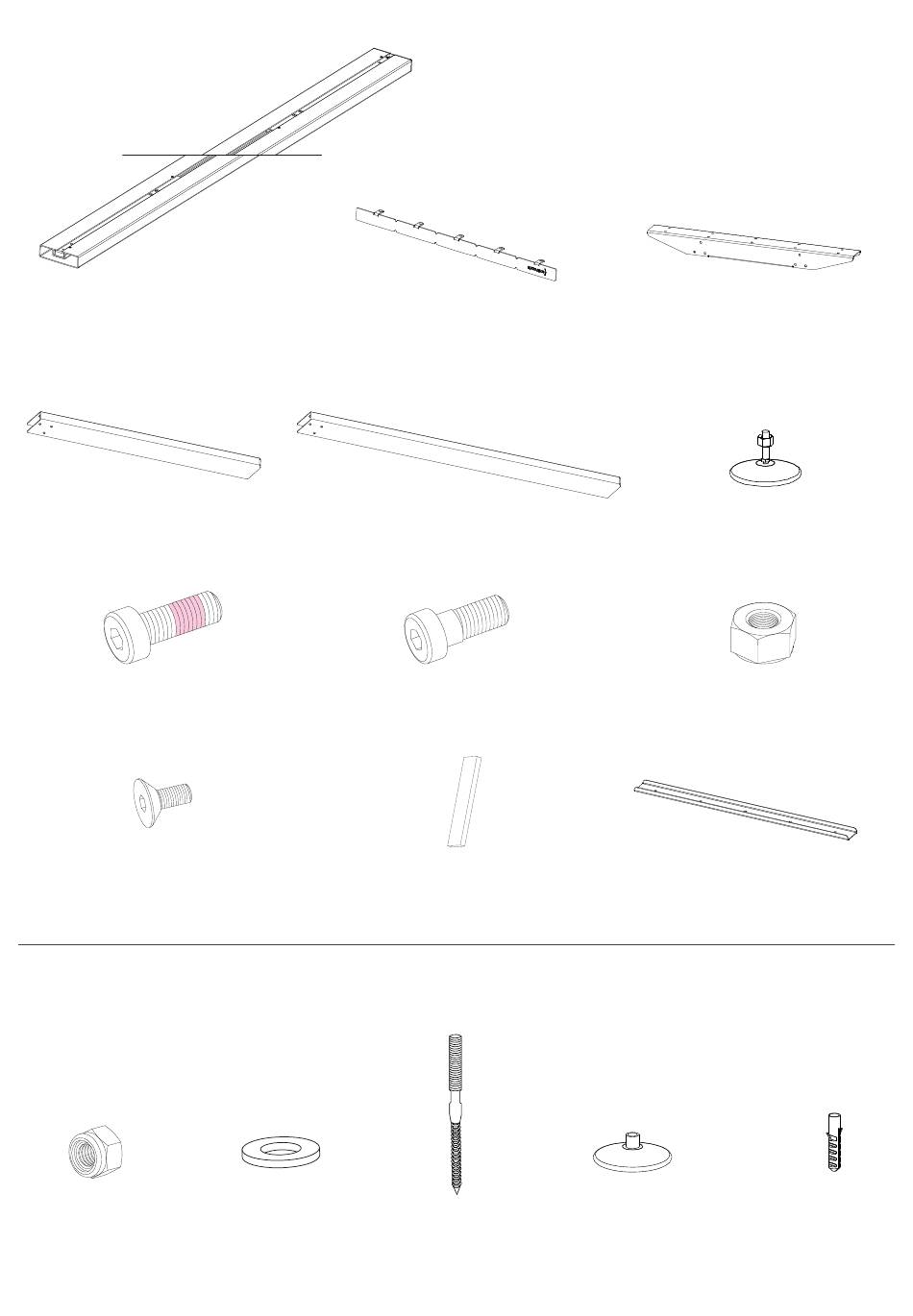

CONTENTS
5/6 x profiles
2 x N x table leg
10/12 x N x M6x20 hexagon socket bolt
10/12 x M5x12 countersunk bolt
OPTIONAL
FLOOR FASTENING
2 x N x M8 nut
2 x tabletop end piece
or 2 x N x table leg long
12 x N x M6x16 hexagon socket bolt
2 x N x M8 plain
washer
10 x spacer
2 x N x M8x100
dowel screw
N = number of legs
- length between 1,95m - 4,05m = 2 legs
- length between 4,75m - 7,55m = 3 legs
- length between 8,25m - 11,05m = 4 legs
- length 11,75m = 5 legs
N x tabletop connection
2 x N x adjustable foot with M10 nut
12 x N x M6 lock nut
N - 1 x reinforcement profile
(if distance between legs is greater
than about 2300 mm)
2 x N x foot 2 x N x plug 12x60
english 3
