1. Left key (<) or Previous value
2. Menu or Enter key
3. Right key (>) or Next value
4. 7 character multipurpose information field
5. Alarm indicator
6. Selected battery input indicator
7. Value section for SoC (also for Function, Status and History parameter numbers)
8. State of Charge (SoC) bar. The five segment 0 – 100% grid will show an animation when there
is a charge current (turning clockwise) or a discharge current (turning counter clockwise). The
animation speed will also increase when the charge or discharge current increases.
1.6

Active shunt status indicator

The connection and installation details of the active shunt are already explained in the installation
guide. However, the active shunt is also equipped with a smart status indicator light that deserves

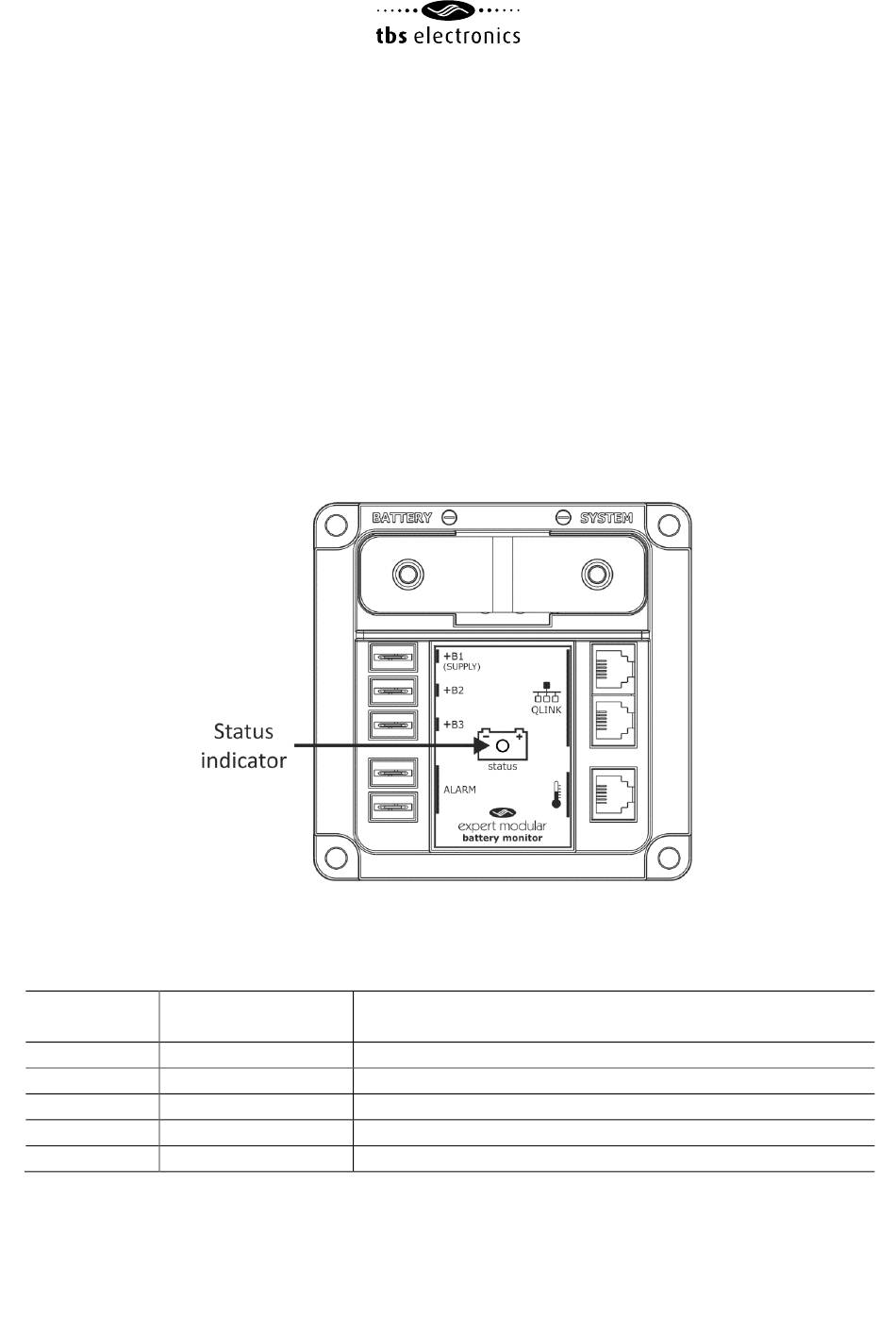

special attention. Please see the image below for the location of the status indicator:
The status indicator has multiple operating modes, distinguished each by colour or flash interval.
Please see the table below for an overview of the operating modes:
Table 1
Status colour
Green
Orange
Red
Red
Orange
1)
Status flash interval times are 2 seconds for 'Slow' and 0.5 seconds for 'Fast'
Status flash
1)
interval
Slow
Slow
Slow
Fast
Fast
Main battery healthy (SoC > 50%)
Main battery needs to be recharged (SoC = 30 – 50%)
Main battery empty, recharge now (SoC < 30 %)
9
Description
Error
Initializing
